PFAS-Free Water & Oil Barrier Rotary Spin Coating Line with Fully Customizable Station Count and Integrated Drying Profile for Pulp Molding Coating Machine

• Molded pulp tableware — plates, bowls, trays, clamshells, and cup carriers requiring water/oil barrier protection
• Food service packaging — lunch boxes, soup containers, and fresh food trays
• Industrial molded pulp — egg trays and electronics cushioning (with anti-static or protective coatings)
• Agricultural products — seedling pots and horticultural trays with biodegradable barrier coatings
• Customizable for — medical device trays, cosmetics inserts, and specialty packaging

All models support full customization to match your production requirements:

• Station count — 4, 6, 8, 12, 16, 24, 32, or 48 stations
• Fixture / chuck design — custom-machined nests for specific product shapes; vacuum-assisted or mechanical clamping
• Spin profiles — independent speed, acceleration, and dwell time per station

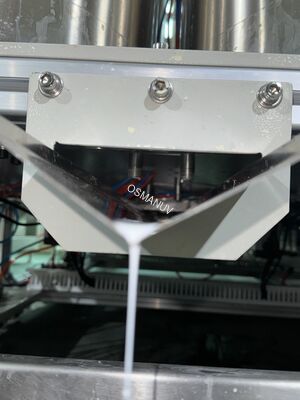

• Coating compatibility — pump type (peristaltic, syringe, diaphragm) matched to coating viscosity and chemistry
• Drying configuration — IR wavelength, UV-LED intensity, hot air zone length and temperature, all customizable
• Layout & footprint — rotary, linear, or L-shaped configurations to fit existing plant space
• Automation level — semi-automatic to fully automatic with robotic loading/unloading
• Safety compliance — CE and UL certification, customizable to target market

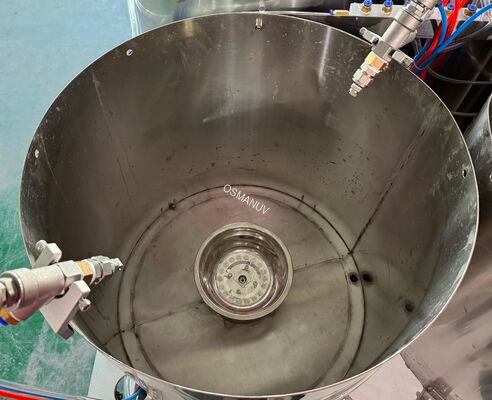

• Uniform coverage on 3D geometries — centrifugal spin coating reaches corners and sidewalls that spray methods miss
• High material transfer efficiency — greater than 90% transfer efficiency versus spray, reducing coating waste
• PFAS-free compatibility — engineered to handle bio-based and water-dispersible barrier coatings without fluorochemicals
• Integrated drying — immediate curing after coating, eliminating transfer steps
• Independent station control — each station can run different recipes for multi-product production
• Recipe storage — 200+ recipes on HMI for fast product changeover
• Clean operation — enclosed coating chamber with exhaust and filtration
• Data logging — production monitoring, traceability, and reporting

• 12–24 months warranty (extendable based on model)
• Process consulting — coating compatibility assessment and parameter optimization
• Installation & commissioning — on-site or remote supervision
• Remote troubleshooting — via WhatsApp, Teams, or video call
• Spare parts supply — stocked for 7+ years
• Operator training — included for industrial orders
• Customization engineering support — CAD drawings and PLC code adjustment included
• Sample coating service — send us your pulp products and target coating material; we provide coated samples and a process report
