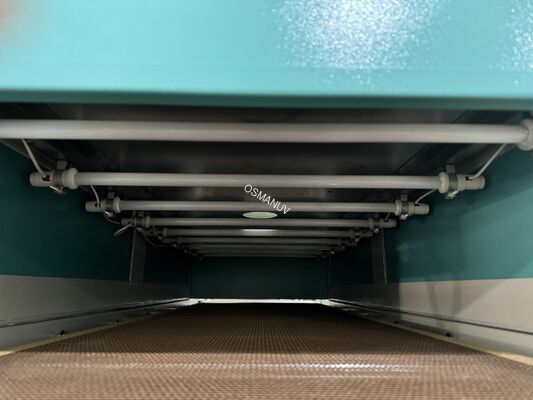

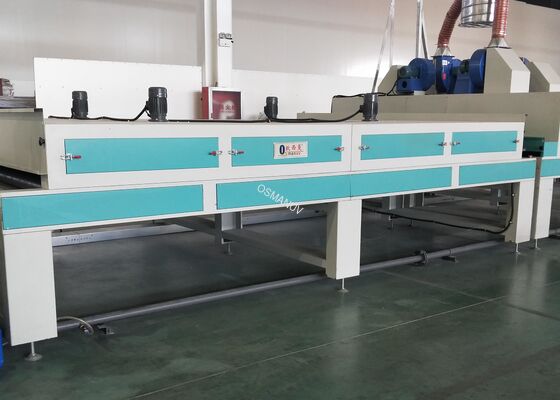

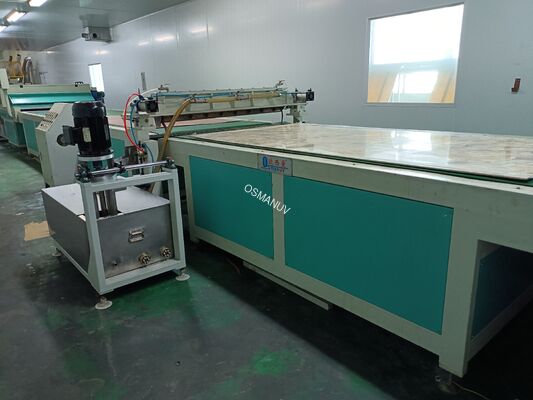

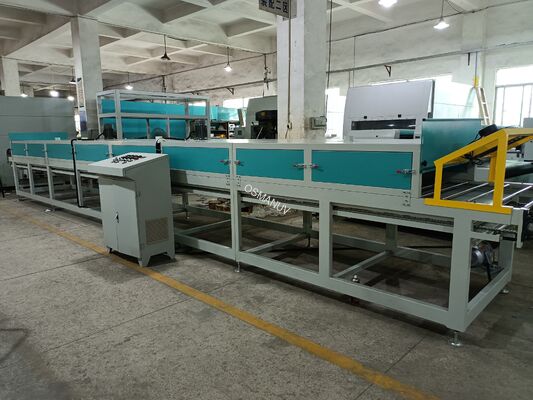

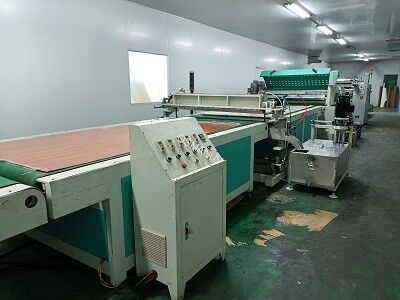

High-Capacity Infrared Drying Machine for Pulp Molding with Customizable Conveyor Width and Energy-Efficient Operation

This advanced infrared drying machine is specifically engineered for the pulp molding industry, utilizing infrared radiation to rapidly and uniformly remove moisture from molded pulp products. Unlike conventional hot air drying that relies on convection and heats from the surface inward, this system delivers direct radiant heating, where infrared energy is absorbed by water molecules and pulp fibers, generating heat from within the material. This results in significantly faster drying times (reduced by 20-35%), lower energy consumption, and more uniform moisture removal.

• Rapid Radiant Heating: Infrared energy penetrates the material and generates heat directly inside the product, eliminating the risk of case hardening and ensuring consistent moisture distribution
• Energy-Efficient Operation: Direct energy transfer to water molecules achieves thermal efficiency far superior to traditional convection drying methods, saving up to 25-45% of electricity compared to conventional hot air drying
• Clean & Eco-Friendly: No combustion, no emissions, and no pollution – fully aligned with sustainable manufacturing principles
• Compact & Modular Design: The system features a modular structure that can be easily integrated into existing production lines or configured as a standalone drying station

• Molded Pulp Tableware: Drying plates, bowls, trays, clamshell boxes, and cup carriers – rapid and uniform drying without case hardening
• Industrial Pulp Packaging: Drying egg trays, fruit trays, electronic cushioning pads, and industrial corner protectors
• Agricultural Products: Drying seedling pots, horticultural trays, and biodegradable planting containers
• Premium Molded Products: Drying medical device trays, cosmetic packaging inserts, and custom-shaped containers requiring precise moisture control
• High-Volume Production Lines: Continuous drying for large-scale manufacturing where production flexibility and energy efficiency are critical

• Wavelength Selection: Customizable infrared wavelength (short/medium/long wave) to match different material characteristics and moisture content
• Power Configuration: Customizable heating power (20kW - 250kW) and number of IR modules to match your production capacity targets
• Tunnel Length & Layout: Fully customizable drying tunnel length (6m - 30m) and layout to fit your production floor space and line integration
• Conveyor Width & Speed: Customizable effective width (600mm - 1,320mm) and speed profiles (0.5 - 20 m/min) for different product sizes and drying requirements
• Temperature Zone Control: Customizable number of independent temperature zones (2 - 10 zones) for precise drying profile adjustment
• Material Handling: Customizable infeed and outfeed configurations, including robotic loading/unloading integration
• Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP) to sync with your master PLC or MES system

• Rapid & Uniform Drying: Direct radiant heating from within ensures fast drying with consistent moisture distribution – prevents surface hardening and cracking
• Significant Energy Savings: Up to 25-45% lower energy consumption compared to conventional hot air drying methods – drastically reduces OPEX
• Space-Saving Design: Compact modular footprint compared to conventional hot air drying tunnels – efficient use of factory floor space
• Quick Start-Up & Shut-Down: Instant on/off control with no preheating required – eliminates idle energy waste
• Precision Control: Real-time moisture monitoring and feedback control ensure consistent product quality
• Low Maintenance: Durable IR emitter design with long service life – reduced maintenance costs
• Safe Operation: Comprehensive over-temperature protection and safety interlocks – fully compliant with international safety standards
• Flexible Integration: Modular design allows for easy integration into existing production lines or standalone operation

• Comprehensive pre-installation site assessment and layout planning
• Professional on-site installation, commissioning, and calibration
• Thorough operator training and maintenance instruction
• 12-month standard warranty on the entire system
• Lifetime remote technical support and online diagnostics
• Preventive maintenance plans and global spare parts network
• Customized drying process optimization and technical consultation

• IR emitter modules shipped in shock-resistant, moisture-proof foam crates
• Entire system modularized and packed in heavy-duty, weatherproof wooden crates
• Special anti-static packaging for electronic and control components
• All shipments include detailed documentation and can be arranged via air or sea based on your requirements
