Experimental Spin Coating Equipment for Pulp Molding with Customizable Station Configuration, Rapid Sample Prototyping & High-Speed Centrifugal Spin Coating

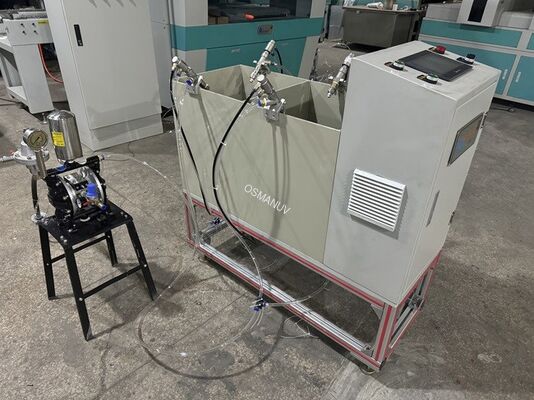

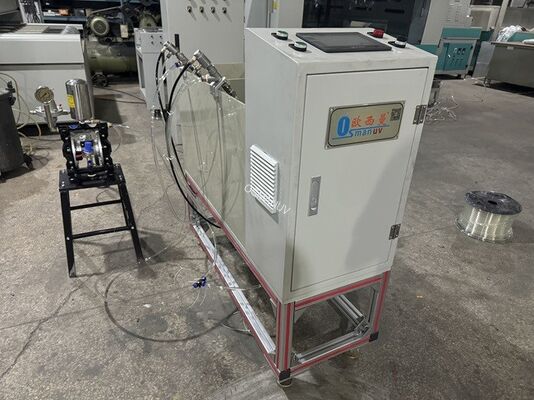

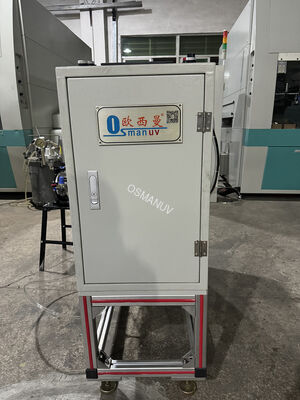

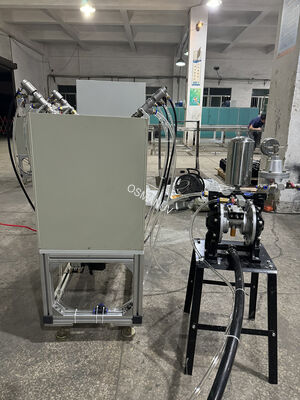

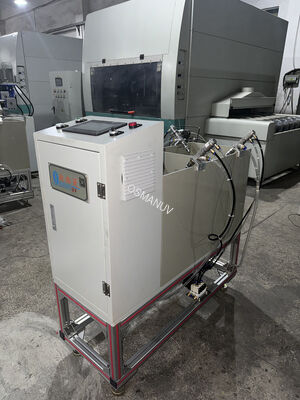

Large Image : Experimental Spin Coating Equipment for Pulp Molding with Customizable Station Configuration, Rapid Sample Prototyping & High-Speed Centrifugal Spin Coating

Product Details:

Place of Origin:	CHINA
Brand Name:	OSMANUV
Certification:	ISO9001
Model Number:	Specification

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wood Packaging
Delivery Time:	30 Working Days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

Experimental Spin Coating Equipment for Pulp Molding with Customizable Station Configuration, Rapid Sample Prototyping & High-Speed Centrifugal Spin Coating

Description

Condition:	New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation
Dimension(lwh):	Customized Size	Type:	Coating Machine
Automatic Grade:	Automatic,Semi-Automatic,manual,Other	Driven Type:	Electric,Other,Mechanical
Packaging Material:	Wood	Warranty:	1 Year
Highlight:	Customizable Station Configuration Spin Coating Equipment , Rapid Sample Prototyping Pulp Molding Coating Machine , High-Speed Centrifugal Spin Coating Experimental Spin Coater

Experimental Spin Coating Equipment for Pulp Molding with Customizable Station Configuration, Rapid Sample Prototyping & High-Speed Centrifugal Spin Coating

Customizable Station Configuration & Rapid Sample Prototyping

Product Overview

This experimental spin coating equipment is specifically designed for the pulp molding industry, ideal for laboratory R&D, small-batch sample testing, and process optimization. Using high-speed centrifugal spin coating technology, it applies uniform functional coatings—waterproof, oil-proof, and biodegradable barrier coatings—onto molded pulp samples such as plates, bowls, trays, and custom-shaped containers.

Key Capabilities

Precision Spin Coating: Achieves uniform coating coverage on complex 3D sample geometries with ±5% thickness uniformity
Coating Recovery System: Collects and recycles excess coating with ≥90% utilization rate, reducing R&D costs
Compact & Flexible: Small footprint ideal for laboratory environments with quick changeover between samples
Simple Operation: User-friendly HMI with recipe storage for easy parameter adjustment and repeatable results

Production Line Composition

Component	Description
Sample Loading Station	Manual or semi-automatic loading for small-batch samples
Spin Coating Unit	Single or multi-station high-speed centrifugal spin coater with independent speed control
Precision Dosing System	Metering pump for accurate coating application
Coating Recovery System	Collects and recycles excess coating material
Drying Unit	IR / UV-LED / Hot Air drying (customizable)
PLC Control Cabinet	Industrial PC with HMI touchscreen, recipe storage, and data logging
Exhaust & Filtration System	Captures solvent vapors and ensures clean lab environment

Technical Parameters

Parameter	Specification	Customization Options
Number of Stations	1 station (standard)	Customizable (1 - 2 stations)
Spin Speed	Adjustable, up to 2,500 rpm	Customizable speed profiles
Coating Thickness	5 - 50 μm (dry)	Customizable coating weight
Coating Uniformity	±5% thickness deviation	Customizable process parameters
Sample Size	Up to 350mm × 350mm	Customizable fixture design
Production Capacity	20 - 60 pcs/hour (lab scale)	Customizable per R&D requirements
Coating Recovery Rate	≥ 90%	Customizable recovery system
Data Logging	USB, Ethernet/IP, Modbus	Reporting formats customizable
Power Supply	220V / 380V, 50/60Hz, single/3-phase	Customizable to regional standards
Overall Dimensions	1.5m - 3m × 1.0m - 1.5m × 1.5m - 2.0m	Layout and footprint fully customizable
Safety Standards	CE, UL (optional)	Customizable to target market

Applications

Molded Pulp Tableware R&D: Waterproof and oil-proof barriers on plates, bowls, trays, and clamshell boxes
Industrial Pulp Packaging R&D: Protective and anti-static coatings on egg trays, fruit trays, and electronic cushioning pads
Agricultural Products R&D: Biodegradable barrier coatings on seedling pots and horticultural trays
Premium Molded Products R&D: Aesthetic and functional coatings on medical device trays and cosmetic packaging
Process Optimization: Rapid prototyping and parameter optimization for pilot-scale and mass production lines

Customization Options

Station Configuration: Customizable number of stations (1 - 4) and layout
Spin Speed & Coating Thickness: Customizable parameters for different sample requirements
Drying System: Customizable method (IR / UV-LED / Hot Air) and temperature profiles
Sample Fixtures: Customizable design for various sample shapes and sizes
Coating Recovery System: Customizable recovery rate and collection design
Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP)

Support and Services

Comprehensive pre-installation site assessment and layout planning
Professional on-site installation, commissioning, and calibration
Thorough operator training and maintenance instruction
Lifetime remote technical support and online diagnostics
Preventive maintenance plans and global spare parts network
Coating process optimization and technical consultation
Sample testing and formulation development support

Packing and Shipping

Precision components shipped in shock-resistant, moisture-proof foam crates
Entire system modularized and packed in heavy-duty, weatherproof wooden crates
Detailed documentation included with all shipments
Air or sea shipping arrangements available based on requirements

Frequently Asked Questions

Is this equipment suitable for laboratory use?

Yes. This experimental spin coating equipment is specifically designed for R&D and small-batch sample testing. Its compact design, simple operation, and coating recovery system make it ideal for laboratory environments.

Can the coating material be reused?

Yes. The system is equipped with a coating recovery system that collects and recycles excess coating material, achieving a recovery rate of ≥90%. This significantly reduces R&D costs and material waste.

Can the system handle various sample sizes and shapes?

Yes. The system features customizable sample fixtures, spin speed, coating thickness, and drying profiles. It can accommodate a wide range of molded pulp sample shapes and sizes.

How much floor space does the system require?

The system layout is fully customizable. Its compact design requires minimal floor space, making it suitable for laboratory environments with limited space.

What are the total operating costs?

Operating costs are optimized through high material utilization (≥90% coating recovery) and low energy consumption. Coating material and electricity are the primary operating costs. We can provide a detailed cost analysis based on your specific R&D requirements.
