24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying

24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying
24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying
24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying 24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying 24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying 24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying 24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying 24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying

Large Image :  24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wood Packaging
Delivery Time: 30 Working Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

24-Station Spin Coating Line for Pulp Molding with Customizable Speed and Integrated Drying

Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation
Dimension(l*w*h): Customized Size Type: Coating Machine
Automatic Grade: Automatic,Semi-Automatic,manual,Other Driven Type: Electric,Other,Mechanical
Warranty: 1 Year,one Year,12 Months Coating Speed: Adjustable
Highlight:

24-Station Spin Coating Line

,

Customizable Speed Pulp Molding Coating Machine

,

Integrated Drying Rotary Spin Coating System

High-Throughput 24-Station Spin Coating Line for Pulp Molding

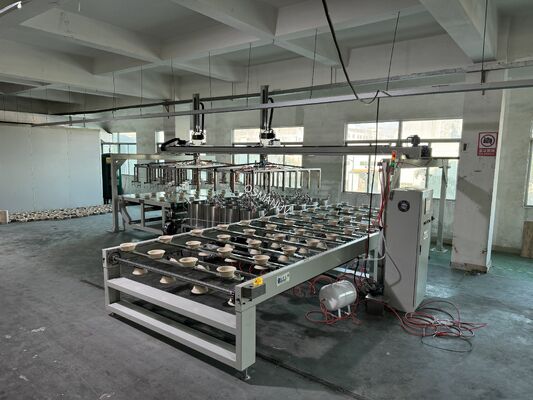

This advanced 24-station rotary spin coating production line is specifically engineered for the pulp molding industry, utilizing high-speed centrifugal spin coating technology to apply uniform functional coatings—waterproof, oil-proof, and biodegradable barrier coatings—onto molded pulp products such as tableware, food containers, and industrial packaging. The system combines precision dosing, high-speed spin coating, and integrated drying in a single continuous production flow.
Key Advantages
  • Precision Spin Coating: 24 independent stations ensure uniform coating coverage on complex 3D geometries with ±5% thickness uniformity
  • High Throughput: Continuous production capacity up to 1,200 pieces per hour
  • Integrated Drying: IR or UV-LED drying tunnel enables immediate curing without additional transfer steps
  • Clean & Eco-Friendly: Enclosed coating chamber with exhaust and filtration system ensures environmental compliance
Production Line Composition
Component Description
Infeed Conveyor System Automatic feeding with speed control and alignment mechanism
24-Station Rotary Indexing Table Servo-driven rotary table with 24 independent spin coating stations (customizable)
Precision Dosing System Metering pumps for accurate coating material application

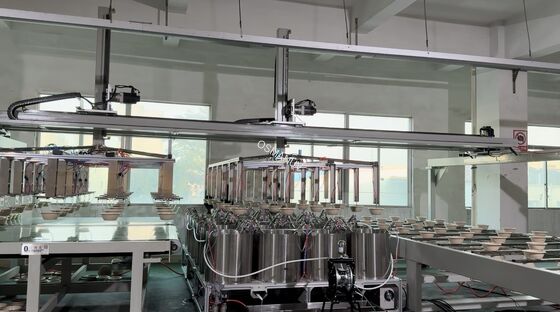

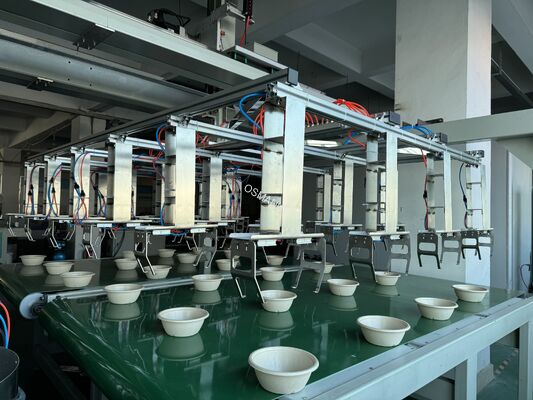

Spin Coating Stations High-speed centrifugal spin units with independent speed control
Coating Supply System Precision metering pumps, pressure tanks, and filtration units

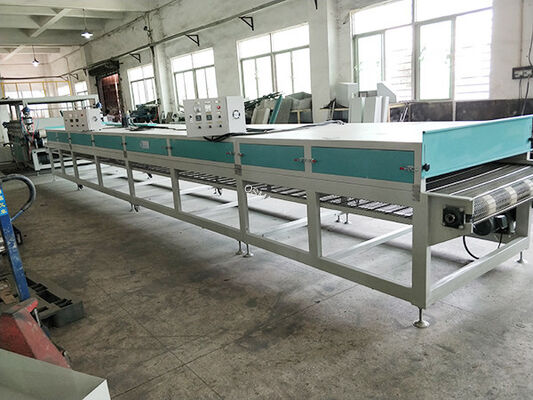

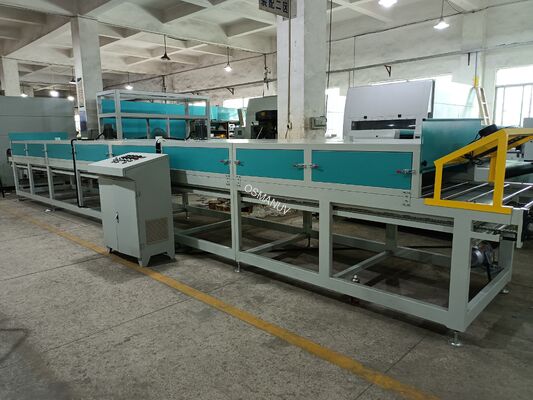

Drying Tunnel IR / UV-LED / Hot Air drying system (customizable)
Exhaust & Filtration System Overspray capture and solvent vapor filtration
PLC Control Cabinet Industrial PC with HMI touchscreen, recipe storage, and data logging
Outfeed Conveyor Automatic transfer to next station or stacking unit
Technical Specifications
Parameter Specification Customization Options
Number of Stations 24 stations (standard) Customizable (12, 16, 24 stations)
Rotary Table Drive Servo-driven, high-precision indexing Customizable indexing speed
Spin Speed Adjustable, up to 2,500 rpm Independent speed control per station
Coating Thickness 5 - 50 μm (dry) Customizable coating weight
Coating Uniformity ±5% thickness deviation Customizable process parameters
Production Capacity 300 - 1,200 pcs/hour Customizable per production targets
Conveyor Speed 1 - 20 m/min (stepless) Customizable via VFD control
Drying Method IR / UV-LED / Hot Air Customizable drying system
Drying Temperature 40°C - 180°C Customizable temperature profiles
Control System Omron PLC + HMI Integration protocols customizable
Power Supply 380V / 200V, 50Hz, 3-phase Customizable to regional standards
Overall Dimensions 8m - 30m * 1.5m - 2.5m * 1.8m - 2.5m Layout and footprint fully customizable
Applications
  • Molded Pulp Tableware: Waterproof and oil-proof barriers on plates, bowls, trays, clamshell boxes, and cup carriers
  • Industrial Pulp Packaging: Protective and anti-static coatings on egg trays, fruit trays, electronic cushioning pads, and industrial corner protectors
  • Agricultural Products: Biodegradable barrier coatings on seedling pots, horticultural trays, and planting containers
  • Premium Molded Products: Aesthetic and functional coatings on medical device trays, cosmetic packaging inserts, and custom-shaped containers
  • High-Volume Production Lines: Continuous spin coating for large-scale manufacturing requiring production flexibility and coating quality
Customization Options
  • Station Configuration: Customizable number of stations (12, 16, 24) and layout to match output targets
  • Spin Speed & Coating Thickness: Customizable spin speed (up to 2,500 rpm) and coating thickness (5 - 50 μm)
  • Drying System: Customizable drying method (IR / UV-LED / Hot Air) and temperature profiles
  • Conveyor Speed & Configuration: Customizable speed profiles (1 - 20 m/min) and conveyor layout
  • Material Handling: Customizable infeed and outfeed configurations, including robotic loading/unloading integration
  • Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP)
  • Enclosure & Exhaust: Customizable booth dimensions and exhaust capacity for factory layout compatibility
Support and Services
  • Comprehensive pre-installation site assessment and layout planning
  • Professional on-site installation, commissioning, and calibration
  • Thorough operator training and maintenance instruction
  • 12-month standard warranty on entire system (extendable)
  • Lifetime remote technical support and online diagnostics
  • Preventive maintenance plans and global spare parts network
  • Coating process optimization and technical consultation
  • Spin coating unit maintenance and repair services
Packing and Shipping
  • Precision dosing pumps and spin coating units shipped in shock-resistant, moisture-proof foam crates
  • Entire system modularized and packed in heavy-duty, weatherproof wooden crates
  • Special anti-static packaging for electronic and control components
  • All shipments include detailed documentation and can be arranged via air or sea based on requirements
Frequently Asked Questions
Is spin coating suitable for pulp molding products?
Yes. Spin coating is ideal for applying uniform functional coatings on complex 3D molded pulp products. The system is designed with precision dosing and high-speed spin coating units to ensure complete coverage on corners, sidewalls, and curved surfaces. Fully compliant with CE and other international standards.
How does spin coating compare to other coating methods?
Spin coating offers excellent coverage on complex 3D geometries with precise thickness control, making it ideal for molded pulp products with intricate shapes. It provides customizable coating thickness and is compatible with a wide range of coating formulations. Compared to spray coating, spin coating offers better material utilization and less overspray.
Can the system handle various product sizes and coating requirements?
Yes. The system features customizable station configuration, spin speed, coating thickness, and drying profiles. Real-time monitoring allows dynamic adjustment, ensuring optimal coating quality for different products.
How much floor space does the system require?
The system layout is fully customizable. Depending on your production capacity and available floor space, we can design a compact or expanded configuration to best suit your needs.
What are the total operating costs?
Overall operating costs are optimized through high material utilization, reduced coating waste, and integrated drying. Coating material and electricity are the primary operating costs. We can provide a detailed cost analysis based on your specific production parameters.
