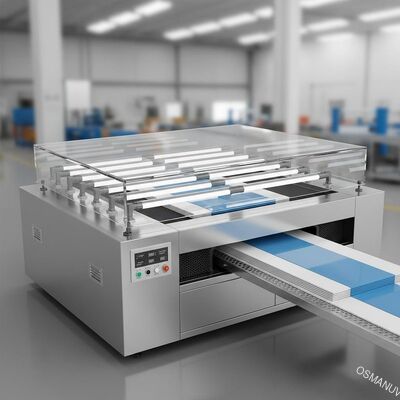

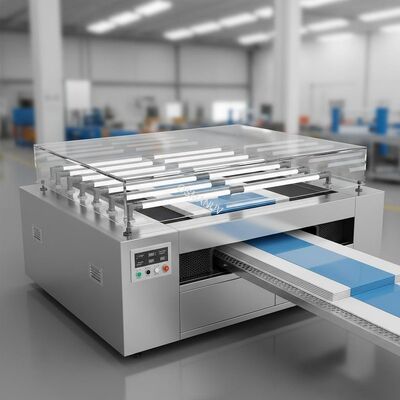

Flatbed Short-Wave Infrared Curing Oven for Water-Based Coatings – Batch & Sheet Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-IR-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~40 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Material: | Stainless Steel | Machine Dimensions: | Customizable (e.g., Length X Width X Height In Meters) |
|---|---|---|---|
| Air Temperature: | 0-200℃ | Drying Method: | Infrared Radiation |
| Condition: | New | Band Name: | OSMANUV |
| Energy Efficiency: | High | Heating Method: | Infrared |
| Highlight: | short-wave infrared curing oven,flatbed infrared drying machine,water-based coatings curing oven |
||
Product Description
This flatbed short-wave infrared drying oven is designed for batch processing and laboratory-to-production scale drying of water-based coatings on flat or slightly curved substrates, especially molded pulp sheets, paperboard, wood panels, and composite boards. Short-wave IR penetrates deeper into water-based coatings, driving out moisture rapidly without overheating the core of heat-sensitive pulp materials.
- Fixed or sliding flatbed table (stainless steel or ceramic plate)
- Overhead movable IR lamp array (short-wave or medium-wave, customizable)
- Manual or motorized height adjustment mechanism (0-300 mm stroke)
- Digital timer with programmable intermittent pulsing
- Exhaust hood with variable-speed fan and carbon filter
- Touchscreen controller (store up to 50 recipes)
- Optional vacuum hold-down table for flat sheets
- Optional automatic lamp scanning carriage for uniform exposure
| Parameter | Specification |
|---|---|
| Model | IRF-WB1200 |
| Max. sheet size (L×W) | 1200×1200 mm (customizable up to 2400×1500 mm) |
| Lamp height adjustment | 50-300 mm (motorized, customizable stroke) |
| IR lamp type | Short-wave quartz (optional medium-wave or twin-tube) |
| Total installed power | 4-24 kW (customizable power density) |
| Max. surface temperature | 180°C (pulse-width modulated control) |
| Heating uniformity | ±5°C over full table area |
| Timer range | 1-600 seconds (programmable steps) |
| Exhaust air volume | 200-800 m³/h (adjustable) |
| Power supply | 220V or 380V, 50/60Hz, single/3-phase (customizable) |
| Table material | Stainless steel 304 / optional ceramic plate for even heating |
| Dimensions (L×W×H) | 1500×1500×700 mm (customizable) |
| Weight | 280-550 kg (depending on size) |
- Drying water-based primer and topcoat on flat molded pulp sheets before thermoforming
- Post-printing drying for water-based digital prints on pulp sheets and paperboard
- Batch curing of water-borne varnish on wooden panels and furniture parts
- Laboratory testing and process development for new water-based coating formulations
- Small-lot production for custom printed pulp packaging or promotional items
- Short-wave IR deep penetration - dries thick water-based coatings without surface crusting
- Digital pulse-width modulation (PWM) for precise energy control
- Rapid response - full power in <1 second, cool-down in 5 seconds
- Ceramic reflector plates for uniform energy distribution (customizable)
- Removable lamp cassettes for quick maintenance
- Built-in over-temperature safety cut-off
- Quiet operation (<65 dB) with low air movement - no powder blow-off
- Optional scanning carriage for heating larger sheets beyond lamp array
Fully customizable table size (up to 3000×1500 mm), number and arrangement of IR lamps (2-12 tubes), lamp height stroke (up to 500 mm), programmable pulse sequences (up to 10 steps), and exhaust duct connection. Customizable vacuum hold-down grid for thin paper or pulp sheets. Also customizable safety enclosure with interlock switch for automated production. Optional customizable data logging (temperature vs. time) for ISO compliance.
- Free sample drying test with detailed report
- On-site calibration and operator training (1 day)
- 18-month warranty on IR lamps and solid-state relays
- Lifetime phone and email support
- Spare lamps and quartz tubes stocked for immediate shipment
- Annual maintenance kit available (reflectors, thermocouples)
Packed in a single reinforced plywood crate with shock indicators. Dimensions: custom crated based on table size - typical 1700×1700×900 mm. Gross weight: approx. 350-650 kg. Shipped by sea (LCL) or air freight (expedited option). Includes multilingual manual, calibration certificate, and CE declaration.
