Customizable Multi-Purpose Microwave Drying Production Line for Energy Saving Industrial Sterilization & Dehydration
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | Vacuum Microwave,Vacuum Oven,Tunnel Microwave Red Date Dehydrating Machine,Microwave Honeycomb Cardboard Drying Equipment,Vacuum Drying Equipment For Transformer | Color: | Silver,as You Requests,grey,etc,green |
|---|---|---|---|
| Heating Source: | Microwave Heating,Electricity,microwave Drying,Hot Air | Usage: | Reduce Material's Moisture,industrial Microwave,fruit Drying And Sterilization |
| Installation: | Engineer Guide,Easy,Engineer's Guidance | Microwave Frequency: | 2450MHz,2450±50 MHz |
| Vacuum Degree: | <133Pa,≤10 Pa | ||
Product Description

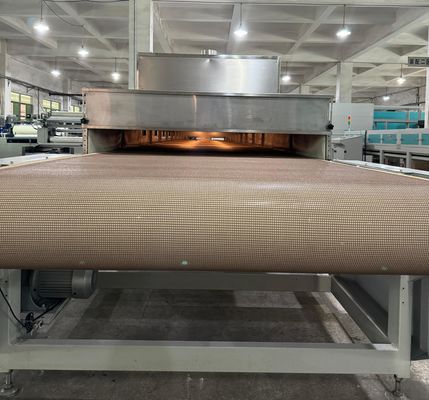

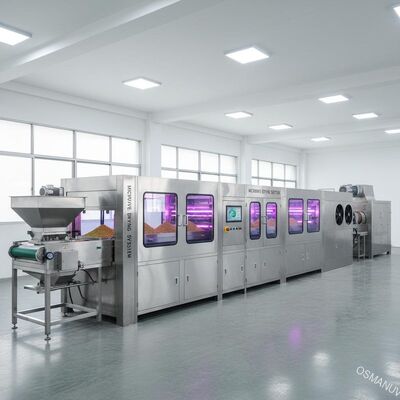

This industrial microwave drying production line uses volumetric heating to dry materials evenly from inside out, significantly reducing drying time compared to conventional hot air drying. Suitable for food, herbs, wood, chemical powders, and ceramic cores. The entire line supports customizable length, belt speed, microwave power (20kW-200kW+), and number of zones.
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Microwave power | 20kW - 200kW | ✔ Up to 500kW |
| Belt width | 500 - 2000 mm | ✔ Custom width |
| Drying temperature | 40°C - 120°C | ✔ 120°C - 200°C |
| Production capacity | 50 - 3000 kg/h | ✔ Depends on material |
| Number of heating zones | 2 - 8 zones | ✔ Up to 12 zones |
| Control system | PLC + HMI | ✔ Remote monitoring / IoT |
| Power supply | 380V / 50Hz (3-phase) | ✔ 220V / 60Hz / 415V |
| Microwave leakage | <1 mW/cm² (safe) | ✔ Stricter standard |
- Food industry: drying of nuts, fruit slices, meat jerky, pet food
- Chemical materials: pigments, catalysts, ceramic powders
- Wood & bamboo: sterilization and drying
- Agricultural products: garlic slices, mushroom, spices
All applications support customizable inlet moisture content and target final moisture.
- Line layout (straight / L-shape / split modules)
- Belt material (PTFE / mesh / ceramic rollers)
- Microwave power per zone
- Explosion-proof design for solvent-based materials
- Vacuum or inert gas drying option
- Automated feeding and packaging integration
- Uniform drying without hot spots
- Energy saving - 30-50% less energy than hot air drying
- Low temperature operation preserves nutrients and color
- Instant on/off - no preheating required
- Small footprint compared to conventional dryers
- Real-time power adjustment per zone
- Free material testing lab report
- On-site installation & commissioning
- Operator training (video or in-person)
- 12-month warranty + lifetime remote technical support
- Spare parts supply (including magnetrons, belts, fuses)
- Packing: Steel frame + anti-rust film + plywood export case (IP54 protection)
- Shipping: FOB/CIF from Shanghai or Ningbo port
- Lead time: 20-35 days based on customization level
- Shipping documents: Commercial invoice, packing list, CE certificate, operation manual
Yes, we can add pre-drying and multi-stage microwave zones - customizable dehydration curve.
One complete production line, with customizable power from 20kW.
No, because low-temperature drying preserves vitamins, color, and active ingredients.
Yes, local or remote training is available - customizable training schedule.
