Compact Programmable IR Drying Oven with Conveyor for Continuous R&D Testing
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-IR-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~40 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Heating Temperature: | 0-200℃ | Type: | Drying Machine |
|---|---|---|---|
| Width: | 400MM | Heatingelementmaterial: | Quartz Or Ceramic |
| Warranty: | 1 Year | Safetyfeatures: | Overheat Protection, Emergency Stop |
| Height: | 1300MM | Heating Method: | Infrared |
| Highlight: | compact programmable IR drying oven,infrared drying machine with conveyor,R&D testing drying oven |
||
Product Description

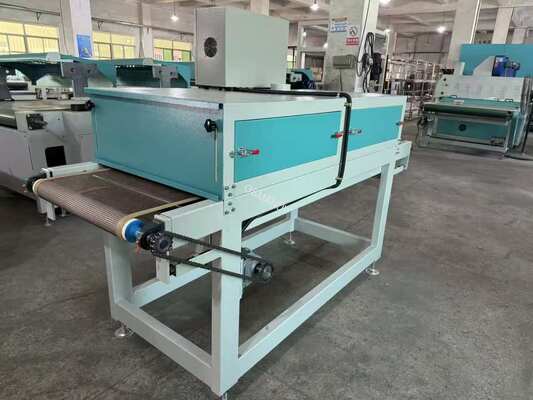

Compact Programmable IR Drying Oven with Conveyor for Continuous R&D Testing
Production Line Composition
This compact continuous R&D line includes:
- Variable-Speed Infeed Conveyor – 200-600 mm width, 0.2-5 m/min speed range
- Interchangeable IR Heating Module – medium-wave or short-wave emitters, quick-swap design
- Multi-Zone Temperature Control – 2-4 independently controlled heating zones
- Adjustable Lamp Height Mechanism – 50-200 mm vertical adjustment per zone
- Exhaust Hood with Variable Speed Fan – moisture removal, temperature feedback
- Outfeed Cooling Conveyor – ambient air cooling section, 0.5-2 m length
- PLC Control System – or , 7″ HMI, 100+ recipe storage
- Data Logging Interface – USB, Ethernet, real-time parameter recording
- Optional Vision Inspection – inline quality check for uniformity
- Mobile Cart with Locking Casters – easy repositioning between lab and pilot line
All product contact parts are SUS304 stainless steel.
Product Overview
This Compact Programmable IR Drying Oven with Conveyor bridges the gap between benchtop batch drying and full-scale production. It is specifically designed for continuous R&D testing, small-batch pilot production, and process validation of pulp molded products including trays, containers, corner protectors, and custom molded fiber shapes.
Unlike batch ovens where each sample is processed individually, this continuous system allows products to be loaded onto a conveyor and passed through the IR heating zone at a controlled speed – exactly simulating production conditions. The variable belt speed (0.2-5 m/min) and adjustable lamp height (50-200 mm) provide independent control over drying time and intensity.
The conveyor can be configured in two modes:
- Single-pass mode – products pass under IR lamps once for continuous production simulation
- Recirculating mode – products return to infeed for multiple passes, ideal for thicker products requiring longer drying
The oven features 2-4 independently controlled heating zones, each with its own IR lamp height adjustment. This allows researchers to create customized drying profiles: for example, high intensity in zone 1 for initial moisture removal, lower intensity in zone 2 for gentle finishing, and cooling in zone 3.
The compact size (approximately 2-3 meters total length) fits in most laboratory spaces while providing realistic continuous drying data for scale-up to full production lines. The entire system is mounted on a mobile cart with locking casters, allowing it to be moved between the R&D lab and pilot production area as needed.
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Conveyor belt width | 200 / 300 / 400 / 600 mm (customizable) |
| Conveyor belt speed | 0.2 - 5 m/min (servo or inverter controlled) |
| Belt material | PTFE mesh / stainless steel mesh / chain (customizable) |
| Number of heating zones | 2 / 3 / 4 zones (customizable) |
| IR lamp type per zone | Medium-wave (2.0-4.0 µm) or Short-wave (0.8-1.4 µm) (customizable) |
| Total IR power | 1 - 8 kW (customizable) |
| Power per zone | 0.5 - 2 kW (independently controlled) |
| Lamp height adjustment | 50 - 200 mm per zone (manual or motorized) |
| Temperature range (zone air) | 40 - 200°C (zone-independent) |
| Conveyor length (total) | 1.5 - 3.5 m (customizable) |
| Heating zone length | 0.5 - 1.5 m (depending on number of zones) |
| Cooling zone length | 0.5 - 1.5 m (optional) |
| Production capacity | 50 - 500 pcs/hour (product-dependent) |
| Control system | or PLC, 7-10″ HMI, 100+ recipes |
| Data logging | USB, Ethernet, real-time parameter recording |
| Power supply | 220V / 380V, 50/60Hz, single or three-phase (customizable) |
| Dimensions (L×W×H) | 2.5×0.8×1.5 m (customizable) |
| Weight | 150 - 400 kg |
| Material | SUS304 stainless steel |
| Safety features | Emergency stop, safety guards, over-temperature protection |
Applications
- Pilot production of small batches (500-5000 pieces) of custom pulp molded products
- Process validation before investing in full-scale production line
- Comparative studies of belt speed vs. drying quality
- Development of drying profiles for new product geometries
- Training and demonstration for customers and operators
- Quality control testing of production samples
- R&D for coating drying on barrier-coated pulp products
Customization Options
Extensive customization for pilot and R&D applications:
Customizable belt width – from 200 mm to 600 mm
Customizable number of heating zones – 2, 3, or 4 zones with independent control
Customizable belt type – PTFE mesh (non-stick), stainless steel mesh (high temp), or chain conveyor (heavy products)
Customizable IR lamp type per zone – mix medium-wave and short-wave in different zones
Customizable conveyor length – add cooling zone, loading station, or stacking unit
Customizable recirculation mode – manual product return or automated recirculating conveyor
Customizable exhaust system – manual damper or variable-speed fan with carbon filter
Customizable control system – basic PLC or advanced with remote access
Customizable data logging – MES integration, cloud reporting, batch traceability
Customizable voltage and frequency – for any global location
Key Features
Continuous operation – simulates production drying conditions at laboratory scale
Variable conveyor speed – 0.2-5 m/min range for precise dwell time control
Multi-zone independent control – create customized drying profiles (high heat → finishing → cooling)
Adjustable lamp height per zone – independent intensity optimization for each stage
Interchangeable IR lamps – swap between medium-wave and short-wave for different products
Compact footprint – 2-3 meter total length, fits in laboratory or pilot plant
Mobile design – locking casters for easy repositioning between lab and production
Real-time data logging – records belt speed, zone temperatures, and power for each batch
Quick changeover – 100+ recipes for instant parameter recall between products
Dual mode operation – single-pass for continuous simulation, recirculating for extended drying
Low operating cost – small scale minimizes material waste during development
Safe operation – full safety guards, emergency stops, over-temp protection
Support & Services
- Lifetime free technical support – phone, email, video call
- On-site installation & commissioning – 2-3 days on-site included
- Operator training – 2-day on-site training on continuous drying operation
- 2-year warranty – on conveyor drive, IR modules, PLC, and all electronics
- Spare parts supply – belts, lamps, and sensors available for immediate shipping
- Process scale-up support – our engineers help transfer R&D profiles to production lines
- Free sample testing – send your products; we provide continuous drying test report
- Remote diagnostics – VPN access for real-time troubleshooting
Packing & Shipping
- Packed in export wooden cases, shipped in modular sections (conveyor sections, oven module, control cabinet)
- Includes: English manual, CE certificate, electrical schematics, calibration certificate, tool kit, spare parts kit
- Shipping: FOB / CIF / DAP by sea, air freight for urgent components
- Lead time: 30 days for standard; 45-60 days for fully customized lines
Frequently Asked Questions
Q1: How does continuous conveyor drying differ from batch drying in R&D?
A1: Continuous drying better simulates production conditions, where products move through a drying tunnel at constant speed. This allows you to study the effect of conveyor speed (dwell time) on final moisture content, develop drying profiles that transfer directly to full-scale lines, and generate more accurate scale-up data than batch experiments.
Q2: Can this oven be configured for recirculating operation (multiple passes)?
A2: Yes. The system can be configured with a manual return conveyor or an automated recirculating loop. Recirculating mode is useful for thicker products that require longer drying times than the single-pass oven length allows. The control system can be programmed to count passes automatically.
Q3: What is the typical production capacity for pilot runs?
A3: Capacity depends on product size, belt width, and speed. For example: 300 mm belt width, 1 m/min speed, and 200 mm product spacing yields approximately 300 pieces per hour. For smaller products (e.g., cup carriers), capacity can exceed 500 pieces per hour.
Q4: Can I use the same oven for different product shapes without changing fixtures?
A4: The open conveyor belt accepts any product shape that fits within the belt width and height clearance. For very small or unstable products, we offer custom product nests that can be placed on the belt. Changeover between nests takes less than 5 minutes.
Q5: How does the multi-zone design improve drying quality?
A5: Different drying stages require different conditions. Zone 1 can use high-intensity short-wave IR for rapid initial moisture removal. Zone 2 can use medium-wave IR at lower power for gentle finishing. Zone 3 can be a cooling section. This graduated approach prevents case-hardening and produces higher quality products.
