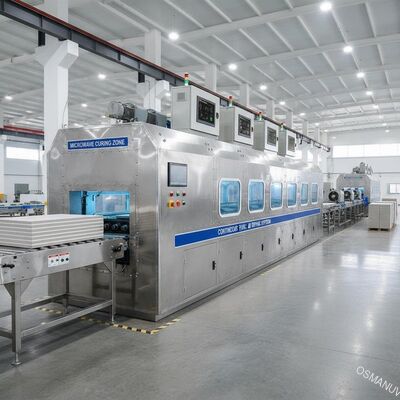

Continuous Microwave Drying Line for Accelerated Curing of Building Panels (Gypsum, Cement Fiber Boards)
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-HG-1320 |
| Document: | microwave drying equipment.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Box Quantity: | 9 Units | Dryingmethod: | Microwave Vacuum Drying |
|---|---|---|---|
| Situation: | Conveyor Belt | Size: | As Per Customer's Requirements |
| Body Corporate: | Hailaitaide | Width: | 1320mm |
| Conveying Direction: | From Left To Right | Accident: | Microwave Drying |
| Highlight: | microwave drying line for building panels,continuous microwave drying for gypsum boards,cement fiber board microwave drying equipment |
||
Product Description
This innovative equipment combines rapid microwave heating with a low-temperature vacuum environment, specifically engineered for high-quality dehydration of building panels including gypsum and cement fiber boards. The system enables accelerated curing at controlled temperatures while maintaining product integrity and quality.
| Parameter | Specification | Remarks |
|---|---|---|
| Microwave Power | 20kW - 50kW, continuously adjustable | Industrial-grade magnetrons, long lifespan |
| Vacuum Range | -0.08 MPa ~ -0.098 MPa | Maintains low-temperature processing environment |
| Drying Chamber Volume | 1 - 5 m³ | Multiple sizes customizable |
| Tray System | Stainless steel trays on trolleys | Number of tiers & spacing customizable |
| Control System | Fully automatic programmable control | Real-time monitoring of temperature, pressure, power with pre-set process curves |
| Condensing System | Built-in condenser for efficient vapor capture | Protects vacuum pump |
| Material Contact Parts | 316L stainless steel | Compliant with industrial standards |
| Processing Temperature | Typically 30°C - 60°C (process-dependent) | Core advantage of controlled temperature processing |
Complete system includes: Pre-processing area, Loading station, Microwave-Vacuum processing main chamber, Vapor condenser, Vacuum system, Microwave power system, PLC/HMI control system, Circulating water chiller, and Unloading station.
- Superior Product Quality: Exceptional preservation of material properties and structural integrity compared to conventional methods
- Rapid Processing at Controlled Temperatures: Vacuum environment combined with precise microwave heating enables accelerated curing while maintaining quality
- Energy Efficient: Shorter processing times and targeted heating lead to lower overall energy consumption
- Hygienic & Automated: Closed, controlled process suitable for industrial applications with repeatable, automated cycles
Customized tray and handling systems are available for specific panel types and sizes. Process parameters and auxiliary systems can be tailored to achieve optimal processing results for your specific building panel requirements.
Application feasibility analysis, process parameter optimization support, installation supervision, comprehensive training, and dedicated after-sales technical support.
Robust export packing using desiccants and protective cushioning. Equipment is fully tested before disassembly and shipping. Detailed installation manuals provided.
This system offers superior quality profile with excellent material preservation and structural integrity, often at higher throughput and lower operational cost than traditional curing methods, making it an attractive alternative for building panel production.
Yes. The combination of vacuum environment and precise microwave control allows gentle processing of sensitive building materials while maintaining product quality.
Yes. We offer sample testing services in our lab to demonstrate performance and help determine optimal customized settings for your specific building panel materials.
