Industrial Microwave Drying Tunnel for Fruits, Herbs & Pulp Molding - High Efficiency Uniform Drying
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320T |
| Document: | microwave drying equipment.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Advantage: | Enery Conservation | Warranty Period: | One Year |
|---|---|---|---|
| Running Direction: | From Left To Right | Feature: | Energy |
| Use: | Drying | Dimension: | As Customer Requirement |
| Voltage: | 380v | Heading: | Microwave Drying Machine |
| Highlight: | industrial microwave drying tunnel,microwave drying equipment for fruits,high efficiency uniform drying tunnel |
||
Product Description

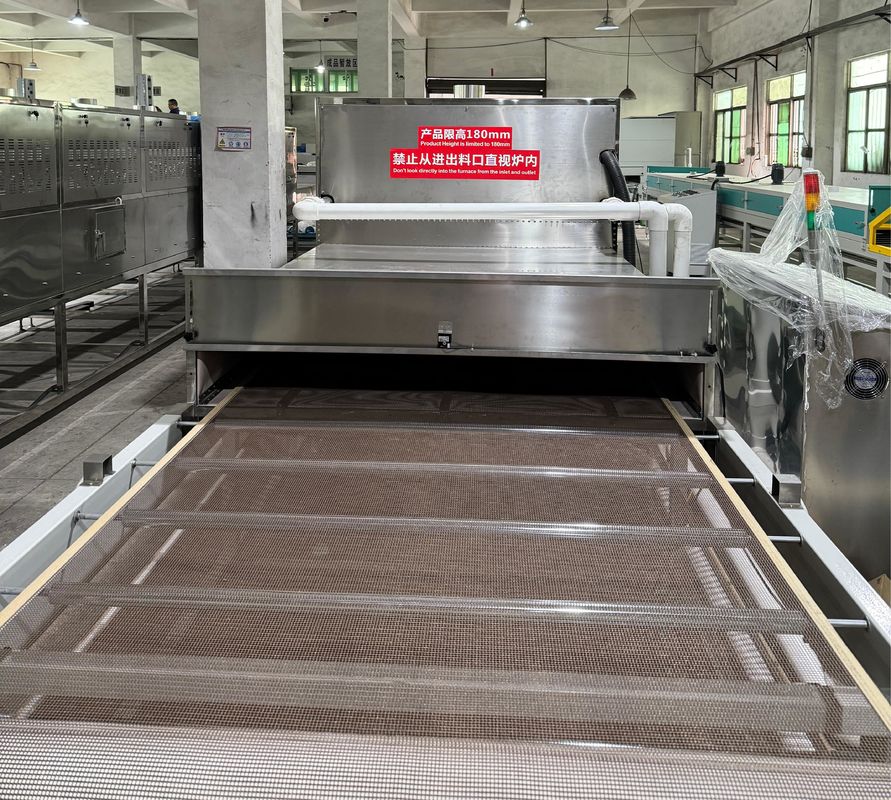

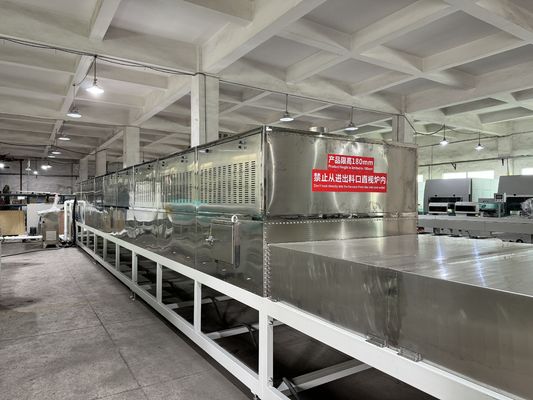

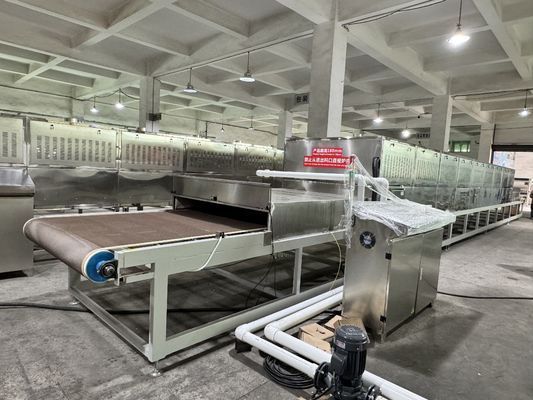

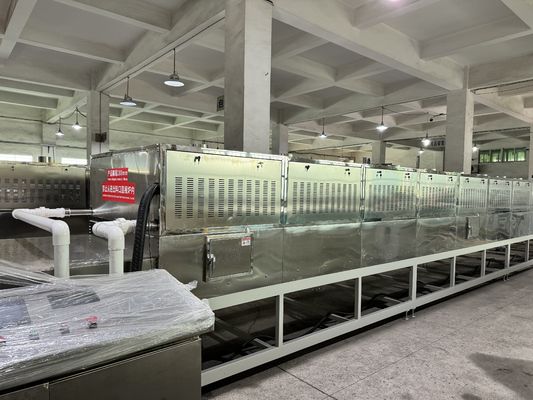

This complete industrial microwave drying system includes an infeed conveyor belt, microwave generator cabinet with power control, drying tunnel with resonant cavities, hot air exhaust and moisture removal system, discharge conveyor, and centralized PLC control panel.
Our industrial microwave drying tunnel is engineered for rapid and uniform moisture removal from heat-sensitive materials. By using microwave energy to directly interact with water molecules inside the product, it significantly reduces drying time, improves product quality, and achieves consistent drying throughout the entire batch.
| Parameter | Specification |
|---|---|
| Model | MWT-Series (e.g., MWT-30, MWT-60) |
| Microwave Frequency | 2450MHz ± 50MHz |
| Power Output | 30kW, 60kW, 100kW (Customizable) |
| Conveyor Belt Width | 500mm, 800mm, 1000mm (Customizable) |
| Drying Temperature | 40°C - 90°C (Adjustable) |
| Control System | PLC + Touch Screen HMI |
| Power Supply | 380V / 50Hz / 3 Phase |
| Overall Dimensions | Customizable based on power and capacity requirements |
- Fruits: Drying slices of apple, mango, banana, and berries
- Chinese Herbs: Drying roots, leaves, and slices of herbs like Ginseng, Goji Berry, etc.

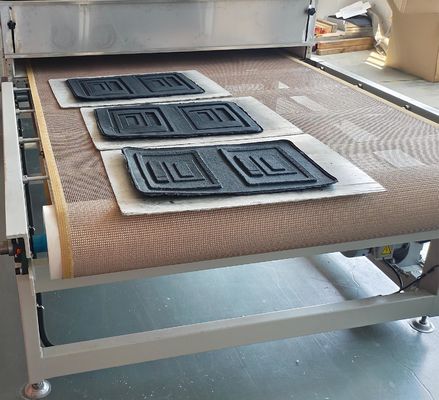

- Pulp Molding: Drying molded trays, packaging, and tableware
We understand that each product has unique drying characteristics. This system is highly customizable. We can adjust the tunnel length, power configuration, conveyor belt material (e.g., mesh, PTFE), and temperature profile to create a perfect drying curve for your specific product.
- Rapid and Uniform Drying: Microwaves penetrate the product, heating it from the inside out, preventing case-hardening
- High Energy Efficiency: Direct energy transfer to water molecules reduces overall energy consumption
- Precise Control: PLC system allows for precise control over power, temperature, and conveyor speed
- Improved Product Quality: Preserves color, active ingredients (in herbs), and structural integrity
- Compact Design: Requires less floor space compared to traditional drying ovens
We offer comprehensive support including installation supervision, operator training, a 12-month warranty, and lifelong technical support with readily available spare parts.
The machine is disassembled into modules. All components are securely packed in weather-proof wooden cases suitable for sea shipping. All packages are clearly marked for easy identification.
