High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability

High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability
High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability

Large Image :  High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: CE
Model Number: OSM-IR-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: Negotiaion

High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability

Description
Product Name: Infrared Drying Machine Dimension(l*w*h): 2200mm L*1000mm W* 1280mm Hl
Voltage: 380V 50Hz Installation: Engineer Guide,Under Technician's Guidance,Engineer's Guidance
Raw Material: 304 Sainless Steel After-sales Service Provided: Video Technical Support
Condition: New Warranty: 1 Year
Highlight:

bamboo fiber mold infrared drying machine

,

high precision infrared drying machine

,

infrared drying machine for enhanced strength

High Precision Bamboo Fiber Mold Infrared Drying Machine for Enhanced Strength and Stability
Product Overview

Our precision IR Drying Oven is specifically engineered for bamboo fiber molded products, delivering controlled and gentle heat to enhance structural integrity and dimensional stability. This advanced system ensures rapid moisture removal while preserving natural fiber quality, resulting in stronger, high-performance finished goods. Key components are customizable to optimize performance for your specific bamboo pulp blend.

Technical Specifications
Parameter Specification
Model OSM-IR-500
Dimensions (L×W×H) 2200mm × 1000mm × 1280mm
Effective Drying Width 500mm

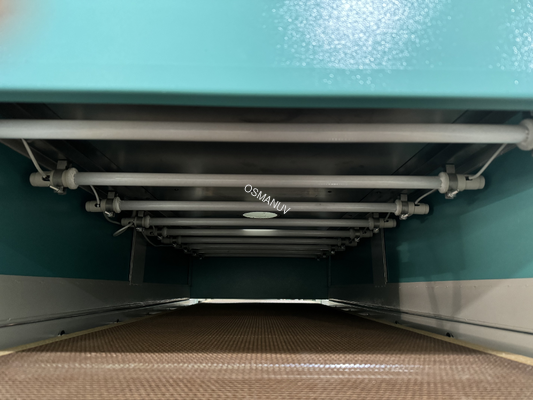

Heating Element 9 × 1KW Infrared Quartz Lamps
Conveyor Belt American Kevlar Teflon Mesh Belt
Control System Taiwan Delta Inverter (Speed: 0.1-3 m/min)
Temperature Control OMRON Thermostat (RT - 100°C Adjustable)
Power 9.5KW
Voltage 380V, 50Hz
Lifespan 10-15 Years (Depending on maintenance)
Applications

Ideal for drying eco-friendly bamboo fiber tableware, packaging, and other molded products requiring high precision and superior strength characteristics.

Customization Options

The drying process is highly customizable, allowing precise adjustments to temperature profiles and dwell time to accommodate various bamboo fiber densities and product thicknesses.

Key Features
  • Gentle infrared heating preserves bamboo fiber integrity
  • High-precision temperature control for consistent results
  • Durable construction with corrosion-resistant interior
  • User-friendly button control interface
Support & Services
  • Comprehensive one-year warranty
  • Lifelong technical support and troubleshooting
  • Prompt spare parts supply and detailed operational training
Shipping & Delivery

Expertly crated and shipped via sea freight under DDP terms. Total delivery time is approximately 80 days from order confirmation.

Frequently Asked Questions
How does this machine benefit bamboo fiber products specifically?

The controlled infrared heat prevents overheating and warping, which is crucial for maintaining the strength and smooth finish of bamboo products.

Can the conveyor speed be synchronized with our molding machine?

Yes, the variable speed drive is easily customizable to synchronize with your upstream and downstream equipment.
