Industrial Microwave Drying Machine for Pulp Molding - Customizable Tunnel System for Egg Trays & Food Packaging
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Dry Way: | Microwave | Feeding Pow: | 0.75kw |
|---|---|---|---|
| Production Speed: | 15-25m/min | Running Direction: | From Left To Right |
| Frequency Brand: | Shilin Or Schneider | Plate Type: | Gravure Plate |
| Rewinding Folding Error: | ±0.1mm | Conveying Direction: | From Left To Right |
Product Description

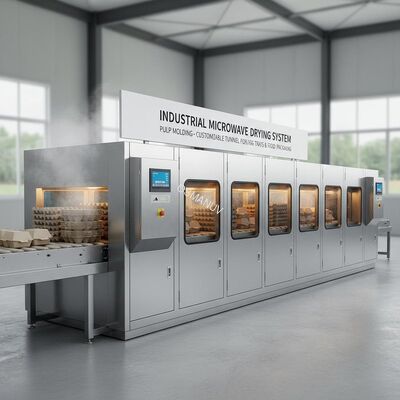

Industrial Microwave Drying Machine for Pulp Molding - Customizable Tunnel System for Egg Trays & Food Packaging
Product Description:
This industrial-grade microwave drying machine is specifically engineered for the pulp molding industry. It delivers rapid, uniform, and energy-efficient drying for products like egg trays, fruit trays, and disposable food packaging. By directly heating water molecules, it drastically reduces drying time from hours to minutes, resulting in a stronger, higher-quality final product with lower energy consumption. The entire production line is customizable to match your output and factory layout.
Composition of Production Line:
-
Infeed Conveyor (Synchronized with molding machine)
-

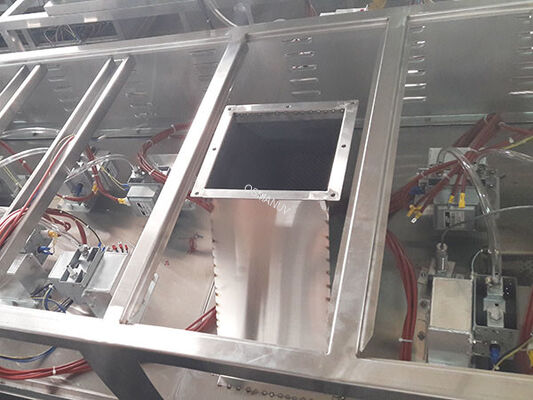

Microwave Heating Chamber (With magnetron arrays)
-
Hot Air Circulation System (For moisture evacuation)
-
Exhaust & Dehumidification System
-
Outfeed & Cooling Conveyor
-
PLC Control Cabinet with Touch Screen HMI
-
Variable Frequency Drive (VFD) for conveyor speed control
Technical Parameters:
| Parameter | Details |
|---|---|
| Model | MWT-PM Series (Fully Customizable) |
| Power Output | 30kW, 50kW, 80kW, 100kW (Selectable & Customizable) |
| Input Voltage | 380V/415V 50Hz/60Hz 3 Phase (or as Customized) |
| Drying Temperature Range | 70°C - 120°C (Precisely Adjustable) |
| Conveyor Belt Width | 600mm, 800mm, 1000mm (Customizable) |
| Drying Time | 5 - 15 minutes (Adjustable via VFD) |
| Control System | PLC + Touch Screen HMI (Programmable Recipes) |
| Overall Dimension | Customized based on power and configuration |
Application:
Pulp molding industry for drying egg trays, fruit trays, industrial packaging, paper pot seedlings, and other 3D molded fiber products.
Customization:
We offer extensive customization including the tunnel length, belt type and width, power configuration, control system integration, and overall layout to seamlessly fit into your existing production line.
Feature:
-
Fast and uniform heating from the inside out.
-
Up to 40% energy savings compared to conventional ovens.
-
Fully customizable power and conveyor speed for different products.
-
Improves product strength and reduces breakage.
-
Compact design, saving valuable factory floor space.
-
PLC control ensures consistent and repeatable results.
Support and Services:
We provide comprehensive support including installation supervision, operator training, remote technical assistance, and a readily available supply of spare parts.
Packing and Shipping:
The machine is securely packed in an export-worthy wooden case or iron frame for safe ocean freight and land transportation. All parts are clearly marked for easy identification.
FAQ:
-
Q: Can this machine connect to my automatic pulp molding machine?
A: Yes, the infeed and outfeed heights and speeds are fully customizable for seamless integration. -
Q: Will microwave drying damage the fragile pulp structure?
A: No, the temperature and power are precisely controlled to prevent scorching or deformation, resulting in a more consistent product. -
Q: What is the typical lead time?
A: Lead time depends on the level of customization, typically ranging from 20 to 35 working days.
