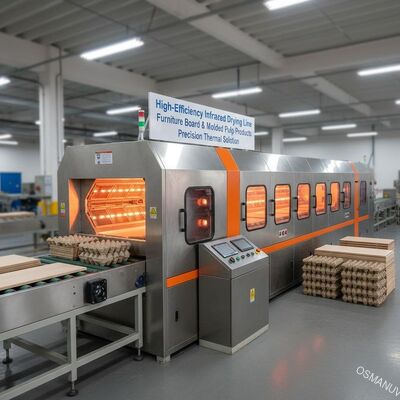

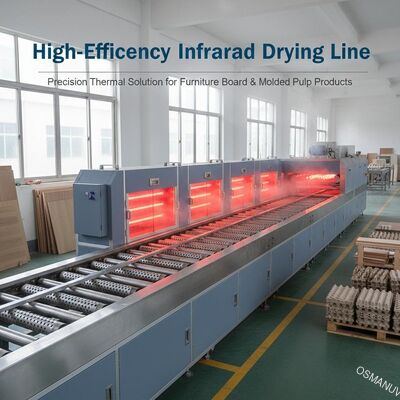

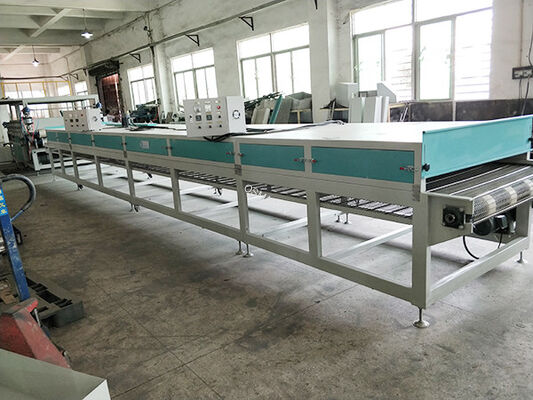

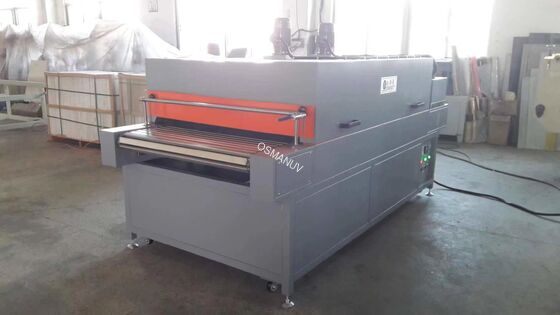

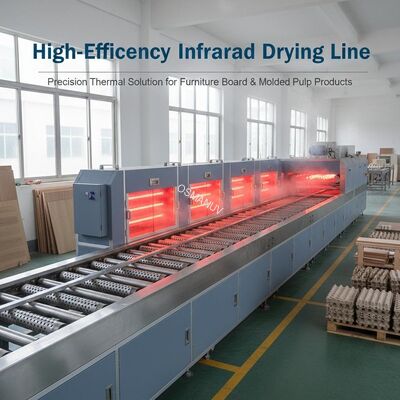

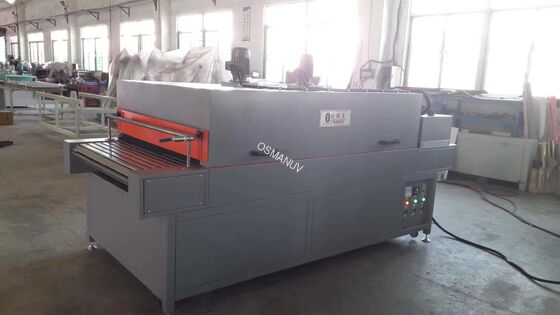

High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Precision Thermal Solution
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-UV-1320T |
| Document: | 5 Meters IR Drying Machine.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Timer Setting: | 1-60 Minutes | Worktable: | Floating |
|---|---|---|---|
| Function: | Plastic Cup Quick Dryer | Air Flow Direction: | Horizontal/Vertical |
| Conveyor Belt Speed: | 10-30m/min | Outlet Temperature: | 80-250 Degree |
| Automatic Grade: | Automatic | ||
| Highlight: | infrared drying machine for furniture board,infrared drying line with thermal precision,molded pulp infrared drying system |
||
Product Description
High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Precision Thermal Solution
Keywords: infrared drying line, furniture board drying, molded pulp dryer, customizable IR drying, industrial infrared oven
Production Line Composition
- Infrared pre-heating section
- Main IR drying tunnel
- Heat circulation system
- Temperature control cabinet
- Conveyor system
- Cooling section
- PLC control panel
Technical Parameters
| Parameter | Specification |
|---|---|
| Heating Technology | Medium-wave infrared emitters |
| Temperature Range | 50-400°C (customizable) |
| Belt Width | 600-2000mm (customizable) |
| Drying Speed | 0.5-5 m/min (adjustable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Control System | PLC + 10" HMI touchscreen |
| Heating Power | 30-200kW (customizable) |
Applications
Drying of furniture boards (MDF, HDF, particleboard), molded pulp packaging, and industrial fiber products.
Customization
Fully customizable infrared emitter layout, belt specifications, heating zones, and control system configuration.
Key Features
- 40% energy saving compared to conventional drying
- Precise temperature control (±1°C)
- Quick response and easy maintenance
- Uniform heating without surface damage
Support and Services
Installation supervision, operator training, 24/7 technical support, spare parts supply
Packing and Shipping
Modular design for easy shipping, weather-proof packaging, FOB/CIF terms available
Frequently Asked Questions
Q: Can the line handle different product thicknesses?
A: Yes, the system is fully customizable for various product specifications.
