Quality High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Energy-Saving Thermal Solution factory

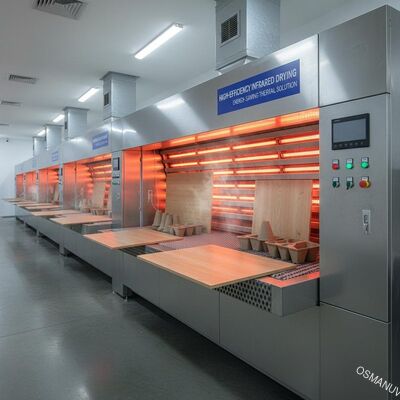

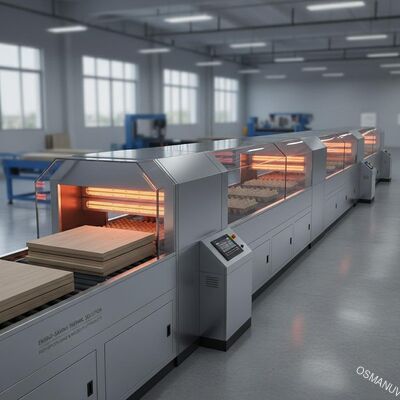

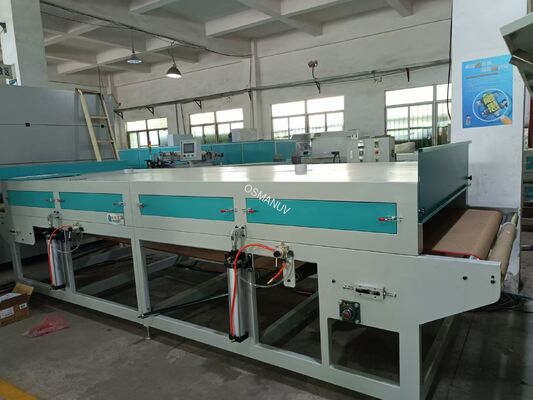

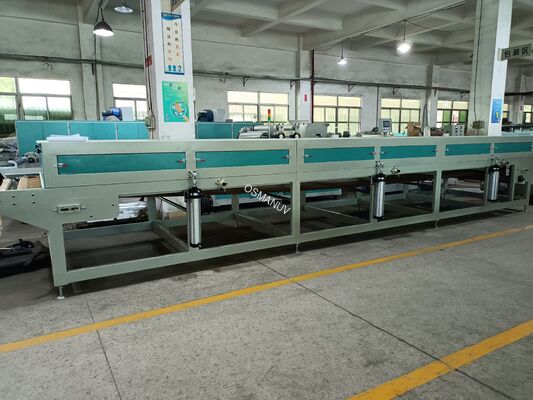

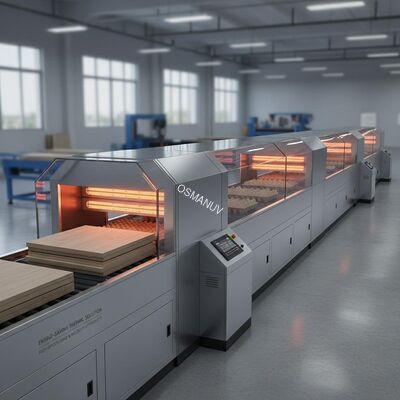

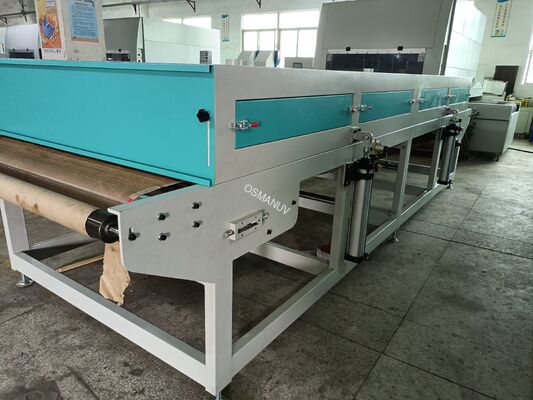

High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Energy-Saving Thermal Solution

Name: High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Energy-Saving Thermal Solution
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-UV-1320T
Price: 4,500.00 USD
Availability: InStock

High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products This energy-saving thermal solution is specifically designed for rapid and uniform drying of furniture boards (MDF, particleboard) and molded pulp products. It ensures efficient moisture removal with minimal energy ...

Place of Origin:China

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-UV-1320T

Minimum Order Quantity:1 set

Price:Negotiation

Product Custom Attributes

Highlight

infrared drying machine for furniture board

energy-saving infrared drying line

thermal drying solution for molded pulp

Conveyor Belt Speed:

10-30m/min

Light Source:

UV Light

Worktable:

Floating

Inverter Brand:

Schneider

Spray Gun:

Adopt American GRACO Automatic Spray Gun

Coating Durability:

High Durability

Coating Means:

DOD Inkjet Heads

Roller Type:

Steel Wire

Product Description

High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products

This energy-saving thermal solution is specifically designed for rapid and uniform drying of furniture boards (MDF, particleboard) and molded pulp products. It ensures efficient moisture removal with minimal energy consumption and reduced footprint compared to conventional drying methods.

Keywords: infrared drying line, furniture board drying, molded pulp dryer, customizable drying system, industrial infrared oven

Production Line Composition

Pre-drying infrared module

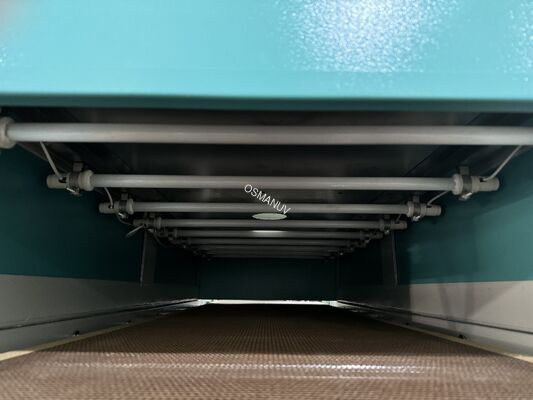

Main infrared drying tunnel
Heat circulation system
Temperature control cabinet

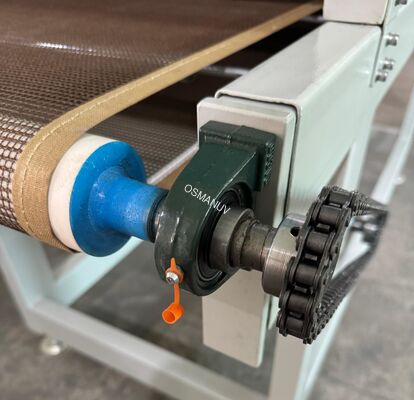

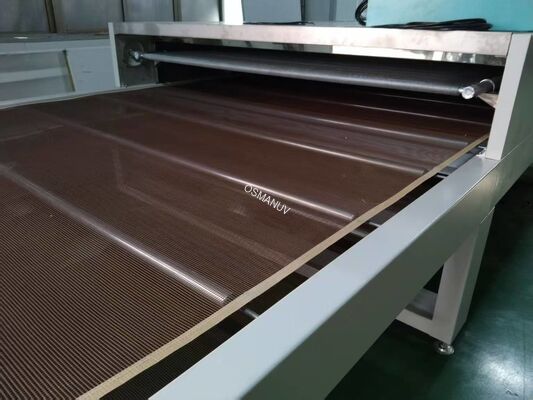

Conveyor belt system
Cooling section
PLC control panel

Technical Parameters

Parameter	Specification
Heating Technology	Medium-wave infrared emitters
Temperature Range	50-400°C (customizable)
Belt Width	600-2000mm (customizable)
Drying Speed	0.5-5 m/min (adjustable)
Power Supply	380V/50Hz/3Phase (configurable)
Control System	PLC + 10" HMI touchscreen
Heating Power	30-200kW (customizable based on capacity)

Applications

Drying of furniture boards, molded pulp packaging, egg trays, and industrial fiber products.

Customization Options

Fully customizable infrared emitter layout, belt width, heating zones, and temperature profiles to match specific product requirements.

Key Features

40% energy saving compared to hot air drying
Uniform heating without surface overheating
Quick response and precise temperature control
Minimal maintenance requirements

Support and Services

Installation supervision, operator training, 24/7 technical support, spare parts supply

Packing and Shipping

Modular design for easy shipping, weather-proof packaging, FOB/CIF terms available

Frequently Asked Questions

Q: Can the line handle different product thicknesses?

A: Yes, the temperature and speed are fully customizable for various thicknesses.
