220V Controlling Temperature 5 Meters Ir Dryer Machine For Pulp Molding Coating
Pulp Molding Coating Ir Dryer
,5 Meters Ir Dryer Machine
,Infrared Drying Machine 220V

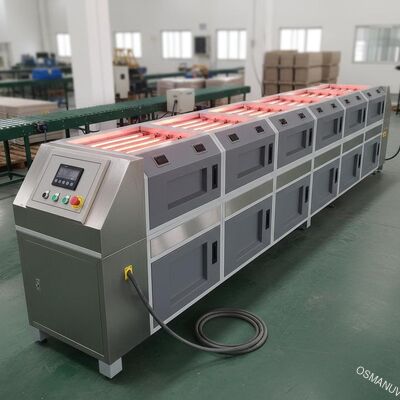

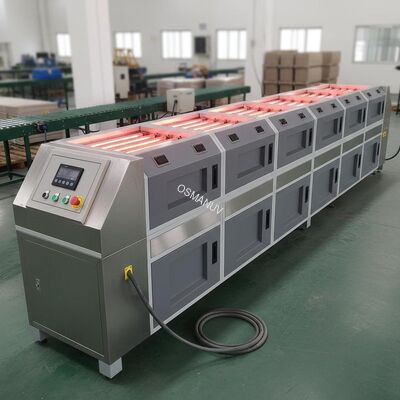

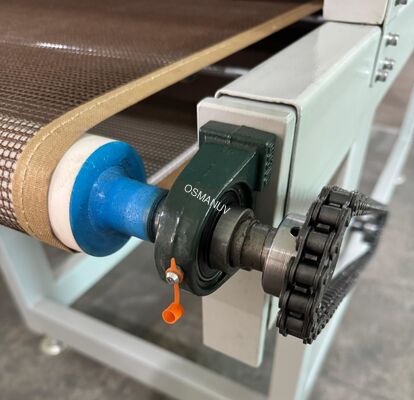

The 5 Meters IR Drying Machine (Model: OSM-IR-200) is a high-efficiency infrared drying solution designed for continuous industrial production. With a 5-meter drying tunnel and 750W extended shaft motor, it ensures uniform temperature distribution and fast curing for coatings, inks, or adhesives. The Kevlar conveyor belt (imported from the USA) and Taiwan Delta frequency converter enable smooth speed adjustment (1-5 m/min), ideal for high-throughput factories.
| Parameter | Details |
|---|---|
| Dimensions | 5000mm (L) × 1000mm (W) × 1280mm (H) |

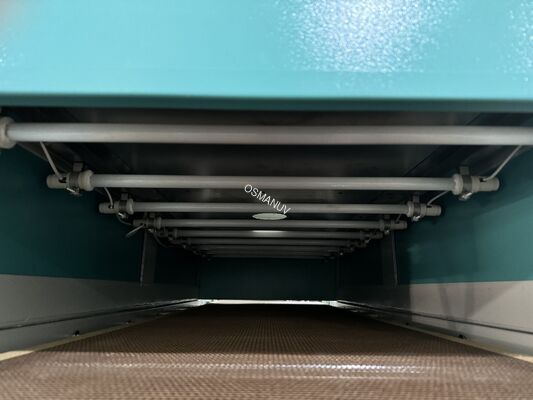

| Heating Source | US-made infrared quartz lamps, SUS 304 stainless steel inner wall |

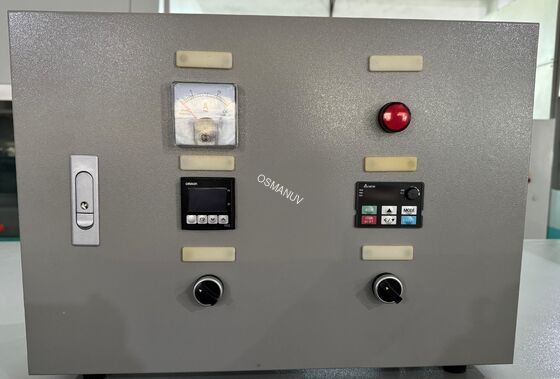

| Temperature | Room temperature to 100°C (adjustable via BKC controller) |
| Belt Speed | 1-5 m/min (Delta frequency converter) |
| Power | 750W motor + Taiwan TWT gear reducer |
| Safety | Overload protection, emergency stop, CE-compliant electrical components |
- Printing Industry: Drying UV inks on packaging materials.
- Electronics: Curing adhesives on PCB boards.
- Textiles: Heat-setting for synthetic fabrics.
- Adjustable belt width (standard: 200mm)
- Optional additional heating zones for higher temperatures
- Energy-saving: Infrared heating reduces power consumption by 30% vs. traditional ovens
- Precision Control: Delta inverter ensures stable speed and temperature
- 24/7 technical support via 400-666-2388
- On-site installation available in China
- Wooden crate packaging (IP65 standard)
- FOB Dongguan, lead time: 15 days
-
