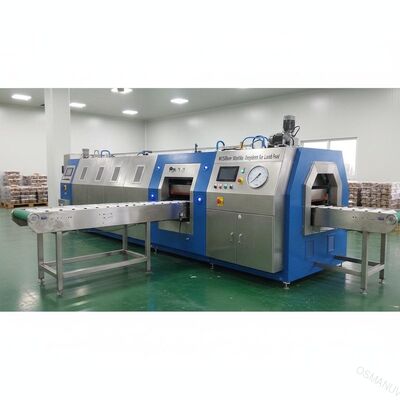

W1320mm 10m/Min Microwave Drying Equipment For Lunch Food
Microwave Vacuum Drying Machine
,Microwave Vacuum Drying Machine 10m/Min
,Microwave infared dryer
- Conveyor belt height from ground: 850mm (adjustable ±50mm)
- Drive system: Servo motor driven
- Conveyor belt type: PP white tank chain conveyor belt
- Conveyor belt width: 1320mm
- Operation direction: Left to right transmission
- Line speed: 1-10m/min (frequency conversion adjustable)
- Maximum power per harmonic cavity: Less than 6KW
Microwave heating utilizes material absorption of microwave energy converted to heat energy, enabling simultaneous heating throughout the material. High-frequency electromagnetic fields cause polar molecules (water, proteins, fats, etc.) to rapidly oscillate, generating friction heat that quickly increases temperature and dries water molecules.
Material: 1.5mm SUS 304# stainless steel plate, compliant with microwave production standards, solvent resistant and easy to clean.
- Penetrating heating with fast heating speed - enables overall heating without heat conduction process
- Uniform heating - penetrates objects evenly regardless of shape, avoiding external burning or internal moisture
Square exhaust fan accelerates cooling of baked products with natural wind, reducing time to next process.
| Parameter | Specification |
|---|---|
| Model Number | OSM-WBHG-1320 water-based paint drying production line |
| Input Power | Three-phase five-wire 380V±10% 50Hz±2% |
| Rated Input Power | Microwave ≤35kVA |
| Microwave Output Power | ≥85KW (adjustable) |
| Microwave Frequency | 2450MHz±50Hz |
| Dimensions (L×W×H) | 17530mm×1600mm×1100mm |
| Number of Boxes | 9 cabinets, Width: 1170mm |
| Suppressor Size | Length: 2000mm, Opening height: 180mm |
| Microwave Energy Feeding | Top feed, Aluminum waveguide |
| Operating Environment | Temperature: 0-40℃, Humidity ≤80%, No corrosive/conductive/explosive gases |
| Cooling Methods | Magnetron: Water cooling, Power supply: Oil-immersed water cooling |
| Control System | PLC programming control with luxury buttons |
| Monitoring System | Built-in camera in microwave box with display monitoring |
| Power Controller | Oil-immersed microwave power controller (30%-100% adjustment) |
| Safety Compliance | GB 10436-1989, GB 16798-1997, GB/5226.1-2002, GB 5959.6-2008 |
| Total Input Power | Approximately 85KW |
| Drying Temperature | Room temperature to approximately 80℃ |
| Magnetron Life | ≥6000-8000 hours continuous operation |
| Control Method | Independent console, Delta PLC controller, Weilun touch screen system |
-
