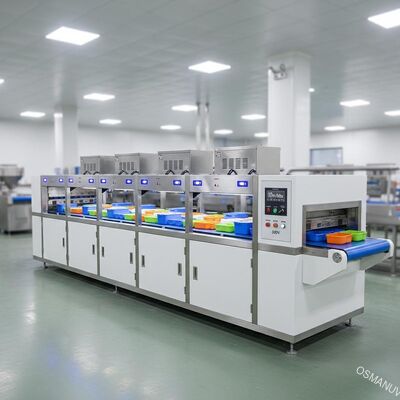

10m/Min Microwave Dryer Machine 380V For Lunch Box
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320YP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 35-45 Work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Microwave Infared Dryer | Conveyor Belt Line Speed: | 1-10m/min, Adjustable By Frequency Conversion |
|---|---|---|---|
| Conveyor Belt:: | Use Plastic Conveyor Belt (PP White Tank Chain Conveyor Belt) To Drive | Width: | 1320mm |
| Magnetron Cooling Method: | Water Cooling | Dimensions (L×W×H): | 17530mm×1600mm×1100mm |
| Feature: | Energy | ||
| Highlight: | Vacuum Microwave infared dryer,10m/Min Microwave infared dryer,Microwave Vacuum Dryer Machine 380V |
||
Product Description
- Conveyor belt height from ground: 850mm (adjustable ±50mm)
- Conveying drive system: Servo motor driven
- Conveyor belt: PP white tank chain conveyor belt, width: 1320mm
- Operation direction: Left to right transmission
- Conveyor belt speed: 1-10m/min (frequency conversion adjustable)
- Maximum power per harmonic cavity: Less than 6KW
Microwave heating utilizes material absorption of microwave energy converted to heat energy, enabling rapid and uniform heating through high-frequency electromagnetic field interaction with polar molecules.
- Penetrating Heating: Fast heating speed with overall heating method, eliminating heat conduction process
- Uniform Heating: Even microwave penetration regardless of object shape, preventing external burning and internal moisture
Material: 1.5mm SUS 304# stainless steel plate, compliant with microwave production standards, solvent resistant and easy to clean
Square exhaust fan accelerates cooling of baked products with natural wind, reducing time to enter next process.
| Model Number | OSM-WBHG-1320 water-based paint drying production line |
| Input Power | Three-phase five-wire 380V±10% 50Hz±2% |
| Rated Input Power | Microwave ≤35kVA |
| Microwave Output Power | ≥85KW (Adjustable) |
| Microwave Frequency | 2450MHz±50Hz |
| Dimensions (L×W×H) | 17530mm×1600mm×1100mm |
| Number of Boxes | 9 cabinets, Width: 1170mm |
| Suppressor Size | Length: 2000mm, Opening height: 180mm |
| Microwave Energy Feeding | Top feed with aluminum waveguide |
| Operating Environment | Temperature: 0-40℃, Humidity ≤80%, No corrosive gases or conductive dust |
| Cooling System | Magnetron water cooling, Power supply oil-immersed water cooling |
| Control System | PLC programming control with luxurious buttons |
| Monitoring | Built-in camera in microwave box with display monitoring |
| Magnetron Life | ≥6000-8000 hours continuous operation |
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
We provide sample testing with video documentation and welcome factory visits. Our products are widely used in China, Southeast Asia, South America, and Europe.
Fully compliant with GMP & ISO standards with CE certification for exporting.
One year warranty with lifelong maintenance and technical support.
