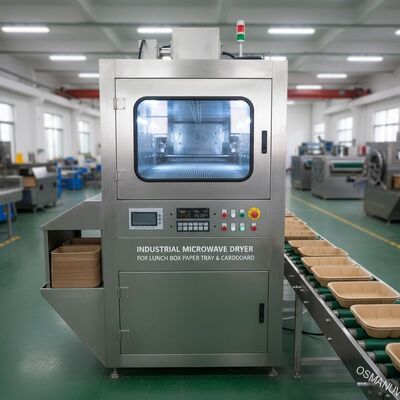

Industrial Microwave Dryer For Lunch Box Paper Tray Card board
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 35-45 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Microwave Equipment | Rated Input Power: | Microwave ≤35kVA |
|---|---|---|---|
| Microwave Power Cooling Method: | Oil Immersion And Water Cooling | Microwave Output Power:: | 85KW |
| Cooling Method: | Magnetron Water Cooling, Microwave Electronic Power Transformer Oil Immersion Water Cooling | ||
| Highlight: | Magnetron Water Cooling Microwave Vacuum Dryer,Lunch Box Microwave Vacuum Dryer,SUS 304 Microwave Vacuum Drying Equipment |
||
Product Description
Microwave Drying Equipment Industrial Microwave Vacuum Dryer designed specifically for lunch boxes, paper trays, and cardboard manufacturing applications. This industrial dryer utilizes heat energy from combustion devices with downstream heating methodology to efficiently reduce material moisture content.
The dryer operates by vaporizing and removing moisture (or other volatile liquid components) from materials through controlled heating, delivering solid materials with precisely specified moisture content levels.
- Conveyor belt height: 850mm from ground (adjustable ±50mm)
- Advanced servo motor driven transmission system
- PP white tank chain conveyor belt, width: 1320mm
- Operation direction: left to right facing control panel
- Variable conveyor speed: 1-10 meters/min with frequency conversion adjustment
- Maximum power per cavity at inlet/outlet: ≤6KW
Microwave heating employs high-frequency electromagnetic fields (2450MHz) that cause polar molecules within materials (water, proteins, fats, carbohydrates) to rapidly oscillate billions of times per second. This molecular friction generates internal heat, enabling rapid temperature increase and efficient moisture evaporation throughout the material.
Construction: 1.5mm SUS 304# stainless steel plate, compliant with microwave production standards, solvent-resistant and easy to clean.
- Penetrating Heating: Rapid heating through material penetration, eliminating conventional heat conduction delays
- Uniform Heating: Consistent electromagnetic wave penetration ensures even heating throughout complex shapes
- Quality Preservation: Eliminates external burning while preventing internal moisture retention
Integrated square exhaust fan accelerates product cooling with natural airflow, reducing processing time between manufacturing stages.
| Model Number | OSM-WBHG-1320 water-based paint drying production line |
|---|---|
| Input Power | Three-phase five-wire 380V±10% 50Hz±2% |
| Rated Input Power | Microwave ≤35kVA |
| Microwave Output Power | ≥85KW | Adjustable power |
| Microwave Frequency | 2450MHz±50Hz |
| Dimensions (L×W×H) | 17530mm×1600mm×1100mm |
| Number of Boxes | Cabinet: 9 | Width: 1170mm |
| Suppressor Size | Length: 2000mm | Opening height: 180mm |
| Energy Feeding | Top feed | Aluminum waveguide |
| Operating Temperature | 0～40℃ | Relative humidity ≤80% |
| Magnetron Cooling | Water cooling |
| Power Supply Cooling | Oil-soaked and water-cooled |
| Control System | PLC programming control with luxurious buttons |
| Monitoring | Built-in cameras with display monitoring |
| Power Control | Oil-immersed microwave power controller (30%-100% adjustment) |
| Magnetron Life | ≥6000-8000 hours continuous operation |
| Conveyor System | PP plastic conveyor belt (tank chain), width: 1320mm |
| Conveyor Speed | 1-10m/min, Delta inverter adjustable |
Dongguan Osmanuv Mechanical Equipment Co., Ltd. specializes in design, research, development, and manufacturing of UV equipment, coating systems, infrared IR equipment, and automation solutions for global export.
Our comprehensive product range serves multiple industries including external wall insulation, decorative panels, bamboo/wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesives, fibers, vacuum plating UV, and water transfer printing.
We operate under the principles of "high-tech, high investment, high-quality, high-management" to deliver superior equipment and service excellence. The company maintains ISO9001:2015 quality management system certification.
