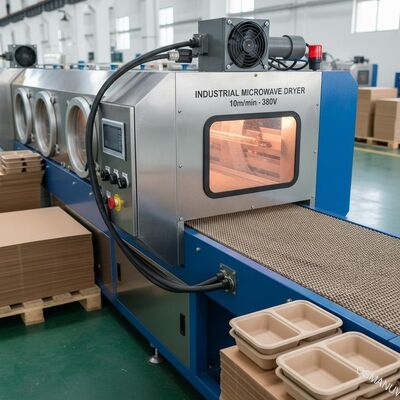

Industrial 10m/Min Microwave Dryer Machine 380V For Box Board or Lunch Box
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320YP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 35-45 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Microwave Infared Dryer | Conveyor Belt Line Speed: | 1-10m/min, Adjustable By Frequency Conversion |
|---|---|---|---|
| Conveyor Belt:: | Use Plastic Conveyor Belt (PP White Tank Chain Conveyor Belt) To Drive | Width: | 1320mm |
| Magnetron Cooling Method: | Water Cooling | Dimensions (L×W×H): | 17530mm×1600mm×1100mm |
| Feature: | Energy | ||
| Highlight: | 10m/Min Microwave Vacuum Dryer Machine,Board Microwave Vacuum Dryer Machine,380V Microwave Vacuum Drying Equipment |
||
Product Description
Industrial 10m/Min Microwave Dryer Machine 380V For Box Board or Lunch Box
Food Microwave Dryer Machine For Box Board
Advanced microwave drying technology designed specifically for box board and lunch box manufacturing applications.
Technical Parameters
- Conveyor belt height from ground: 850mm (±50mm adjustable)
- Conveying drive system: Servo motor driven
- Conveyor belt type: PP white tank chain conveyor belt, width: 1320mm
- Operation direction: Left to right transmission
- Conveyor belt speed: 1-10m/min (frequency conversion adjustable)
- Maximum power per harmonic cavity: Less than 6KW
Microwave Heating System
Microwave heating utilizes high-frequency electromagnetic energy to rapidly heat materials through molecular friction. This advanced technology enables polar molecules (water, proteins, fats, etc.) to absorb microwave energy and convert it directly into heat, resulting in efficient and uniform drying.
Key Features
- Material Construction: 1.5mm SUS 304# stainless steel plate, compliant with microwave production standards, solvent resistant and easy to clean
- Penetrating Heating: Fast heating speed with overall heating method that eliminates heat conduction delays
- Uniform Heating: Consistent electromagnetic wave penetration regardless of object shape, preventing external burning or internal moisture retention
Cooling System
Equipped with square exhaust fan system to accelerate product cooling with natural air flow, reducing processing time between manufacturing stages.
Technical Specifications
| Model Number | OSM-WBHG-1320 water-based paint drying production line |
| Input Power | Three-phase five-wire 380V±10% 50Hz±2% |
| Rated Input Power | Microwave ≤35kVA |
| Microwave Output Power | ≥85KW (Adjustable) |
| Microwave Frequency | 2450MHz±50Hz |
| Dimensions (L×W×H) | 17530mm×1600mm×1100mm |
| Number of Boxes | 9 cabinets, Width: 1170mm |
| Suppressor Size | Length: 2000mm, Opening height: 180mm |
| Microwave Energy Feeding | Top feed with aluminum waveguide |
| Operating Environment | Temperature: 0-40℃, Humidity ≤80%, No corrosive gases or explosive environments |
| Cooling System | Magnetron water cooling, Power supply oil-immersed water cooling |
| Control System | PLC programming control with touch screen interface |
| Magnetron Life | ≥6000-8000 hours continuous operation |
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I verify your machine quality?
A: We provide sample testing on our machines with video documentation. Factory visits are welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production complies with GMP & ISO standards and our products have CE certification for export.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
