Quality 920mm Infrared Machine For Drying OSM-IR-920 Model Energy Saving factory

920mm Infrared Machine For Drying OSM-IR-920 Model Energy Saving

Name: 920mm Infrared Machine For Drying OSM-IR-920 Model Energy Saving
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-IR-920
Price: 4,500.00 USD
Availability: InStock

920mm Infrared Machine For Drying OSM-IR-920 Model Energy Saving Infrared Dryer Machine Stainless steel lamp tube heat energy Nature gas Cardboard, wallboard, lunch box, paper tray Dryer refers to a mechanical device that uses heat energy to reduce the moisture content of materials, and is used to ...

Place of Origin:CHINA

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-IR-920

Minimum Order Quantity:1 set

Price:Negotiable

Product Custom Attributes

Highlight

infrared machine for drying

Energy saving infrared machine for drying

920mm ir dryer machine

Product Name:

Infrared Drying Machine

Warranty:

1 Year

Specification:

15000mm Long X 1250mm Wide X 1400mm High

Color:

Computer White / Green

Effective Leveling Width:

920mm

Model No.:

OSM-IR-920

Feature:

Energy Saving

Product Description

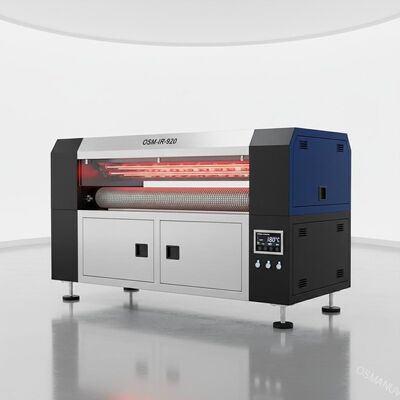

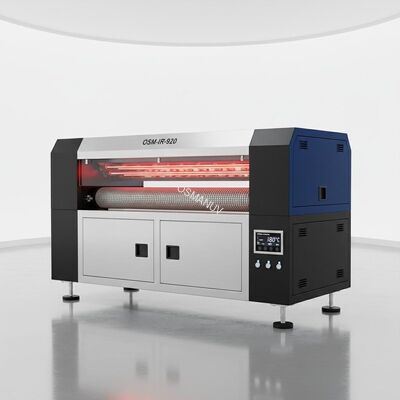

920mm Infrared Machine For Drying OSM-IR-920 Model Energy Saving

Infrared Dryer Machine Stainless steel lamp tube heat energy Nature gas Cardboard, wallboard, lunch box, paper tray

Dryer refers to a mechanical device that uses heat energy to reduce the moisture content of materials, and is used to dry objects.

Product Specifications

Specifications:	15000mm long x 1250mm wide x 1400mm high
Material:	The shell of the heating area is made of A3 board, with insulation cotton in the middle
Lamp tube:	Using Taiwan quartz heating tube, heating effect is good
Effective leveling width:	920mm
Conveyor belt:	Stainless steel chain rod type
Transmission system:	The transmission motor adopts Taiwan TWT gear reducer
Control system:	Using Taiwan Delta frequency converter, the speed can be adjusted 5-20m minutes, and has a speed digital display
Control system:	BKC temperature controller is used to control the required temperature. The temperature is adjustable from room temperature to 100℃

Product Images

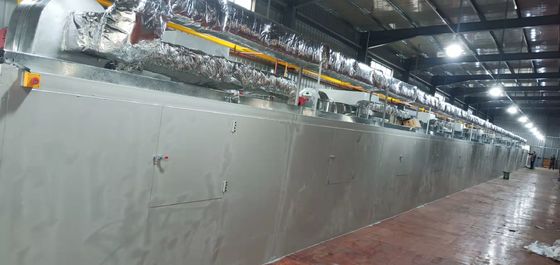

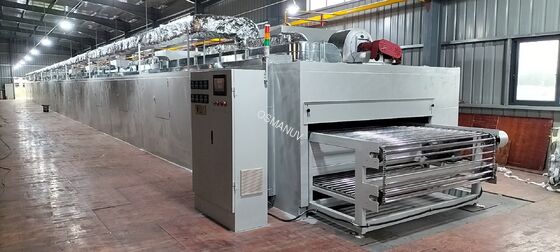

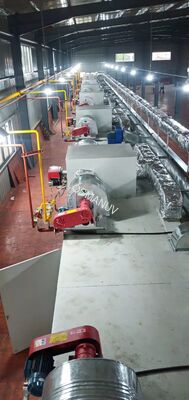

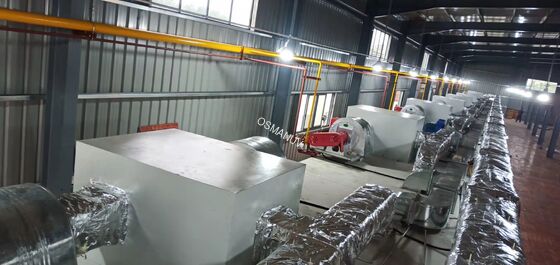

Infrared drying machine operational view
