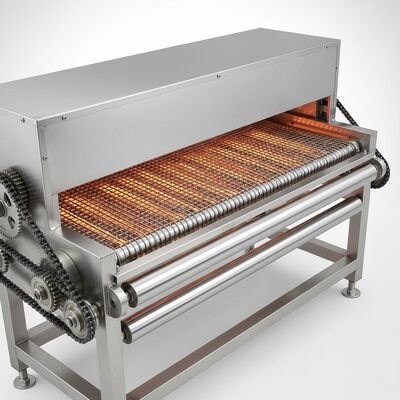

920mm Infrared Drying Machine Stainless Steel Transmission System
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-IR-920 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Infrared Drying Machine | Warranty: | 1 Year |
|---|---|---|---|
| Specification: | 9000mm Long X 1250mm Wide X 1400mm High | Color: | Computer White / Green |
| Effective Leveling Width: | 920mm | Model No.: | OSM-IR-920 |
| High Light: | mechanical Infrared Drying Machine,920mm Stainless Steel Transmission System,920mm Infrared Drying Machine |
||
Product Description
Description:
Dryer refers to a kind of mechanical equipment that uses heat energy to reduce the moisture of materials and is used to dry objects. The dryer vaporizes and escapes the moisture in the material (generally refers to moisture or other volatile liquid components) by heating to obtain a solid material with a specified moisture content
| 1 | Specifications: | 9000mm long x 1250mm wide x 1400mm high. |
| 2 | Material: | The shell of the heating area is made of A3 board, with insulation cotton in the middle. |
| 3 | Lamp tube: | using Taiwan quartz heating tube, heating effect is good. |
| 4 | Effective leveling width: | 920mm. |
| 5 | Conveyor belt: | stainless steel chain rod type. |
| 6 | Transmission system: | the transmission motor adopts Taiwan TWT gear reducer. |
| 7 | Control system: | using Taiwan Delta frequency converter, the speed can be adjusted 5-20m minutes, and has a speed digital display. |
| 8 | Control system: | BKC temperature controller is used to control the required temperature. The temperature is adjustable from room temperature to 100℃. |
