Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control

Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control
Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control
Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control

Large Image :  Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-IR-620
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T,Western Union
Contact Now

Teflon Infrared Drying Machine Teflon Conveyor Belt System Temp Control

Description
Product Name: Infrared Drying Machine Warranty: 1 Year
Specification: 6000mm Long X 950mm Wide X 1400mm High Colorconveyor: Teflon Conveyor Belt
Effective Leveling Width: 620mm Model No.: OSM-IR-620
Highlight:

Temp Control Infrared Drying Machine

,

Teflon Infrared Drying Machine

,

Teflon Conveyor Belt System

Teflon Infrared Drying Machine with Teflon Conveyor Belt System and Temperature Control

A dryer is mechanical equipment that utilizes heat energy to reduce material moisture content, effectively drying various objects. This system operates by heating materials to vaporize and remove moisture (typically water or other volatile liquid components), resulting in solid materials with precisely controlled moisture levels.

Technical Specifications
Specification Details
Dimensions 6000mm long × 950mm wide × 1400mm high
Material Construction Heating area shell constructed from A3 board with insulation cotton filling
Heating Element Taiwan quartz heating tubes for optimal heating efficiency
Effective Leveling Width 620mm
Conveyor Belt Teflon conveyor belt for durable, non-stick performance
Transmission System Powered by Taiwan TWT gear reducer motor
Speed Control Taiwan Delta frequency converter with adjustable speed range of 5-20 meters per minute and digital speed display
Temperature Control BKC temperature controller with adjustable range from room temperature to 100℃

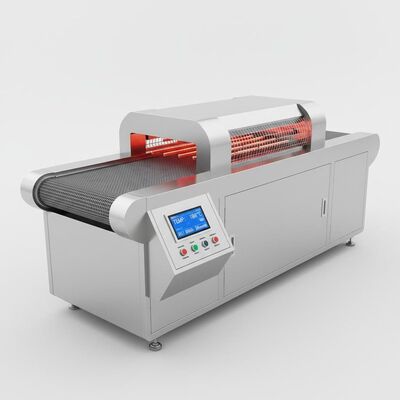

Teflon Infrared Drying Machine with conveyor belt system and control panel

Tag:

8KW Infrared Drying Machine,

ISO9001 Infrared Drying Machine,

Industrial infrared drying machine
