Quality Quartz Infrared Drying Machine Conveyor Belt System Temperature Controller factory

Quartz Infrared Drying Machine Conveyor Belt System Temperature Controller

Name: Quartz Infrared Drying Machine Conveyor Belt System Temperature Controller
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-IR-1320
Price: 4,500.00 USD
Availability: InStock

Quartz Infrared Drying Machine Conveyor Belt System with Temperature Controller Product Overview This dryer is a mechanical equipment that utilizes heat energy to reduce material moisture content through evaporation. It effectively removes moisture and other volatile liquid components from materials...

Place of Origin:CHINA

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-IR-1320

Minimum Order Quantity:1 set

Price:Negotiable

Product Custom Attributes

Highlight

quartz Infrared Drying Machine

6000mm Infrared Drying Machine

Temperature Controller Conveyor Belt System

Product Name:

Infrared Drying Machine

Warranty:

1 Year

Specification:

6000mm Long X 1650mm Wide X 1400mm High

Colorconveyor:

Teflon Conveyor Belt

Effective Leveling Width:

1320mm

Model No.:

OSM-IR-1320

Product Description

Quartz Infrared Drying Machine Conveyor Belt System with Temperature Controller

Product Overview

This dryer is a mechanical equipment that utilizes heat energy to reduce material moisture content through evaporation. It effectively removes moisture and other volatile liquid components from materials, producing solid materials with precisely controlled moisture levels.

Technical Specifications

1	Specifications:	3000mm long x 1650mm wide x 1400mm high
2	Material:	The shell of the heating area is made of A3 board, with insulation cotton in the middle
3	Lamp Tube:	Using Taiwan quartz heating tube for optimal heating effect
4	Effective Leveling Width:	1320mm
5	Conveyor Belt:	Teflon conveyor belt
6	Transmission System:	Transmission motor adopts Taiwan TWT gear reducer
7	Control System:	Using Taiwan Delta frequency converter with adjustable speed (5-20m/min) and digital speed display
8	Control System:	BKC temperature controller for precise temperature control from room temperature to 100℃

Product Image

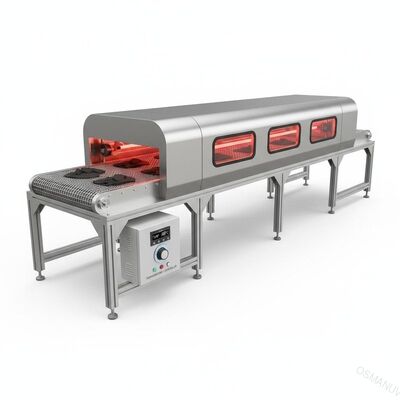

Quartz Infrared Drying Machine Conveyor Belt System with temperature controller display and industrial design
