Quality W920mm 10m Heating Leveling Infrared Drying Machine Computer White factory

W920mm 10m Heating Leveling Infrared Drying Machine Computer White

Name: W920mm 10m Heating Leveling Infrared Drying Machine Computer White
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-GWUV-920
Price: 4,500.00 USD
Availability: InStock

W920mm 10m Heating Leveling Infrared Drying Machine Computer White 10m Heating Leveling W920mm Infrared Tunnel Oven Technical Specifications 1 Product Name Infrared high temperature oven 2 Model OSM-IR-920 3 Specifications 3000 mm x 1280 mm x 1450 mm 4 Material The outer shell of the heating zone is ...

Place of Origin:CHINA

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-GWUV-920

Minimum Order Quantity:1 set

Price:Negotiable

Product Custom Attributes

Highlight

10m Infrared Drying Machine

W920mm Infrared Drying Machine

White infrared machine for drying

Warranty:

1 Year

Color:

Computer White

Product Name:

Infrared High Temperature Oven

Size:

3000 Mm X1280 Mm X 1450mm

Weight:

1500kg

Power(w):

8 Kw

Product Description

W920mm 10m Heating Leveling Infrared Drying Machine Computer White

10m Heating Leveling W920mm Infrared Tunnel Oven

Technical Specifications

1	Product Name	Infrared high temperature oven
2	Model	OSM-IR-920
3	Specifications	3000 mm x 1280 mm x 1450 mm
4	Material	The outer shell of the heating zone is made of A3 board, with insulation cotton in the middle
5	Heating Element	Taiwanese quartz heating tube with excellent heating performance
6	Effective Leveling Width	920mm
7	Conveyor Belt	Chain stainless steel string rod type
8	Transmission System	Taiwan TWT gear reducer motor
9	Control System	Taiwan Delta frequency converter with adjustable speed (5-20 meters per minute) and digital speed display
10	Temperature Control	BKC thermostat controls working temperature from normal temperature to 100℃ adjustable
11	Electrical Components	BKC thermostat, CHNT contactor, Taiwan Delta inverter, Japanese Izumi switches - all imported electrical appliances meeting international standards
12	Safety System	Over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch - all electrical components conform to international first-class product standards

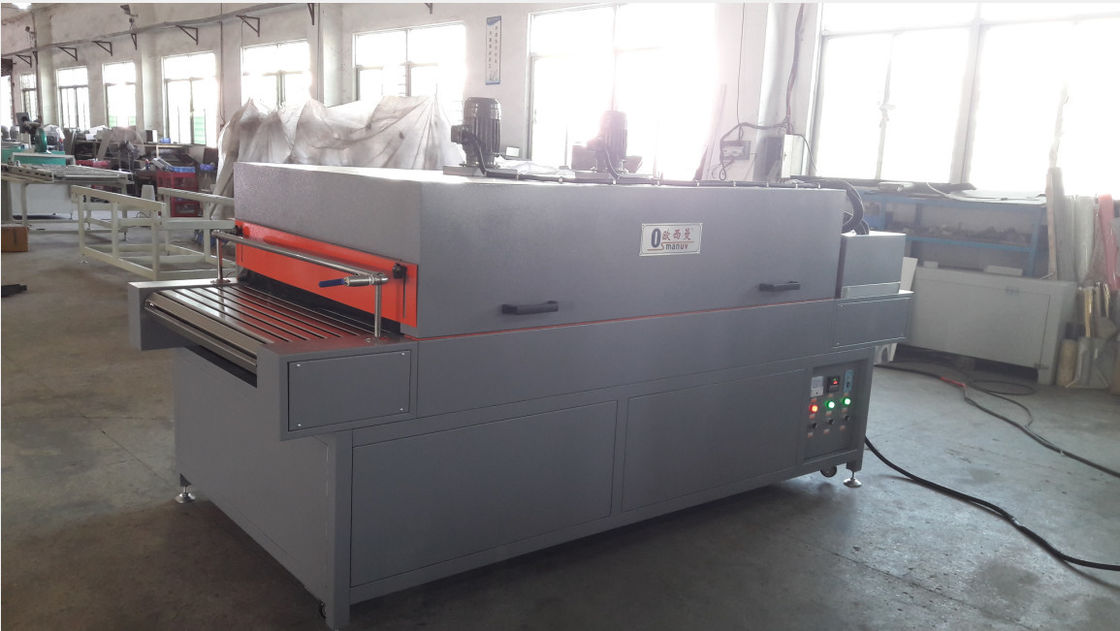

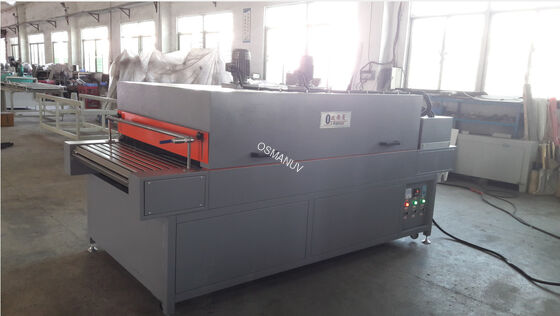

Infrared drying machine front view and control panel

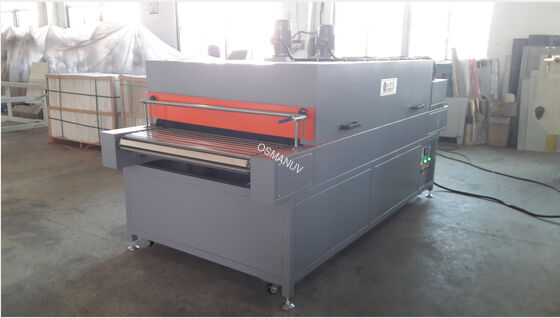

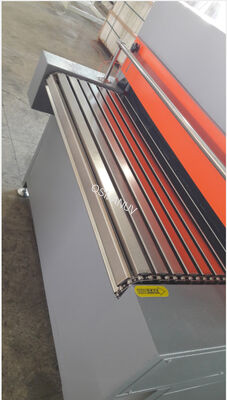

Infrared drying machine side view and conveyor system

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?

A: We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?

A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.

Q: What is your Quality Warranty?

A: One year warranty with lifelong maintenance and technical support.
