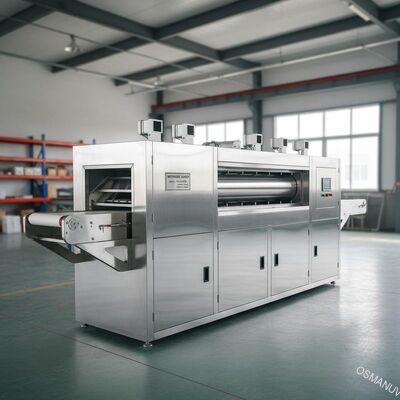

Microwave Drying Equipmen Min Food Drying Machine Drying Machine Factory
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320YP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 35-45 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Microwave Infared Dryer | Conveyor Belt Line Speed: | 1-10m/min, Adjustable By Frequency Conversion |
|---|---|---|---|
| Conveyor Belt:: | Use Plastic Conveyor Belt (PP White Tank Chain Conveyor Belt) To Drive | Width: | 1320mm |
| Magnetron Cooling Method: | Water Cooling | Dimensions (L×W×H): | 17530mm×1600mm×1100mm |
| Highlight: | microwave food drying machine,microwave vacuum drying equipment,industrial food drying machine |
||
Product Description
Microwave Drying Equipment - Food Drying Machine
Technical Parameters
- Conveyor belt height from ground: 850mm (±50mm adjustable)
- Conveying drive system: Servo motor driven
- Conveyor belt: PP white tank chain conveyor belt, width: 1320mm
- Operation direction: Left to right transmission
- Conveyor belt speed: 1-10m/min (frequency conversion adjustable)
- Maximum power per harmonic cavity: <6KW
Microwave Heating System
Microwave heating relies on material absorption of microwave energy converted to heat energy, enabling simultaneous heating throughout the material. High-frequency electromagnetic fields cause polar molecules (water, proteins, fats, etc.) to rapidly oscillate, generating friction heat that quickly increases temperature and dries water molecules.
Construction: 1.5mm SUS 304# stainless steel plate, compliant with microwave production standards, solvent resistant and easy to clean.
Heating Features
- Penetrating Heating: Fast heating speed with overall heating method, eliminating heat conduction process
- Uniform Heating: Even microwave penetration regardless of object shape, preventing external burning while internal remains wet
Air Cooling System
Square exhaust fan accelerates cooling of baked products with natural wind, reducing time to next process.
Specifications
| Model Number | OSM-WBHG-1320 water-based paint drying production line |
|---|---|
| Input Power | Three-phase five-wire 380V±10% 50Hz±2% |
| Rated Input Power | Microwave ≤35kVA |
| Microwave Output Power | ≥85KW (Adjustable) |
| Microwave Frequency | 2450MHz±50Hz |
| Dimensions | 17530mm × 1600mm × 1100mm |
| Number of Boxes | 9 cabinets, Width: 1170mm |
| Suppressor Size | Length: 2000mm, Opening height: 180mm |
| Energy Feeding | Top feed, Aluminum waveguide |
| Operating Temperature | 0-40℃, Relative humidity ≤80% |
| Magnetron Cooling | Water cooling |
| Power Supply Cooling | Oil-soaked and water-cooled |
| Control System | PLC programming control with luxurious buttons |
| Monitoring | Built-in camera for product status observation |
| Power Control | Oil-immersed microwave power controller (30%-100% adjustable) |
| Total Input Power | Approximately 85KW |
| Drying Temperature | Room temperature to approximately 80℃ |
| Magnetron Life | ≥6000-8000 hours continuous operation |
Product Gallery
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Fully compliant with GMP & ISO standards with CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
