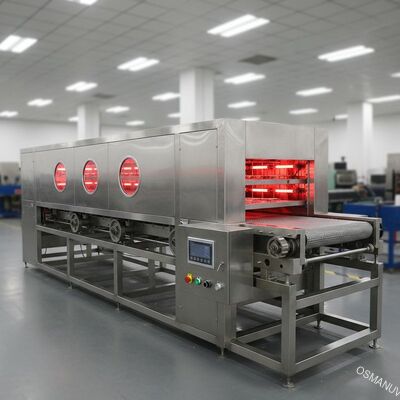

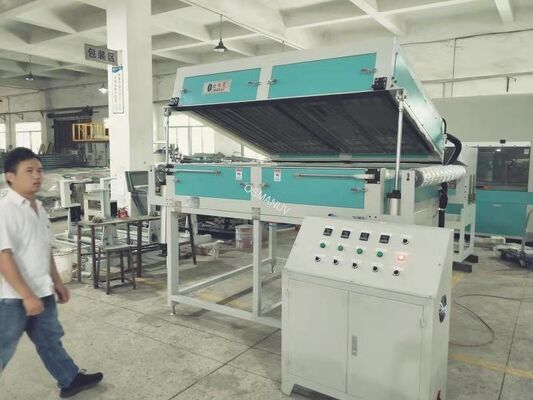

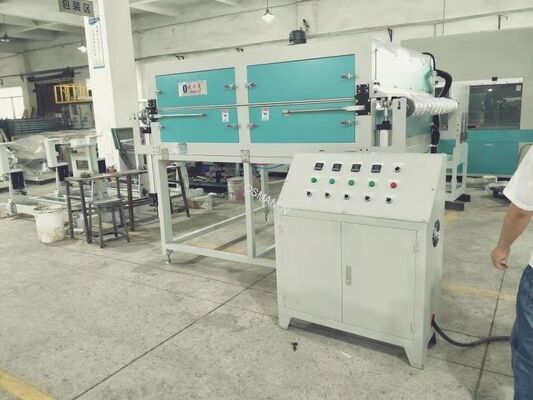

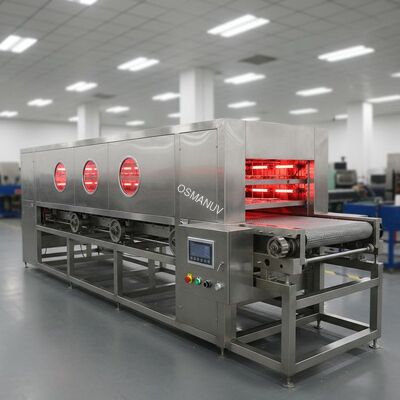

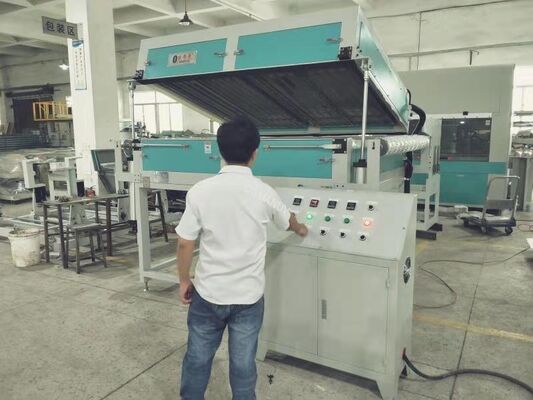

Stainless Steel Transmission System Infrared Drying Machine 1320mm
A3 Board Infrared Drying Machine
,BKC Temperature Controller Infrared Drying Machine
,A3 Board Infrared Dryer Machine
A dryer is mechanical equipment that utilizes heat energy to reduce material moisture content, effectively drying objects. This process involves heating to vaporize and remove moisture (or other volatile liquid components) from materials, resulting in solid materials with specified moisture content levels.
| 1 | Specifications: | 10000mm long x 1650mm wide x 1400mm high |
| 2 | Material: | The shell of the heating area is made of A3 board, with insulation cotton in the middle |
| 3 | Lamp tube: | Using Taiwan quartz heating tube, providing excellent heating effect |
| 4 | Effective leveling width: | 1320mm |
| 5 | Conveyor belt: | Stainless steel chain rod type |
| 6 | Transmission system: | The transmission motor adopts Taiwan TWT gear reducer |
| 7 | Control system: | Using Taiwan Delta frequency converter, speed adjustable 5-20m minutes, with speed digital display |
| 8 | Control system: | BKC temperature controller controls required temperature, adjustable from room temperature to 100℃ |
Dongguan Osmanuv Mechanical Equipment Co., Ltd. specializes in design, research, development, and manufacturing of UV equipment, coating systems, infrared IR equipment, automation equipment, and environmental equipment for global export.
Our comprehensive product range serves multiple industrial sectors including external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, and water transfer printing.
We operate with a modern strategy focused on high technology, investment, quality, and management to provide optimal business solutions and superior service.
-
ISO9001 8KW Natural Gas Infrared Drying Machine
ISO9001 8KW Natural Gas Infrared Drying Machine Product Specifications Product Name Natural Gas Infrared Drying Machine Model OSM-HD-1320T Power 8KW Mechanical Size 15 meters long × 1650mm wide × 2800mm high (length can be customized) Effective Network Width 1320mm Burner Original Riyalu burner; One ...
-
20m/Min Drying Ultraviolet Rays Ir Tunnel 1320mm Net Paper Width
20m/Min Drying Ultraviolet Rays IR Tunnel 1320mm Net Paper Width Product Overview 10m heating leveling machine designed for efficient drying and leveling applications with advanced control systems and safety features. Technical Specifications No. Parameter Specification 1 Product Name 10m heating ...
-
5m/Min BKC Control Stainless Steel Infrared Drying Machine Computer White
5m/Min BKC Control Stainless Steel Infrared Drying Machine Computer White 5m/Min 8KW Stainless Steel Infrared Drying Machine Computer White 1 Specifications 10000mm long x 1650mm wide x 1400mm high 2 Material The shell of the heating area is made of A3 board, with insulation cotton in the middle 3 ...
-
8kw W1320mm Infrared Drying Machine WITH Emergency Stop Switch
8kw W1320mm Infrared Drying Machine WITH Emergency Stop Switch Product Overview 8kw W1320mm Infrared Tunnel Oven with integrated emergency stop switch for industrial drying applications. Technical Specifications Parameter Specification Product Name Infrared high temperature oven Model OSM-IR-1320 ...
-
W920mm 10m Heating Leveling Infrared Drying Machine Computer White
W920mm 10m Heating Leveling Infrared Drying Machine Computer White Product Overview 10m Heating Leveling W920mm Infrared Tunnel Oven - A high-performance industrial drying solution designed for precision temperature control and efficient material processing. Technical Specifications 1 Product Name ...
-
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems, 1500kg Infrared Tunnel 620mm Width Infrared Drying Systems, 8KW Infrared Tunnel 10m heating leveling machine Product Name Infrared high temperature oven Model OSM-IR-620 Specifications 3000mm x 980mm x 1450mm Material The outer shell of the heating zone is made ...
-
lndustrial IR Drying Tunnel for Screen Printing & Inks – Customizable Belt Width (400-2000mm) & Heating Zones
Industrial IR Drying Tunnel for Screen Printing & Inks Customizable Belt Width (400-2000mm) & Heating Zones Product Overview This customizable IR drying line is an industrial tunnel-type drying system using medium-wave or far-infrared heating technology for efficient drying and curing of coatings, ...
-
Multi-Zone Customizable Infrared Drying Machine | Detailed Technical Parameters for Coating & Ink Curing Production Line
Multi-Zone Customizable Infrared Drying Machine Production Line Integration As middle-stage curing equipment in production line composition, the infrared dryer is installed between surface treatment station and finished product inspection station to complete continuous online drying. Users can ...
