Integrated UV Curing Production Line with Customizable Curing Width, Seamless Coating Line Integration & Cold Cure Design

This advanced UV curing machine is specifically engineered for the pulp molding industry, utilizing high-intensity UV energy to rapidly cure UV-curable barrier coatings—waterproof, oil-proof, and scratch-resistant—applied to molded pulp products such as tableware, food packaging, and industrial trays. The system features a cold cure design that generates minimal heat, eliminating thermal damage to heat-sensitive and thin-walled pulp substrates.

• Rapid Cold Cure: High-intensity UV LED or mercury lamp system cures coatings in seconds, with minimal heat generation (<40°C), ensuring no thermal deformation or damage to delicate molded pulp products.
• Energy-Efficient Operation: UV LED technology consumes up to 70% less energy than traditional mercury arc lamps, with zero ozone production and no warm-up time required—significantly reducing operational costs.
• Seamless Line Integration: The system is designed for easy integration with upstream coating equipment and downstream handling systems, forming a complete automated production line.
• Clean & Eco-Friendly: No mercury, no ozone, no harmful emissions—fully compliant with environmental regulations and sustainable manufacturing principles.

• Molded Pulp Tableware: Curing waterproof and oil-proof barrier coatings on plates, bowls, trays, clamshell boxes, and cup carriers—rapid curing without thermal damage
• Industrial Pulp Packaging: Curing protective and anti-static coatings on egg trays, fruit trays, electronic cushioning pads, and industrial corner protectors
• Agricultural Products: Curing biodegradable barrier coatings on seedling pots, horticultural trays, and planting containers
• Premium Molded Products: Curing aesthetic and functional coatings on medical device trays, cosmetic packaging inserts, and custom-shaped containers
• High-Volume Production Lines: Continuous UV curing for large-scale manufacturing where production flexibility and energy efficiency are critical

• Wavelength Selection: Customizable UV wavelength (365nm / 385nm / 395nm / 405nm) to match your coating photoinitiator chemistry

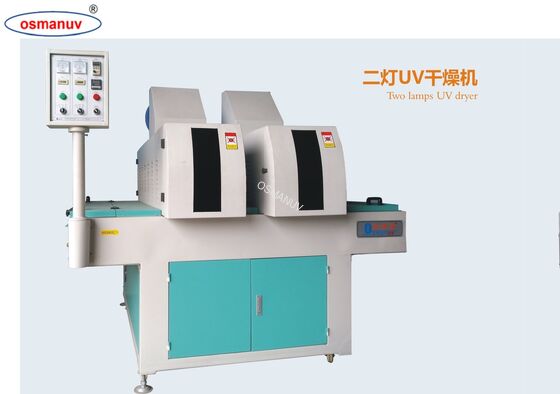

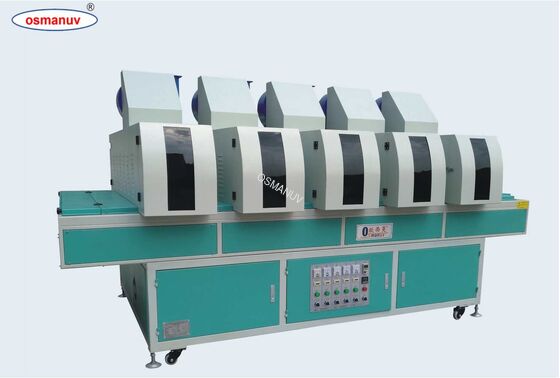

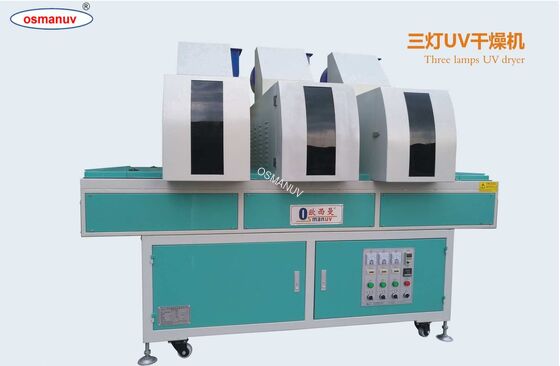

• Lamp Configuration: Customizable number of UV lamps (1 - 6 units) and individual lamp power (3kW - 12kW) to match your production capacity
• Curing Width: Customizable curing width (600mm - 1,600mm) to match your conveyor width and product dimensions
• Conveyor Speed: Customizable speed profiles (3 - 60 m/min) for different coating formulations and production requirements
• Cooling Method: Customizable air-cooled or water-cooled system based on your operating conditions
• Integration Options: Customizable connection points to seamlessly integrate with upstream coating equipment and downstream handling systems
• Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP) to sync with your master PLC or MES system
• Layout & Footprint: Fully customizable dimensions to fit your production floor space

• Comprehensive pre-installation site assessment and layout planning
• Professional on-site installation, commissioning, and calibration
• Thorough operator training and maintenance instruction
• Lifetime remote technical support and online diagnostics
• Preventive maintenance plans and global spare parts network
• UV lamp replacement and recycling services
• Energy savings reports and TCO analysis

• UV lamp modules and optical components shipped in shock-resistant, moisture-proof foam crates
• Entire system modularized and packed in heavy-duty, weatherproof wooden crates
• Special anti-static packaging for electronic and control components
• All shipments include detailed documentation and can be arranged via air or sea based on your requirements
