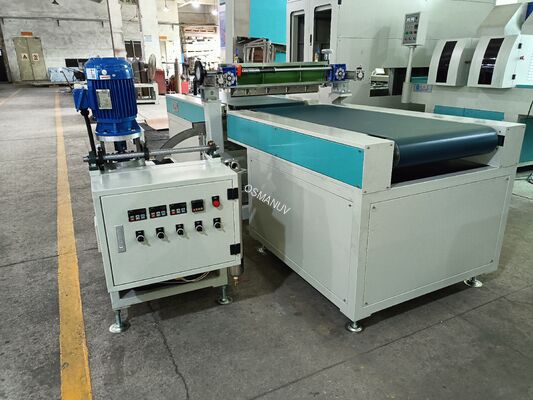

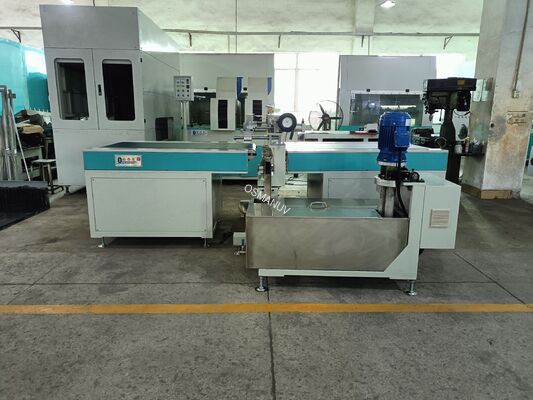

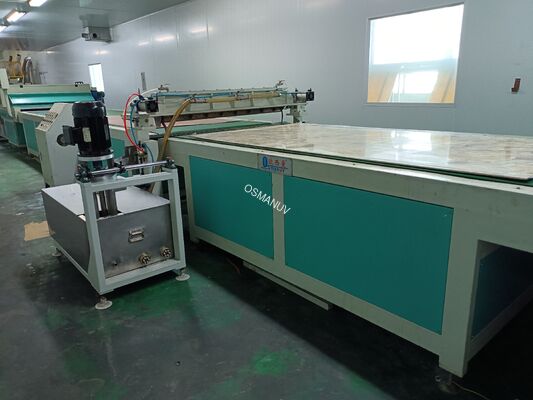

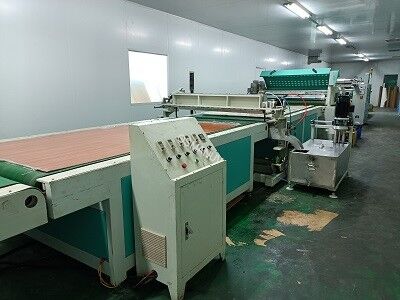

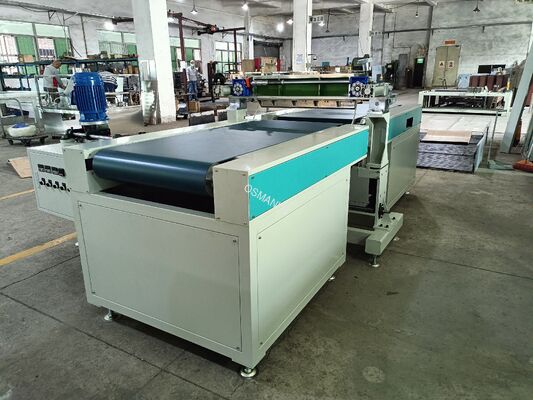

Fully Automated Scrape Coating Machine – Customizable System for Roll-to-Roll & Sheet Substrates
Fully Automated Scrape Coating Machine – Customizable System for Roll-to-Roll & Sheet Substrates
Fully Automated Scrape Coating Production Line – Customizable System for Roll-to-Roll & Sheet Substrates Product Overview Our Scrape Coating Machine is a versatile and high-performance system designed for applying precise, uniform coatings onto a wide range of substrates. Substrate Category Specific ...
Place of Origin:CHINA
Brand Name:OSMANUV
Certification:ISO9001
Model Number:Specification
Minimum Order Quantity:1 Set
Price:Negotiation
Product Custom Attributes
Highlight
Customizable System Scrape Coating Machine
,Fully Automated Curtain Coating Machine
,Roll-to-Roll & Sheet Substrates Coating Production Line
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation
Dimension(l*w*h):
Customized Size
Automatic Grade:
Automatic,Semi-Automatic,manual,Other
Driven Type:
Electric
Packaging Material:
Wood
Warranty:
1 Year
Usage:
Spot Uv Coating Machine,digital Prints Protect
Product Description
Fully Automated Scrape Coating Production Line – Customizable System for Roll-to-Roll & Sheet Substrates
Product Overview
Our Scrape Coating Machine is a versatile and high-performance system designed for applying precise, uniform coatings onto a wide range of substrates.
| Substrate Category | Specific Materials |
|---|---|
| Synthetic Leather | PU leather, PVC leather for automotive, furniture, footwear |
| Rubber Flooring | Rolled rubber sheets, rubber tiles, gym matting |
| PVC Flooring | LVT (Luxury Vinyl Tile), WPC, SPC flooring planks |
| PET Sheets | Transparent PET films and sheets for packaging and graphics |
| Slate / Stone Veneer | Engineered stone sheets, decorative slate panels |
| Decorative Laminates | High-pressure laminates, HPL, CPL sheets |
The scraping process uses a rigid doctor blade positioned over a backing roller or flatbed to spread coating materials evenly across the substrate surface.
- Coating uniformity (±2% thickness tolerance)
- High material efficiency (≥95% transfer rate)
- Smooth, pinhole-free finish
- Wide viscosity tolerance (50 - 8000 cps)
Supported coatings include water-based acrylics, PU dispersions, solvent-based lacquers, UV-curable resins, wear-resistant layers, and anti-slip topcoats. The system is fully customizable to meet specific production requirements, from pilot-scale R&D to high-speed mass production.
Technical Specifications
All parameters below are customizable based on substrate and production needs.
| Parameter | Specification / Range | Customization Options |
|---|---|---|
| Coating Method | Scrape (doctor blade): knife-over-roll or knife-over-table | Customizable blade configuration |
| Substrate Type | Rolls (PET, PVC, leather, rubber) or Sheets (slate, flooring, laminate) | Dual-use design with quick-change feed system |
| Substrate Width | 300 - 2200 mm (adjustable) | Customizable per product width |
| Substrate Thickness | 0.1 - 20 mm | Customizable blade clearance adjustment |
| Coating Thickness (Wet) | 0.01 - 3.0 mm | Customizable via blade gap and pressure |
| Coating Uniformity | ±2% thickness variation | Enhanced by closed-loop tension/speed control |
| Line Speed | 2 - 120 m/min (rolls) / 2 - 30 m/min (sheets) | Customizable speed range |
| Coating Material Viscosity | 50 - 8000 cps | Customizable per formulation |
| Drying Method | Hot air / IR / UV / NIR / Combination | Customizable drying configuration |
| Drying Temperature | 40 - 220°C (zone-independent PID control) | Customizable temperature profiles |
| Curing Method (UV) | 2 - 4 lamps, 8 - 16 kW total | Customizable lamp count and power |
| Control System | PLC with 15″ HMI touchscreen, 1000+ recipe storage | Customizable automation protocol |
| Power Supply | 380V / 400V / 460V, 50/60Hz, 3-phase | Configurable to local standards |
| Overall Dimensions (L×W×H) | Approx. 6,000 - 20,000 × 2,500 × 2,800 mm | Customizable line layout and footprint |
| Contact Parts Material | SUS304 stainless steel | Optional SUS316L, ceramic coating, PTFE coating |
| Safety Features | Emergency stops, light curtain, overload protection, door interlocks | Customizable per factory requirements |
| Compliance | ISO9001 | Additional certifications available |
Industry Applications
| Industry | Application | Coating Examples |
|---|---|---|
| Synthetic Leather | PU/PVC leather for auto upholstery, furniture, footwear, bags | Base coat, color coat, top coat, matte/gloss finishing |
| Rubber Flooring | Sports floors, gym mats, playground surfaces, industrial mats | Anti-slip coating, UV protection, color layer, protective topcoat |
| PVC / LVT Flooring | Luxury vinyl tiles, WPC/SPC planks, sheet vinyl | Wear layer, UV cured acrylic coating, anti-scratch layer, decorative overlay |
| PET Sheets | Packaging films, graphic films, membrane switch overlays, label stock | Adhesive coating, hard coating, anti-static, anti-fog, primer layers |
| Slate & Stone Veneer | Interior wall panels, decorative stone sheets, building facades | Protective gloss coat, anti-stain sealant, resin impregnation, color enhancement |
| Industrial Laminates | HPL, CPL, countertop sheets, furniture panels | Melamine coating, protective topcoat, decorative finish |
Customization Options
| Customization Item | Options Available |
|---|---|
| Coating Width | From 300mm to 2200mm+ |
| Substrate Handling | Roll-to-roll / Sheet-to-sheet / Dual-function (both) |
| Blade Type | Steel doctor blade / Ceramic blade / Polymer blade / Air knife |
| Number of Coating Stations | Single for single-layer / Multi-station for multi-layer coating |
| Drying System | Hot air / IR / UV / NIR / Combined |
| Drying Zone Length | 3m to 40m+ per layout |
| Coating Material Compatibility | Water-based / Solvent-based / UV-curable / Hot-melt |
| Automation Level | Manual / Semi-automatic / Fully automatic with robotic handling |
| Tension Control | Open loop / Closed loop with load cell feedback |
| Edge Guiding System | Optional optical or ultrasonic edge guide for rolls |
| Surface Effect | Gloss / Matte / Textured / Embossed (with embossing roller) |
| Explosion Protection | Available for solvent-based coatings |
| Line Layout | C-shape / L-shape / U-shape / Straight-line |
| Data Interface | OPC UA / PROFINET / Ethernet/IP for factory integration |
Key Features
High Material Transfer Efficiency - ≥95% coating utilization, significantly reducing coating waste
Precision Coating Control - Independent blade gap, angle, and pressure adjustments for ±2% thickness accuracy
Versatile Substrate Compatibility - Handles both flexible rolls and rigid sheets in one system
Wide Coating Viscosity Range - Process coatings from 50 to 8000 cps
Quick Changeover - Blade replacement and cleaning in under 15 minutes
Intelligent Recipe Management - Store 1000+ product recipes for fast changeovers
Energy-Efficient Drying - Multi-zone independent PID control reduces energy consumption
User-Friendly HMI - 15″ touchscreen with real-time process monitoring, alarms, and data logging
Heavy-Duty Construction - Industrial-grade steel frame and stainless steel contact parts
Comprehensive Safety - Light curtains, emergency stops, over-temperature protection, door interlocks
Support and Services
- Installation & Commissioning - On-site or remote video guidance for installation and startup
- Operation Training - Full training for operators and maintenance engineers at your facility or online
- Technical Support - 24/7 remote troubleshooting via phone, email, or video call
- Spare Parts Supply - Genuine OEM parts available with fast delivery
- Maintenance Programs - Scheduled preventive maintenance to maximize uptime and machine life
- Warranty - 1-year standard warranty with extended options available
- Upgrade Services - Control system upgrades, drying technology retrofits, and productivity enhancements
Packing and Shipping
| Item | Details |
|---|---|
| Packaging | Standard export wooden crates, ISPM-15 compliant (fumigation-free) |
| Protection | Anti-rust coating, moisture-proof wrapping, shock-proof packaging for sensitive components |
| Shipping Method | By sea (FOB preferred) |
| Delivery Time | 30 - 60 working days after deposit (depends on customization scope) |
| Documentation | Commercial invoice, packing list, bill of lading, installation manual, electrical diagrams |
Frequently Asked Questions
Q1: Can this machine handle both roll materials (like PET/PVC) and rigid sheets (like slate or flooring planks)?
A: Yes. The system is designed with a dual-feed option - an unwinding unit for rolls and a vacuum conveyor table for sheets. This is a customizable feature based on your production mix.
Q2: What coating materials are compatible?
A: The machine supports water-based acrylics, PU dispersions, solvent-based lacquers, UV-curable resins, and hot-melt adhesives. We can recommend blade materials and drying configurations customized to your coating formulation.
Q3: How accurate is the coating thickness on textured substrates like slate or embossed flooring?
A: The doctor blade system follows the substrate contour, ensuring consistent film thickness even on textured surfaces. The blade gap is customizable and adjustable online via the HMI to accommodate surface irregularities.
Q4: What is the typical line speed for flooring applications?
A: For PVC flooring with UV coatings, line speeds typically range from 5 - 30 m/min. For PET films, speeds can reach 100 - 120 m/min. Speed is customizable through servo drive parameters and drying capacity.
