UV LED Curing System for Heat-Sensitive Substrates
Instant On/Off, Low Heat, Customizable Wavelength & Intensity Profiles
Product Overview

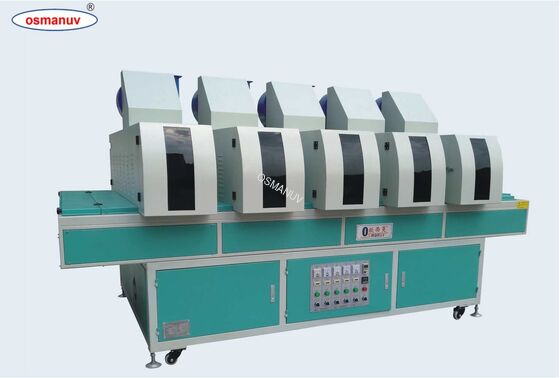

The UV Curing Machine (also called UV curing system) uses high-intensity ultraviolet light to instantly cure inks, coatings, and adhesives via photopolymerization. Unlike thermal drying, UV curing is instantaneous, energy-efficient, and requires minimal floor space. The machine converts liquid materials to solid state in seconds, delivering durable, scratch-resistant finishes.
The system is fully customizable - conveyor width, lamp type and count, wavelength, cooling method, and automation level - to fit printing, wood finishing, electronics, and industrial coating applications.
Technical Parameters
| Parameter |
Standard Value |
Customizable Range |
| Curing width |
6″ - 42″ (152 - 1067 mm) |
Customizable up to 72″ (1830 mm) |
| Conveyor speed |
0 - 20 m/min |
Customizable up to 60 m/min |
| Lamp type |
Mercury arc lamp |
Metal halide / LED / customizable |
| Wavelength options |
Full UV spectrum |
365 / 385 / 395 / 405 nm - customizable by photoinitiator |
| Lamp power density |
200 W/cm (standard) |
130 - 650 W/inch - customizable via variable ballast |
| Number of lamps |

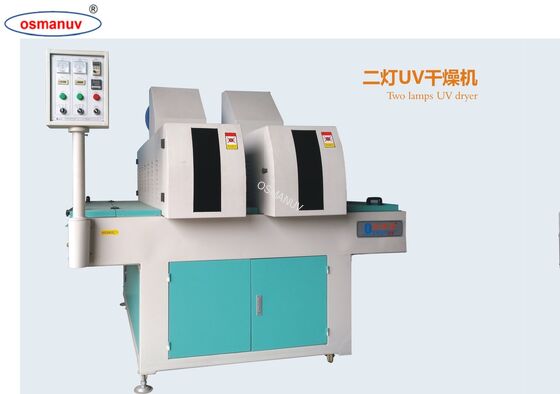

1 - 2 lamps |
1 - 6 lamps - customizable |
| Cooling method |
Forced air |
Water-cooled / dual-cool filter - customizable |
| Peak irradiance (LED) |
8 - 14 W/cm² |
Up to 15+ W/cm² (HD models) - customizable |
| Conveyor belt material |
Teflon-coated fiberglass |
Stainless steel mesh / PU - customizable |
| Control system |
PLC + HMI touch screen |
Siemens / Mitsubishi / customizable brand |
| Power supply |
380V / 50Hz (3-phase) |
110V - 575V, 50/60Hz - customizable |
Applications
- Printing industry - Screen printing, offset, flexo (inks & coatings on paper, film, packaging)
- Wood finishing - Clear coats, UV varnishes on MDF, furniture, flooring
- Electronics manufacturing - PCB conformal coating, component bonding
- Automotive - Body paint curing, wheel coating
- Medical devices - UV adhesive bonding of catheters, syringes
- Converting & tape industry - PSA tape production, film coating
- Customizable for: 3D printed parts, optical components, beverage can coating
Customization Options
All models support full customization:
- Curing width - from 6″ to 72″ (152mm to 1830mm)

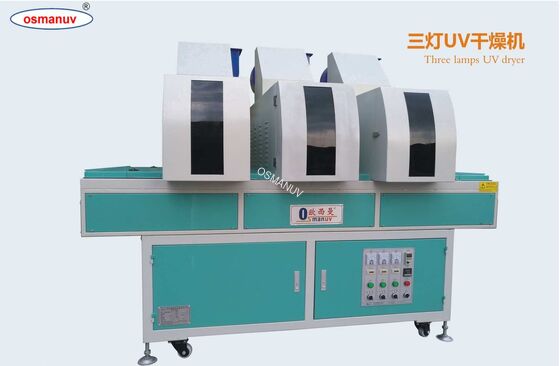

- Lamp configuration - single, dual, or multi-lamp arrays
- Lamp type & wavelength - mercury arc, metal halide, UV LED (365/385/395/405nm) - customizable to match coating chemistry
- Conveyor type - belt, roller, vacuum, dual-belt
- Cooling system - forced air, water-cooled, or dual-cool filter
- Integration - nitrogen inerting, IR pre-heat, light shielding for 3D parts
- Safety compliance - CE, UL, ATEX - customizable
- Control interface - Ethernet remote diagnostics, press speed tracking
Key Features
- Instant curing - liquid-to-solid in seconds, no drying time
- High peak irradiance - elliptical reflectors deliver 20% higher intensity
- Energy efficient - uses 5-10 feet of floor space vs. 100-200 feet for thermal ovens
- Low heat output - UV LED models ideal for heat-sensitive substrates
- Variable power control - adjust from 20% to 100% to match line speed
- Lamp life monitoring - UV hour indicator for scheduled replacement
- Recipe storage - recall curing profiles via HMI
- Safety interlocks - emergency stop, light shielding, ozone extraction
Support and Services
- 12 - 24 months warranty (extendable based on model)
- Project consulting - feasibility analysis and chemistry matching
- Installation & commissioning - on-site or remote supervision
- Remote troubleshooting - via WhatsApp, Teams, TeamViewer
- Spare parts supply - lamps, reflectors, belts stocked for 5+ years
- Operator training - included for industrial orders
- Customization engineering support - CAD drawings + PLC code adjustment included
Packing and Shipping
- Packing: Heavy-duty plywood crate + VCI anti-rust paper + foam padding
- Lamps - individually wrapped for shock protection
- Shipping: FOB (Shanghai / Shenzhen / Qingdao) or CIF by sea, air, or rail
- Lead time: 15 - 45 days based on customization level
Frequently Asked Questions
Q: What is the difference between mercury arc and UV LED curing?
A: Mercury arc lamps offer full UV spectrum and high power. UV LED has lower heat output, longer life (>20,000 hours), instant on/off, and no ozone - customizable to your chemistry and substrate.
Q: Can the UV curing machine handle heat-sensitive substrates like wood or plastic?
A: Yes. UV LED models operate with minimal heat, safe for wood, plastic, and film. We can also customize with cold-mirror technology and IR filtering.
Q: What wavelengths are available?
A: Standard: 365nm, 385nm, 395nm, 405nm. Selection is customizable based on your photoinitiator absorption spectrum.
Q: How is curing width adjusted?
A: Standard widths range from 152mm to 1830mm. We can customize to match your exact substrate width - up to 72″.
