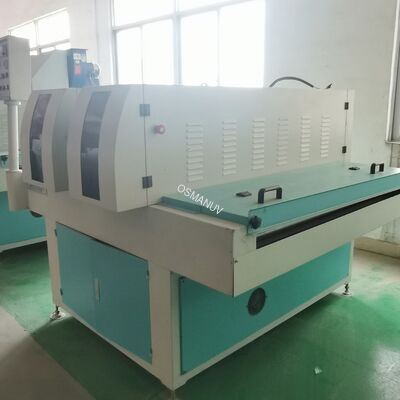

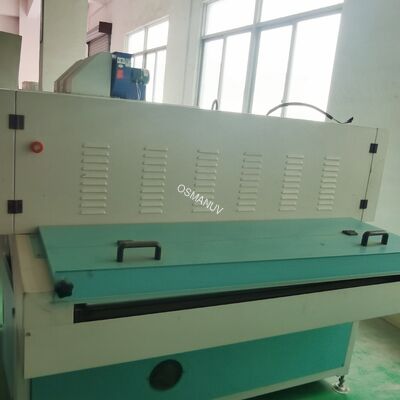

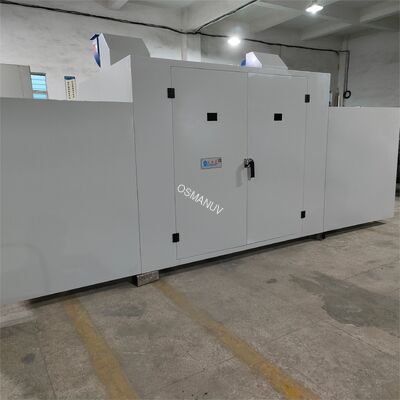

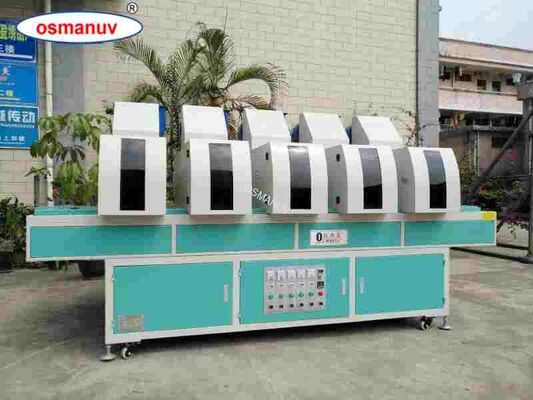

LED UV Curing System with Cold Cure Technology for Zero Thermal Damage and Customizable Wavelength

• Food Service Packaging: Curing water-based or UV barrier coatings on plates, bowls, clamshells, lunch boxes, cup carriers—ensuring instant curing and immediate downstream handling
• Egg Trays & Produce Trays: Curing moisture barrier coatings on heat-sensitive, thin-walled pulp products without thermal damage
• Electronics Packaging: Precision curing of anti-static coatings on trays for semiconductors, circuit boards, hard drives—maintaining flatness tolerances
• Industrial Packaging: Curing protective coatings on corner protectors, edge guards, pallet supports
• Medical Device Trays: Sterile barrier packaging with cleanroom compatibility and low-temperature processing
• Cosmetics Packaging: Premium molded fiber inserts and display trays—aesthetic and functional coating curing
• Pharmaceutical Blister Pack Inserts: Tablet trays requiring uniform, food-grade barrier coating curing

Materials compatibility: Suitable for UV-curable coatings formulated with appropriate photoinitiators—including bio-based polymers from lignin, rosin, and terpenes derived from pulp and paper industry by-products—with customizable parameter adjustments for different coating formulations, product geometries, and line speeds.

• Wavelength Selection: Customizable UV wavelength (365nm, 385nm, 395nm, 405nm) to match specific photoinitiator chemistry
• Irradiance Configuration: Customizable peak irradiance and power density to match coating formulation and line speed requirements
• Curing Chamber: Customizable chamber length (2-15 m), width, and zone count for optimal curing profiles
• Conveyor System: Customizable belt materials, speed profiles, and belt height adjustment
• UV Source: Customizable selection between LED array and mercury lamp systems based on application needs
• Cooling System: Customizable water-cooled or air-cooled thermal management for different production environments
• Line Layout: Customizable line configuration—compact placement for limited space or extended conveyor for large-scale production
• Cleanroom Compatibility: Customizable cleanroom integration—ISO 5 to ISO 8 with HEPA/ULPA filtration
• System Integration: Customizable I/O interfaces (Ethernet/IP, Profinet, dry contacts) for seamless integration with existing coating equipment, printing modules, and factory automation systems

• Cold Cure Technology: LED UV generates minimal heat (<40°C), eliminating thermal damage to heat-sensitive pulp substrates
• Energy-Efficient Operation: LED UV consumes ~70% less power than conventional mercury arc lamps, drastically lowering operational costs
• Instant On/Off: LED technology provides immediate startup with no warm-up or cool-down delay, reducing idle energy consumption
• Zero Ozone Production: LED UV emits no ozone, creating a safer work environment and reducing ventilation requirements
• Precision Wavelength Curing: Customizable wavelength output ensures efficient photopolymerization matching specific photoinitiator chemistry
• Long Lamp Life: LED arrays last >20,000 hours—no bulbs, reflectors, or shutters to replace for years
• Minimal Maintenance: No consumable lamp replacements, reduced cooling needs, and self-monitoring diagnostic systems
• PLC Control with Recipe Storage: Touchscreen HMI with recipe storage for different coating types and product geometries; real-time monitoring of irradiance, temperature, and conveyor speed; customizable curing profiles
• Modular Construction: Facilitates easy installation, maintenance, and future upgrades; supports customizable integration with existing production lines
• Energy Monitoring Dashboard: Real-time display of energy consumption and savings data for sustainability reporting
• Full Data Traceability: Batch logging of irradiance, conveyor speed, and temperature for quality control compliance and ISO certification audits
• Safety & Compliance: Built-in over-temperature protection, emergency stops, safety interlocks; ISO9001 certified

• Installation & Commissioning: On-site setup, calibration, and integration by experienced engineers (1-3 weeks on-site) with customizable support packages available
• Comprehensive Training: Hands-on training for operators, maintenance staff, and R&D personnel—3-7 days on-site training included
• Warranty & Maintenance: 1-year comprehensive warranty on LED arrays, PLC, and all electronics; extended warranty on LED arrays available; customizable preventive maintenance contracts available
• Remote Support: 24/7 remote troubleshooting via video call or IoT monitoring with VPN access to PLC for real-time diagnostics, software updates, and parameter tuning
• Process Development: Sample testing and process development—send your molded pulp products; we provide a full optimization report including curing parameters, energy savings, and quality results
• Technical Consultation: Free lifetime technical consultation and future upgrade services for evolving production needs
• Lifetime Support: Technical assistance via phone, email, or online chat for the lifetime of the equipment

• Packing: Securely packed in reinforced wooden crates with anti-rust film and waterproof wrapping; sensitive components (control panel, UV-LED modules, precision optics) shock-mounted with custom foam padding
• Standard Lead Time: 30 - 40 working days after order confirmation for standard configurations
• Custom Lead Time: Customizable delivery schedules—50-70 days for fully customized lines
• Shipping: Worldwide shipping via sea freight, air freight, or rail; FOB / CIF terms available
• Documentation: Full export documentation including technical manuals, electrical schematics, CE declaration, and customs forms provided
• Customizable Options: Export crating, custom labeling, destination port documentation, and special handling instructions available upon request
