Premium Soft-Touch Excimer Coating Line for Wood-Based Panels – Advanced Surface Finishing
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-ZFZ-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~40 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Uv Lamps: | 1 Pcs In Total | Application: | Dry Surface Paint |
|---|---|---|---|
| Wavelength: | 365nm | Safety Features: | UV Shield, Emergency Stop |
| Uv Machine Dimension: | 1300×420×750mm | Rubber Diameter: | 100mm |
| Machinetype: | UV Coating Machine | Coating Area: | Large Area |
| Highlight: | soft-touch excimer coating line,UV curing machine for wood panels,excimer coating surface finishing machine |
||
Product Description

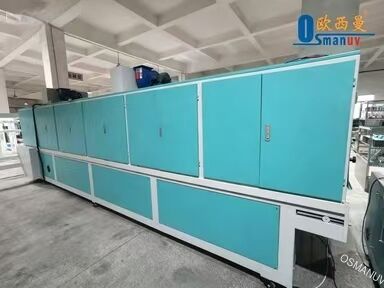

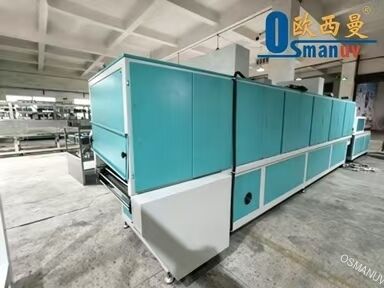

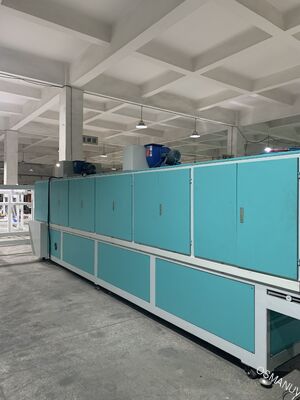

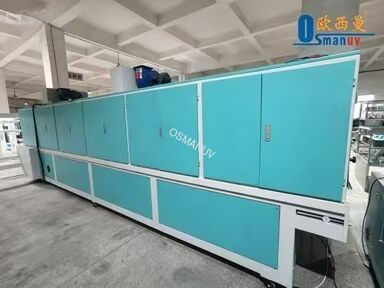

Premium Soft-Touch Excimer Coating Line for Wood-Based Panels
Advanced surface finishing system delivering consistent, elegant skin-feel finish on particleboard, MDF, and HDF panels.

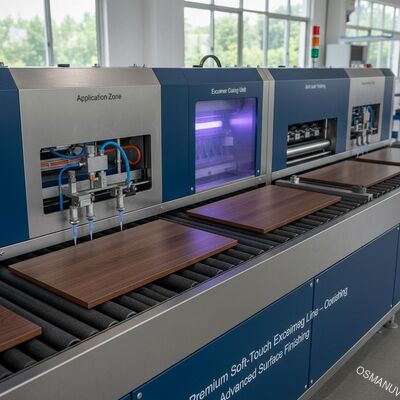

Production Line Composition
- Dual-belt infeed conveyor
- Dust extractor & ionizing bar
- Precision reverse roll coater (base coat)
- Excimer curing chamber with 4 lamps
- Nitrogen purging system
- Intermediate LED curing station
- Topcoat curtain coater
- Finishing UV tunnel
- Automatic quality inspection (camera)
- Stacking lift table
Product Overview
A premium-grade excimer line delivering a consistent, elegant skin-feel finish on particleboard, MDF, and HDF panels. The advanced 172nm excimer technology produces a super-matte, soft surface that resists fingerprints, water stains, and light abrasion - ideal for luxury furniture brands seeking a "velvet touch" aesthetic.
Technical Specifications
| Parameter | Specification |
|---|---|
| Panel width range | 600-1350 mm (customizable) |
| Panel thickness | 2-40 mm |
| Maximum line speed | 20 m/min (customizable up to 30 m/min) |
| Excimer lamp wavelength | 172 nm (others on request) |
| Gloss level achievable | 0.5-5 GU (adjustable) |
| Coating thickness precision | ±1.5 μm |
| Nitrogen consumption | 8-12 Nm³/h (recyclable) |
| Installed power | 95 kW |
| Compressed air | 6-8 bar, dry air |
Applications
- High-gloss replacement (matte skin-feel furniture)
- Bathroom vanities (moisture-resistant requirement)
- Children's furniture (safe, no VOCs)
- Hotel room panels & headboards
- Acoustic wall panels requiring soft surface
Customization Options
Fully customizable from panel width (up to 2100mm) to coating material (water-based, UV, or PU). We also offer customized lamp layout, automation level (semi/fully automatic), and integration with existing sanding or printing machines. Custom colors for machine body available.
Key Features
- Zero solvent emission - environmentally friendly
- No orange peel effect - perfect flatness thanks to excimer quenching
- Instant curing - no post-production waiting time
- Low heat input - suitable for heat-sensitive substrates
- Easy networking with MES/ERP systems (customizable protocol)
Support and Services
- Factory acceptance test (FAT) at our facility
- On-site commissioning & calibration
- 18-month warranty (extendable)
- Lifetime online technical documentation
- Custom training program for operators & maintenance staff
Packing and Shipping
- Anti-moisture vacuum packing for electronic parts
- Steel frame with shrink wrapping for main body
- Delivery: EXW, FOB, or CIF as required
- Shipping time: 30-50 days (customizable urgent order)
Frequently Asked Questions
Q: Can this line handle curved or profiled panels?
A: For curved panels we offer a customizable robotic excimer unit - please consult.
Q: Is the skin effect resistant to yellowing?
A: Yes, the excimer layer contains no photoinitiators, so it does not yellow under sunlight.
Q: What coating viscosity is compatible?
A: 50-500 cps; we can customize the coating applicator for high-viscosity materials.
