High-Precision Single Station Spin Coater – Customizable Ramp & Speed Profile for R&D Labs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Die Head: | Adjustable | Substrate: | Fiber Cement Board |
|---|---|---|---|
| Working Station: | Two | Heating Source: | Electric IR Heating |
| Material Compatibility: | Compatible With Various Pulp Molded Products | Drying Time: | Adjustable |
| Coating Method: | Spray Coating / Roller Coating | Machine Weight: | Around 500-800 Kg |
| Highlight: | single station spin coater,customizable ramp speed spin coater,R&D lab pulp coating machine |
||
Product Description

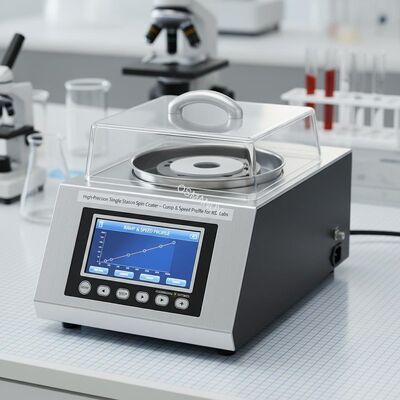

High-Precision Single Station Spin Coater – Customizable Ramp & Speed Profile for R&D Labs
Product Overview
Our single station spin coater is engineered for uniform thin film deposition of photoresist, polyimide, sol-gel, and nanoparticles. It features exceptional speed stability (< ±1% fluctuation), low vibration operation, and a chemical-resistant bowl. The compact design makes it ideal for R&D laboratories, pilot lines, and small-batch production environments.
Customizable options include: chuck size, bowl material (PTFE/PP/stainless steel), motor type (brushless DC/servo), and exhaust port position.
Technical Specifications
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Substrate size | 10 mm - 150 mm dia. | Up to 200 mm square |
| Speed range | 100 - 12,000 rpm | 50 - 15,000 rpm |
| Acceleration | 100 - 10,000 rpm/s | Customizable ramp profiles |
| Speed stability | ±0.5% | ±0.1% (servo motor) |
| Program steps | 10 programs, 20 steps each | Unlimited steps customizable |
| Chuck type | Vacuum chuck (aluminum) | PTFE / ceramic / custom pattern |
| Bowl material | Polypropylene (PP) | PTFE / stainless steel 316L |
| Exhaust port | Ø50 mm rear | Left / right / dual ports |
| Motor type | Brushless DC | Servo motor customizable |
| Display | 4.3" LCD | 7" HMI touch screen |
| Power | 220V/50Hz or 110V/60Hz | Available for any voltage |
Applications
- Semiconductor wafer coating (photoresist, ARC)
- OLED and quantum dot thin films
- Sol-gel and spin-on glass (SOG)
- Biosensor and polymer film deposition
- Perovskite solar cell fabrication
Also suitable for customizable high-viscosity or high-temperature processes.
Customization Options
- Bowl inner diameter and drain groove design
- Vacuum chuck shape for non-standard substrates (e.g., rectangular, broken wafers)
- Automatic cover with interlock
- Nitrogen blow-dry during spin
- Multiple dispense nozzle brackets
- Special coating programs (e.g., reverse spin, pulse spin)
Key Features
- High acceleration repeatability for uniform edge bead
- Real-time speed curve display and data export (CSV)
- Easy-swap chuck design without tools
- Chemical-resistant and seamless stainless steel or PTFE bowl
- Autofill rinse function for cleaning between runs
- Customizable recipe library for multiple operators
Support and Services
- Installation guide and calibration video included
- Remote troubleshooting within 24 hours
- 18 months warranty on motor and controller
- On-site training (available for customizable packages)
- Spare parts shipment from local warehouses (US/EU/Asia)
Packing and Shipping
- Packing: Foam-lined wooden case with anti-static bag
- Dimensions (carton): 55×45×45 cm
- Gross weight: approx. 22 kg
- Shipping: DHL / FedEx / UPS air freight; Sea freight available for bulk orders
- Customizable labeling and export packaging for drop-shipping
Frequently Asked Questions
Q1: Can the speed ramp be customized for multiple steps?
Yes. Up to 20-step profiles are customizable per recipe.
Q2: Does it fit 100 mm round or square substrates?
Yes. We offer customizable chucks for square, rectangular, and irregular substrates.
Q3: What is the lead time for a custom bowl material?
Standard units ship in 7 days. Customizable bowls (e.g., PTFE) require 3-4 weeks.
