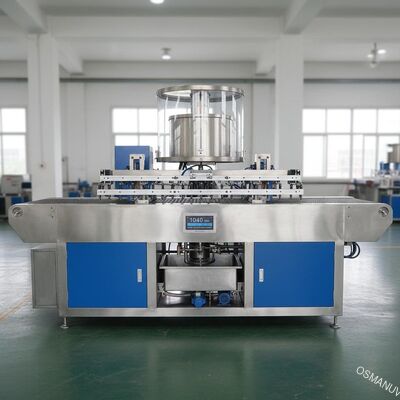

High-Speed Fully Automatic Spin Coater for Pulp Molding with 1040 mm Max Coating Width
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Curtain Heads: | 1/2 | Application: | Printing Industry, Packaging, Electronics |
|---|---|---|---|
| Max Coating Width: | 1040 Mm | Slitting Precision: | ±0.2mm |
| Coating Automation: | High Automation | Materialcompatibility: | Paper, Cardboard, Plastic, Metal |
| Warranty: | 1year | Coating Speed: | 0-10 Meters/min |
Product Description

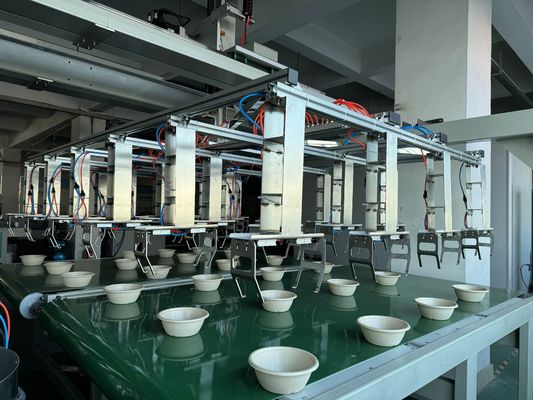

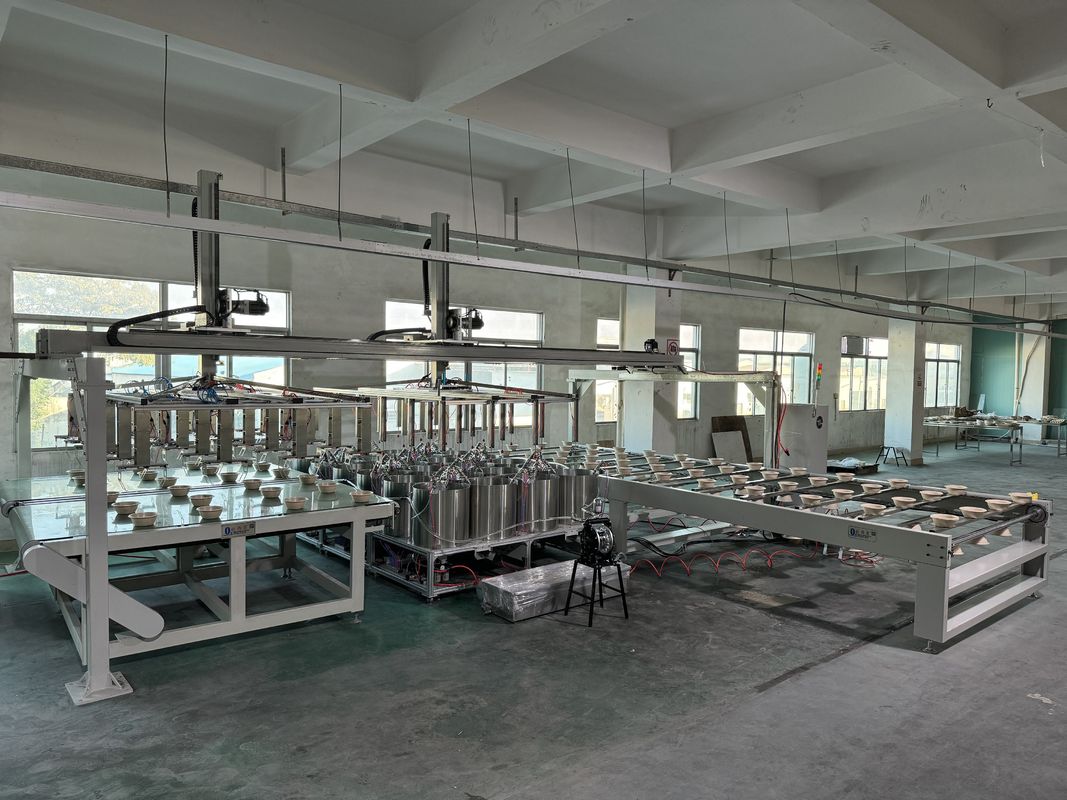

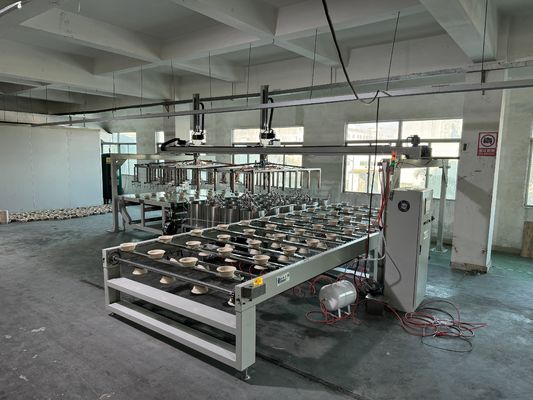

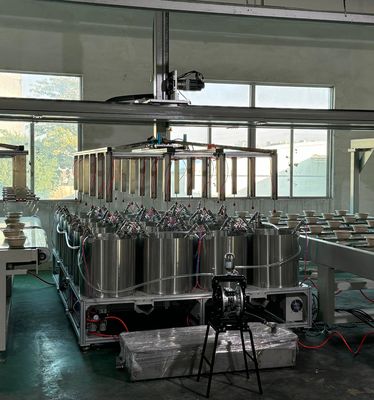

High-Speed Pulp Molding Spin Coater – Fully Automatic Production Line Integration
Product Overview
This high-speed spin coater is designed for water-based or oil-based coating application onto molded pulp products (trays, bowls, containers). Centrifugal force ensures uniform coating thickness (<2% variation). Output up to 30 pieces/min.
Technical Parameters
| Parameter | Value |
|---|---|
| Max. product size (L×W) | 400 × 300 mm (customizable) |
| Coating material | Water-based / oil-based (customizable) |
| Spin speed range | 100 - 1,500 RPM (adjustable) |
| Coating thickness | 0.02 - 0.50 mm |
| Drying method | Infrared / hot air (customizable) |
| Power supply | 380V / 50Hz (customizable) |
Applications

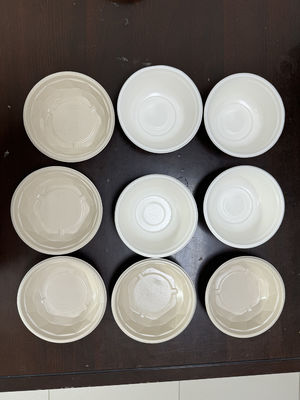

Disposable tableware coating (waterproof/oil-proof), egg tray surface treatment, industrial packaging pulp molding, and food-grade container inner coating.
Customization Options

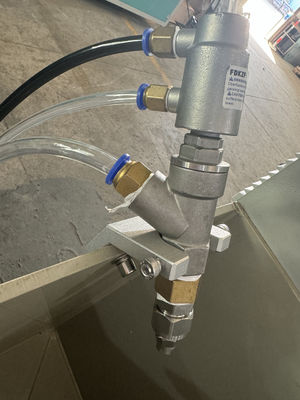

Customizable spin bowl diameter, spray nozzle type (airless / HVLP), conveyor width, drying zone length, and PLC brand.
Key Features
- Centrifugal edge removal to prevent dripping

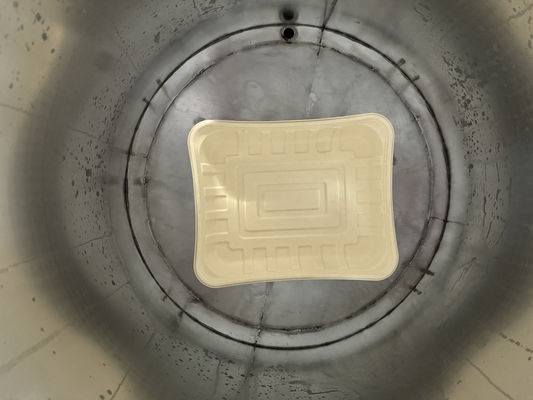

- Anti-corrosion stainless steel bowl
- Recipe storage for 100+ product types
- Quick-release tooling for mold change (<5 min)
Support and Services
On-site commissioning, operator training (2 days), remote diagnostics via VPN, and 12-month parts warranty.
Packing and Shipping
Stretch-wrapped with VCI anti-rust paper + plywood case. Shipped by sea (FCL) or air (express).
Frequently Asked Questions
Q: Can it coat deep-cavity bowls?
A: Yes, with customizable rotational profile and nozzle positioning.
