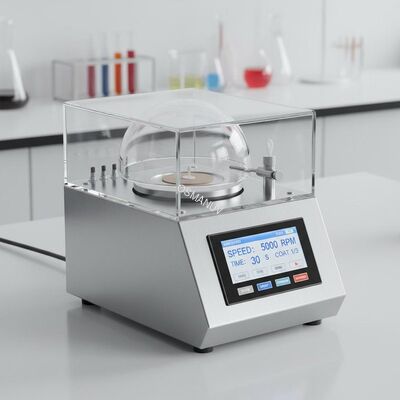

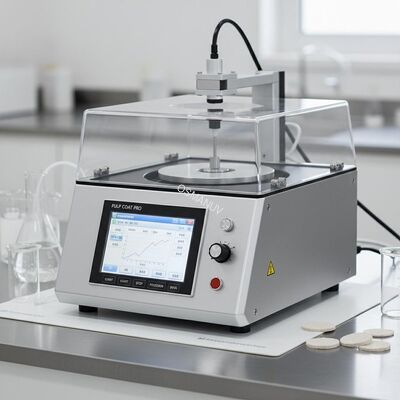

Benchtop Spin Coater for Pulp Molding R&D – Precision Coating & Data Acquisition for Lab Samples

This precision-engineered benchtop system is designed for applying uniform functional or decorative coatings onto experimental pulp molded substrates. It enables researchers to accurately explore coating parameters for developing new pulp-based products with highly customizable programming and fixture options.

• Rigid Benchtop Chassis with Vibration Damping – Minimizes external disturbances for uniform coating
• High-Torque Brushless Servo Motor – Provides stable, precise rotation across full speed range
• Customizable Sample Chuck / Fixture – Vacuum, mechanical, or custom 3D-printed options
• Integrated Digital Spin Controller – Up to 20 programmable recipes
• Safety Enclosure with Transparent Door – Allows visual monitoring during operation
• Optional Dispense System – Syringe pump or manual dispenser for coating application
• Data Logging Interface – USB / Ethernet for process data export
• Optional In-situ Thickness Monitoring – Via reflectance measurement

• Developing moisture-resistant, oil-resistant, heat-resistant, or decorative coatings for pulp molded prototypes
• Applying barrier layers or functional coatings in R&D settings
• Optimizing coating formulations and process parameters for pulp substrates
• Small-batch production of high-value, coated experimental products
• Quality assurance and process validation for new pulp molding packaging designs
• Academic research and university teaching laboratories

• Custom sample fixtures – Designed to hold specific 3D pulp shapes
• Extended speed ranges – Up to 15,000 RPM for specialized coatings
• Integration with specific fluid dispensing systems – Peristaltic pumps, precision syringe pumps, or automated pipettes
• Specialized software for data export – CSV, PDF, or custom format for traceability
• Material compatibility upgrades – Corrosion-resistant parts for specific coating chemistries
• Heating cover option – In-situ drying during and after spin cycles
• Cleanroom compatibility – ISO 5 / Class 100 configuration available

• Precision control – Exceptional control over spin speed, acceleration, and time for reproducible results
• R&D focused – Designed for parameter exploration and data logging
• Compact & benchtop – Fits easily into any laboratory environment
• Multi-step programmable recipes – Up to 10 steps per recipe for complex coating sequences
• Vacuum holding system – Securely holds irregular 3D pulp molded shapes without damage
• Data acquisition – Full process logging for traceability and regulatory compliance
• Safety interlock – Transparent cover with automatic shutdown when opened

• Lifetime free technical support – Email, phone, and video call assistance
• Remote commissioning – Engineer guidance via TeamViewer or video call
• Free sample testing – Send your pulp molded product for coating test report with parameter recommendations
• 2-year warranty – On motor, controller, and all electronic components
• Spare parts availability – Global shipping within 48 hours for critical items
• Operator training – On-site or remote training included

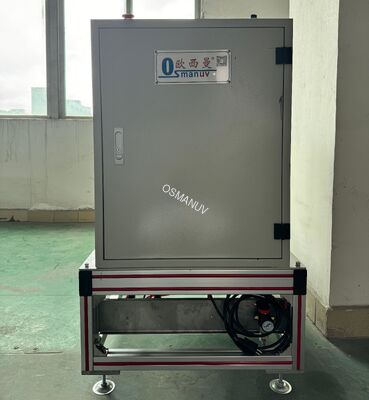

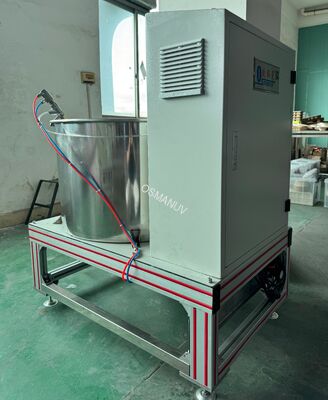

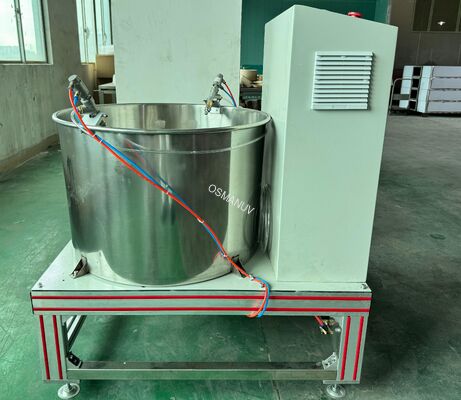

This integrated all-in-one system combines precision spin coating with in-situ drying in a single compact station, eliminating the need for a separate drying oven and reducing process time for developing water-resistant, oil-resistant, heat-resistant, and PFAS-free barrier coatings.

• Manual Loading Station – Ergonomically positioned for easy placement

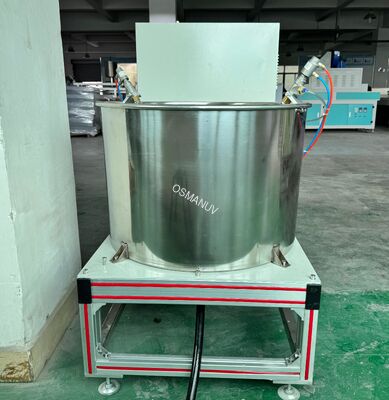

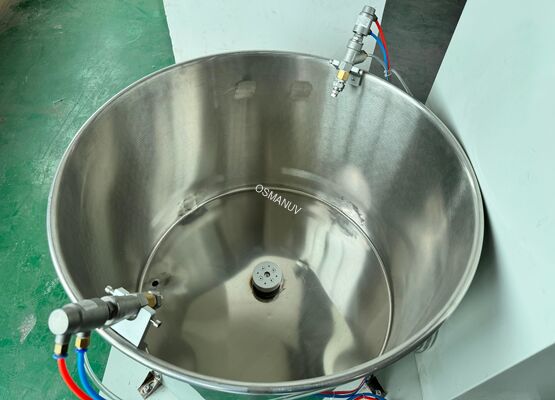

• Integrated Spin Coating Chamber – Programmable spin chuck with customizable fixture
• Integrated Drying Module – IR lamp or hot air nozzle (temperature adjustable up to 150°C)
• Precision Coating Dispense System – Syringe pump or peristaltic pump with volume control
• Touchscreen Control Console – PLC-based control with full recipe management
• Data Logging Interface – USB / Ethernet / RS485 for process data export

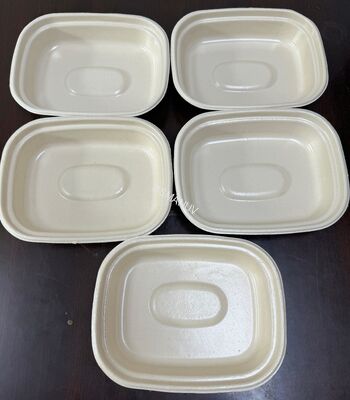

• Developing and testing water-resistant, oil-resistant, and heat-resistant barrier coatings for pulp molded food containers
• Rapid prototyping of coated pulp molded products
• Optimizing coating formulations and process parameters
• Quality assurance testing for barrier coating performance
• Small-batch production of coated pulp molded products for market trials
• Research into biodegradable and compostable barrier coatings

• All-in-one integration – Spin coating and drying in a single station
• PLC-based automation – Robust industrial control with full recipe management
• In-situ drying – IR lamp or hot air curing immediately after spin cycle
• Vacuum holding system – Securely holds irregular 3D pulp molded shapes
• Data logging – Full process traceability via USB/Ethernet/RS485
• Over-temperature protection – Safety cutoff for drying module
• Compact footprint – Fits easily into laboratory or pilot production environments

• Lifetime free technical support – Email, phone, and video call assistance
• Remote commissioning – Engineer guidance via TeamViewer or video call
• Free sample testing – Send your product and coating material for test report with optimized parameters
• 3-year warranty – On PLC, motor, drying module, and all electronic components
• Process optimization consulting – Our coating engineers can help develop optimal parameters
