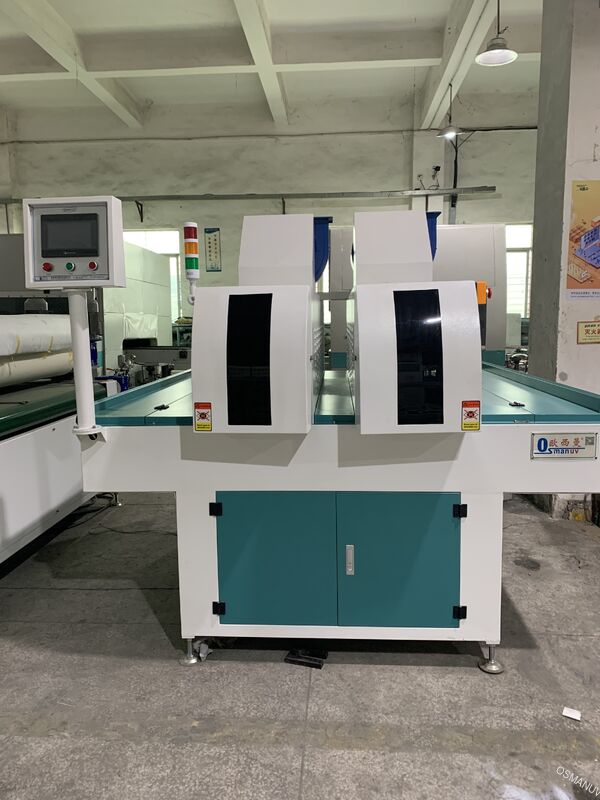

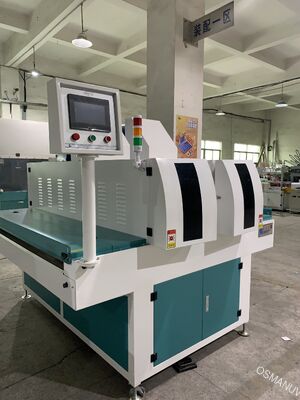

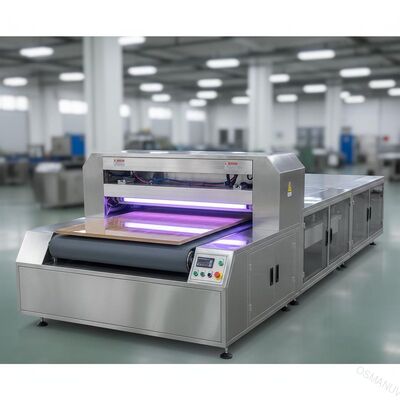

High-Gloss Finish Double Lamp UV Curing Machine for Wood Furniture Board Painting Line - Customizable Width
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-SDGH-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Controlsystem: | PLC Touch Screen | Light Source: | UV Light |
|---|---|---|---|
| Copper Plate Power: | 1.3/1.8KW | Max Sheet Size: | 1200mm×820mm |
| Warranty: | 12 Months | Type: | Curing Machine |
| Drying Way: | Ultraviolet - Curable | Conveying Speed: | 1-10m/min |
| Highlight: | High-gloss UV curing machine for wood,Double lamp UV curing machine,Customizable width UV curing machine |
||
Product Description
High-Gloss Finish Double Lamp UV Curing Machine for Wood Furniture Board Painting Line - Customizable Width
Production Line Integration
Our Double Lamp UV Curing Machine serves as a critical module within comprehensive flat sheet coating lines. The standard production line composition includes:
- Roller Conveyor / Feeding Table: Automated board input system
- Dust Removal Machine: Brush and air knife combination for substrate cleaning
- Roller Coater / Precision Coating Machine: Even application of UV oil-based paint
- Leveling Machine: Ensures smooth surface coating before curing
- Double Lamp UV Curing Machine: Core equipment for instant drying
- Cooling Section: Temperature reduction post-curing
- Automatic Stacker: Finished product collection system
The placement of the double curing machine can be adjusted based on "wet-on-wet" or "wet-on-dry" coating process requirements.
Product Overview
This Double Lamp UV Curing Machine is engineered for rapid curing of oil-based UV paints (including UV polyester and UV polyurethane) on flat furniture panels such as solid wood, MDF, particleboard, and plywood. Utilizing high-intensity ultraviolet light, it triggers instant photochemical reactions that transform liquid coatings into solid, high-gloss films within seconds. The equipment significantly enhances surface hardness, scratch resistance, and chemical resistance of furniture components.
Featuring a robust conveyor system and highly reflective aluminum alloy lamp housing, it maximizes energy efficiency and is designed for 24/7 continuous industrial operation. The machine is fully customizable to match specific production line speeds and panel dimensions.
Technical Specifications
Standard specifications for our Double Lamp Curing Machine. Customization is available for unique production requirements.
| Parameter | Standard Model A | Standard Model B | Customizable Range |
|---|---|---|---|
| Model Number | SK-C650-2L | SK-C1300-2L | Customizable Prefix |
| Working Width | 650 mm (25.6 inches) | 1300 mm (51.2 inches) | 300mm - 2500mm |
| Workpiece Thickness | 2 - 80 mm | 2 - 80 mm | 2 - 120 mm |
| UV Lamp Power | 5.6 kW x 2 Lamps | 9.6 kW x 2 Lamps | 5.6kW - 15kW per Lamp |
| Lamp Type | High-pressure Mercury Lamp | High-pressure Mercury Lamp | Mercury / Halogen / LED optional |
| Conveyor Speed | 0 - 30 m/min (Variable) | 0 - 20 m/min (Variable) | 0 - 50 m/min |
| Conveyor Material | Stainless Steel Mesh / Belt | Stainless Steel Mesh / Belt | Teflon / Roller type optional |
| Cooling System | Air Cooling (Blower) | Air Cooling (Blower) | Water-cooled / Chiller optional |
| Total Power | Approx. 15 kW | Approx. 23 kW | Dependent on configuration |
| Power Supply | 380V 50Hz 3Phase | 380V 50Hz 3Phase | 220V / 440V / Customizable |
| Machine Dimensions (LxWxH) | 2500 x 1400 x 1400 mm | 2500 x 1900 x 1400 mm | Customizable |
Applications
This double lamp UV curing equipment is primarily used in woodworking and furniture manufacturing:
- Solid Wood Furniture: Curing of sealing primers and topcoats on solid wood panels
- Panel Furniture: High-gloss and matte finish curing on MDF and particleboard
- Engineered Flooring: Hardening of wear-resistant UV coatings on floor planks
- Door Skins & Decorative Panels: Curing of color renders and protective layers on flat doors and wall panels
- Specific Use Cases: Ideal for curing "white paint" and "putty fillers" requiring specific light spectra for deep curing
Customization Options
Our double lamp UV curing machines are highly customizable to meet unique factory requirements:
- Lamp Configuration: Choice between standard Mercury lamps, Halogen lamps for deep curing of pigmented paints, or LED lamps for energy-efficient applications
- Working Dimensions: Customizable machine width for oversized panels and customizable inlet/outlet height for thick workpieces
- Control System: PLC touch-screen control system upgrade for precise parameter recall and MES integration

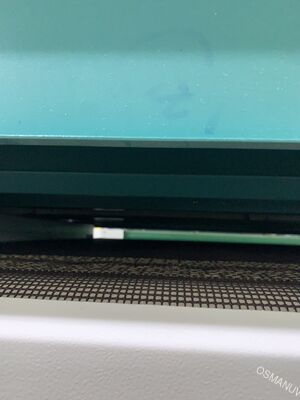

- Conveyor Type: Stainless steel mesh (better heat dissipation) or rubber rollers (non-slip feeding)
- Cooling Method: Enhanced cooling packages for heat-sensitive substrates
Key Features
- Instant Curing: Transforms liquid paint into solid film in seconds, drastically reducing production time
- Independent Lamp Control: Each lamp has independent switch and intensity adjustment (50%-100%) for energy savings
- Stable Power Supply: High-quality capacitors and transformers ensure stable UV lamp output and extended lamp life (800-1000 hours)

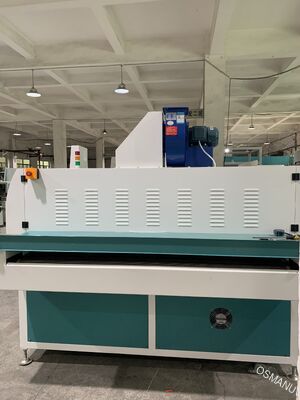

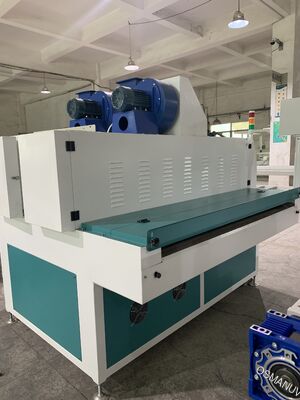

- Efficient Cooling System: Direct-exhaust cooling removes heat and ozone, preventing thermal deformation
- Superior Reflection: Anodized aluminum alloy reflectors with high reflectivity focus maximum UV energy
- Durable Build: Sturdy steel frame construction ensures vibration-free operation at high speeds
Support and Services
Pre-Sales Support: Technical consultation and sample testing available with facility demonstrations
After-Sales Service:
- 24/7 online technical support
- On-site installation guidance and commissioning available
- Detailed user manual and wiring diagram provided
Warranty: 1-year warranty on whole machine with lifetime supply of spare parts (UV lamps, quartz shields, capacitors)
Training: Free operator training on settings adjustment and daily maintenance
Packing and Shipping
Packing: Machine wrapped in stretch film for moisture protection and packed in reinforced export wooden crate for safe transit
Shipping:
- Port of Loading: Shenzhen / Guangzhou / Shanghai (as per client request)
- Lead Time: 15-25 working days after order confirmation
- Shipping Method: Available by sea (FCL/LCL), air freight, or truck express
Frequently Asked Questions
Q1: Can this machine cure white or pigmented UV paints?
Yes. For pigmented coatings like white UV paint, we recommend customizing with Halogen lamps or specific high-power mercury lamps that provide the longer wavelength energy required to penetrate and cure pigments effectively.
Q2: How does the cooling system prevent heat damage to the wood?
Our machine features a dual cooling system: (1) Built-in air cooling that circulates air within the lamp housing, and (2) an exhaust system that draws heat away from the curing chamber, ensuring controlled surface temperature.
Q3: What is the standard conveyor speed for your double lamp curing machine?
The standard speed is variably adjustable from 0 to 30 meters per minute, customizable based on coating type and production throughput requirements.
Q4: Is the machine difficult to install?
Not at all. The machine arrives pre-assembled and tested. Installation involves positioning, connecting power supply (380V/220V), and height adjustment. We provide detailed manuals and online video support.
Q5: Can the machine handle different panel thicknesses?
Yes. The inlet height is adjustable. Standard models handle 2mm to 80mm thicknesses, and this range can be customized further to meet specific needs.
