Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying

Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying

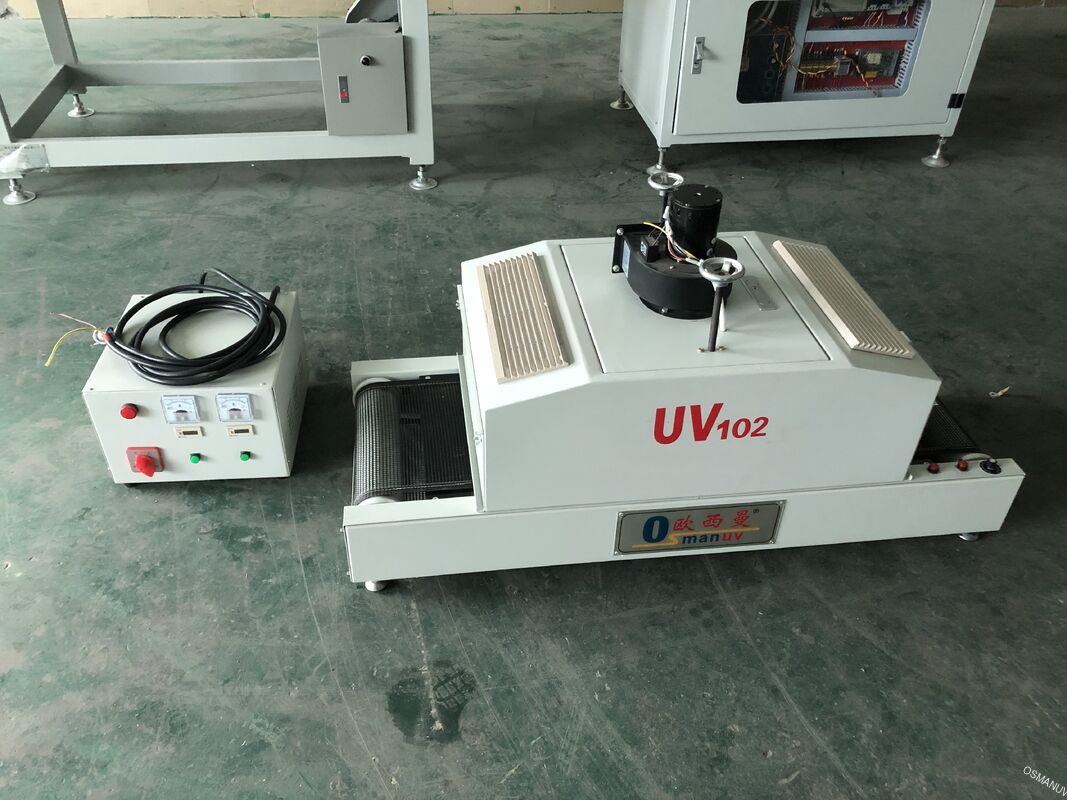

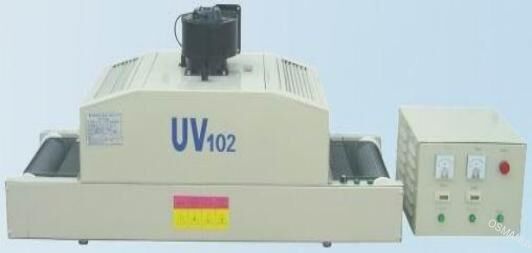

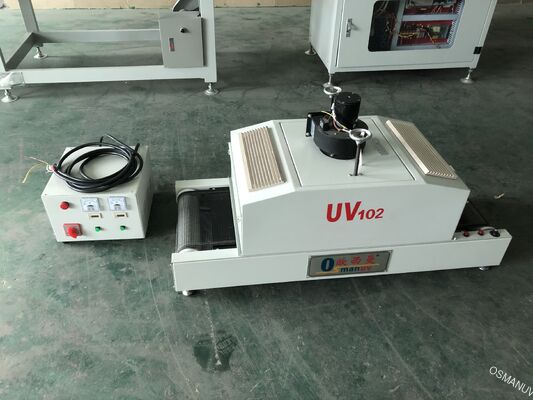

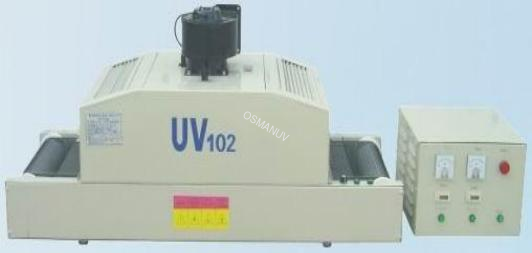

Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying This UV curing system is engineered with energy efficiency as a core principle. Featuring a high-precision German Alanod reflector, it delivers a 38% increase in UV light utilization compared to standard systems, ...
Place of Origin:CHINA
Brand Name:OSMANUV
Certification:ISO9001
Model Number:OSM-UV-102T
Minimum Order Quantity:1 set
Price:Negotiation
Product Custom Attributes
Highlight

UV curing machine for plastic varnish

,

energy efficient UV curing system

,

38 percent UV reflective dryer

Voltage:
220V/50HZ
Power:
2.15KW
Condition:
New
Dimension(l*w*h):
Customized Size,1220mm Long × 470mm Wide × 460mm High
Inlet Or Outlet Height:
130mm
Coating Speed:
Adjustable,1-10m/min
Conveyor Belt Width:
300 Mm
Warranty:
1 Year
Product Description
Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying
This UV curing system is engineered with energy efficiency as a core principle. Featuring a high-precision German Alanod reflector, it delivers a 38% increase in UV light utilization compared to standard systems, resulting in lower energy costs and reduced environmental impact. The system ensures rapid and complete drying of clear varnishes and topcoats on plastic surfaces, producing a high-gloss, durable finish that resists yellowing.
Technical Specifications
Parameter Specification
Key Advantage 38% Higher UV Efficiency (Alanod Reflector)
UV Lamps 2 x 1KW Mercury Lamps
Lamp Life 800-1000 Hours (Guaranteed)
Conveyor System Teflon Mesh Belt (1-10 m/min)
Housing Material 1.5mm Cold-Rolled Steel (Spray-Baked)
Electrical Safety Leakage Breaker, Fuse (International Standards)
Applications
Perfect for achieving high-quality, clear coat finishes on ABS, PC, PMMA plastic panels, cosmetic cases, and automotive interior trims.
Customization Options
The machine's cooling system and electrical configuration can be customized to suit specific operational environments and power supply stability requirements.
Key Features
  • Significant reduction in electricity consumption for curing
  • Enhanced UV uniformity prevents under-cured or over-cured spots
  • Durable Teflon conveyor belt withstands high temperatures and UV exposure
  • Complies with international electrical safety standards
Support and Services
  • Comprehensive warranty and energy efficiency performance support
  • Guidance on lamp replacement schedules to maintain peak efficiency
  • Preventive maintenance checklists provided
Packing and Shipping
Robust export packaging ensures safe transit. Standard lead time is 15 days. FOB Terms.
Frequently Asked Questions
Q: How does the 38% efficiency saving calculate in real-world terms?
A: It means you can often achieve the same curing result at a lower power setting or faster line speed, directly reducing your kWh consumption per part by a significant margin.
Q: Is the reflective sheet easy to clean or replace?
A: Yes, the reflector is designed for easy access and maintenance. Keeping it clean is part of standard maintenance to sustain high-efficiency performance, and it is a customizable component that can be replaced if needed.
