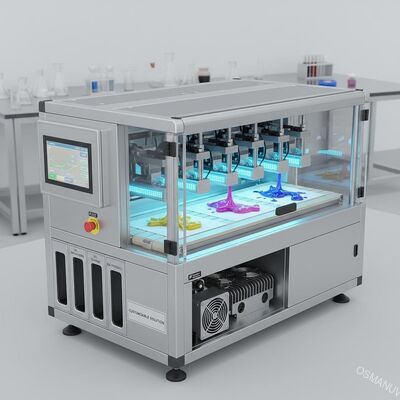

Cold Cure LED UV Curing System for Heat-Sensitive Substrates，R&D, Oil Paint Curing- Customizable Solution

Cold Cure LED UV Curing System for Heat-Sensitive Substrates，R&D, Oil Paint Curing- Customizable Solution
Cold Cure LED UV Curing System for Heat-Sensitive Substrates, R&D, Oil Paint Curing - Customizable Solution This Cold Cure LED UV Curing System is specifically engineered for instantaneous curing of solvent-based coatings on heat-sensitive materials like furniture panels and clothing labels. It ...
Place of Origin:China
Brand Name:OSMANUV
Certification:ISO9001

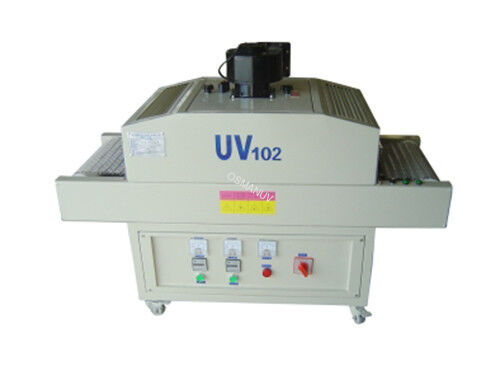

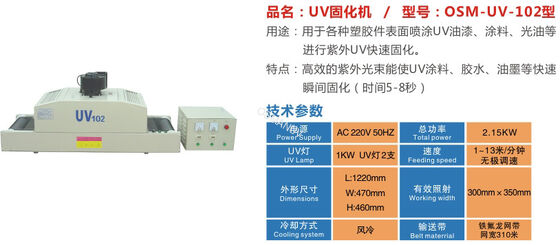

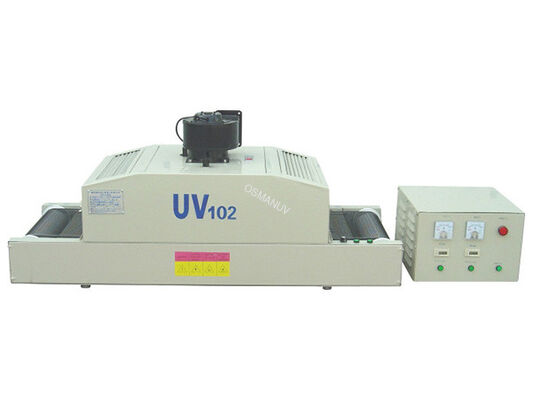

Model Number:OSM-UV-102
Minimum Order Quantity:1 set
Price:Negotiation
Product Custom Attributes
Highlight

Cold Cure UV curing system

,

LED UV curing for heat-sensitive substrates

,

Customizable UV curing machine for oil paint

Machinetype:
UV Coater
Coating Area:
Large Area
Total Power:
2.15kw
Applicable Industries:
Manufacturing Plant
Application:
Paper, Cardboard, Plastic, Metal Sheets
Core Components:
Engine, Motor
Coating Automation:
High Automation
Working Wide:
300 * 350 Mm
Product Description
Cold Cure LED UV Curing System for Heat-Sensitive Substrates, R&D, Oil Paint Curing - Customizable Solution
This Cold Cure LED UV Curing System is specifically engineered for instantaneous curing of solvent-based coatings on heat-sensitive materials like furniture panels and clothing labels. It generates minimal infrared radiation, preventing heat damage to delicate substrates while ensuring a hard, durable, and scratch-resistant finish. The system is fully customizable to match your production line requirements.
Production Line Composition
  • Infeed Conveyor
  • LED UV Curing Module with Water Cooling System
  • Power Supply & Control Cabinet
  • Outfeed Conveyor
  • PLC with Touch Screen HMI
Technical Parameters
Parameter Details
Model LCU-Cold Series (Fully Customizable)
LED Wavelength 365nm, 385nm, 395nm, 405nm (Selectable)
UV Intensity Up to 8000 mW/cm² (Peak, Customizable)
Effective Cure Width 300mm, 600mm, 1000mm (Customizable)
Conveyor Speed 0-50 m/min (Adjustable)
Power Supply 380V/220V (Customizable)
Cooling System Closed-loop Water Cooling
Application
Instant curing of solvent-based coatings on furniture panels, MDF, clothing labels, plastic films, and other heat-sensitive substrates.
Customization
We offer extensive customization including curing width, UV wavelength and intensity, conveyor type, and integration with your existing coating line.
Features
  • Cold cure process protects heat-sensitive materials
  • Instantaneous curing significantly boosts production speed
  • Fully customizable UV intensity and wavelength
  • Low operating cost & energy consumption
  • Long LED lifespan (>20,000 hours)
Support and Services
We provide installation supervision, operator training, remote technical assistance, and readily available spare parts.
Packing and Shipping
The system is securely packed in export-worthy wooden cases for safe ocean freight and land transportation.
Frequently Asked Questions
Q: Can this system cure thick layers of solvent-based coating?
A: Yes, the system can be customized with higher intensity LEDs and optimized wavelength to ensure complete curing through the coating layer.
Q: What is the lifespan of the LED modules?
A: Typical lifespan exceeds 20,000 hours, significantly reducing maintenance costs compared to traditional UV systems.
