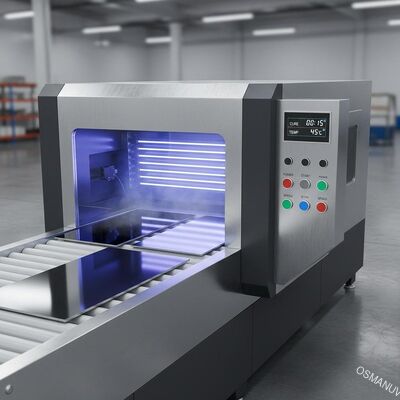

Aluminum Panel UV Curing Machine Fast Drying System for Metal Surface Coatings
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-UV-1320Ⅱ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 35 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||

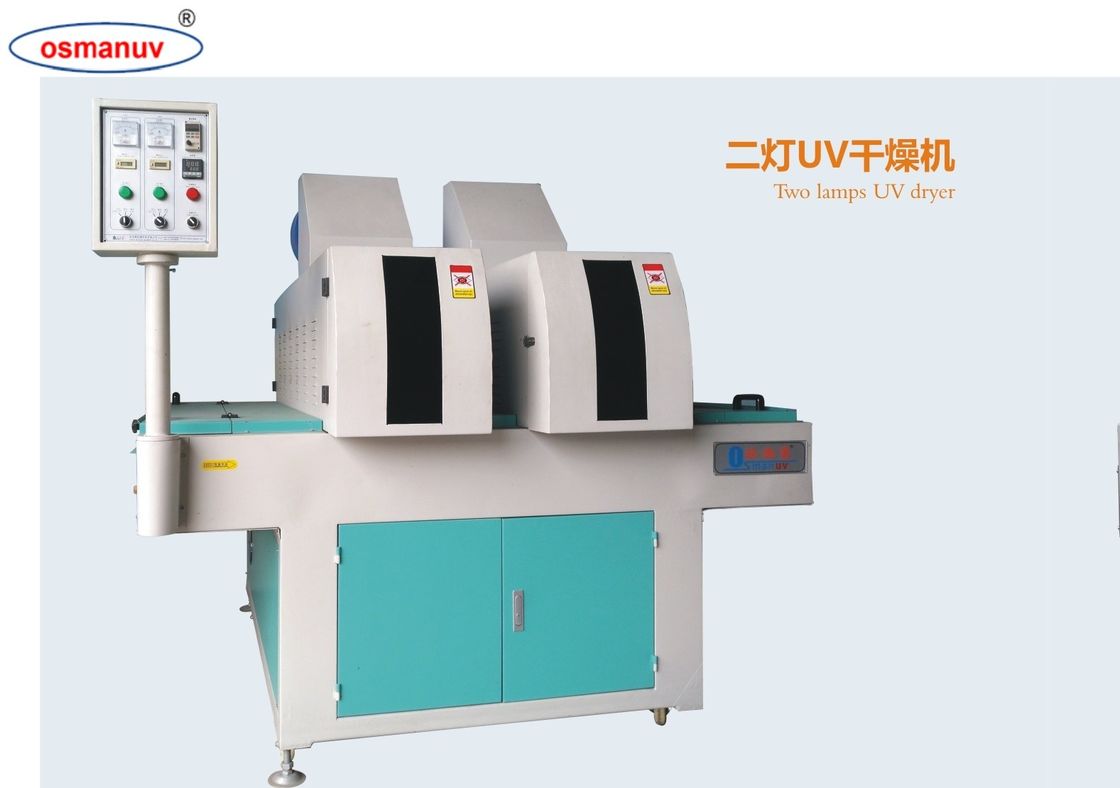

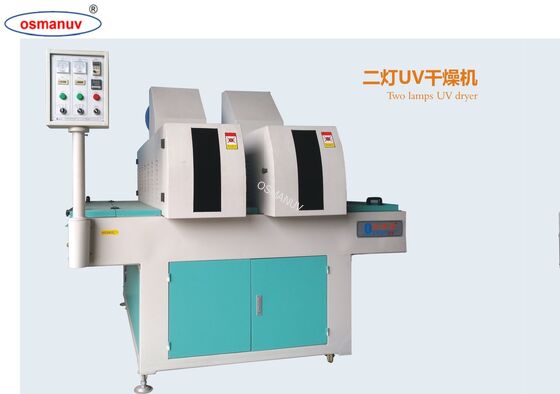

| Production Name: | Two Lamps UV Curing Machine | Mechanical Size: | 1900mm Long × 2230mm Wide × 1410mm High. (Subject To Actual Size) |
|---|---|---|---|
| The Height From The Ground To The Conveyor Belt: | 850-900mm Adjustable | Conveying Method: | From Left To Right |
| Power Supply Voltage: | 380V 50HZ, Three-phase Five-wire System | Condition: | New |
| Warranty: | 1 Year | Speed: | 1-15 M/min |
| Highlight: | aluminum panel UV curing machine,UV coating machine for metal,fast drying UV curing system |
||
Product Description
Aluminum Panel UV Curing Machine Fast Drying System for Metal Surface Coatings
Product Overview
This specialized two lamp UV curing system is engineered for aluminum panels and metal substrates, featuring enhanced cooling systems and precise intensity control. The machine delivers consistent curing performance for various metal coatings while preventing heat-related substrate deformation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-UV-1320Ⅱ |
| Lamp Type | 2 British PRIMARC 10KW 1387mm mercury lamps |
| Cooling System | Forced air + water cooling |
| Intensity Control | 0-100% adjustable |
| Wavelength Range | 200-450 nm |
| Control Interface | Touch screen with recipe storage |
Application
Curing of UV coatings on aluminum composite panels, metal sheets, automotive parts, and industrial metal components requiring high-quality surface finishing.
Customization Options
- Customizable cooling system configuration
- Customizable intensity control ranges
- Customizable safety interlock systems
Key Features
- Advanced thermal management
- Precise intensity adjustment
- Robust metal construction
- Minimal heat transfer to substrate
Support and Services
- Technical consultation service
- Process optimization support
- Regular maintenance programs
- Emergency repair service
Packing and Shipping
- Custom-sized protective crate
- Component-specific packaging
- Detailed installation manual
Frequently Asked Questions
Q: How does it prevent aluminum panels from overheating?
A: The integrated water cooling system and efficient ventilation maintain substrate temperature below 60°C during curing.
