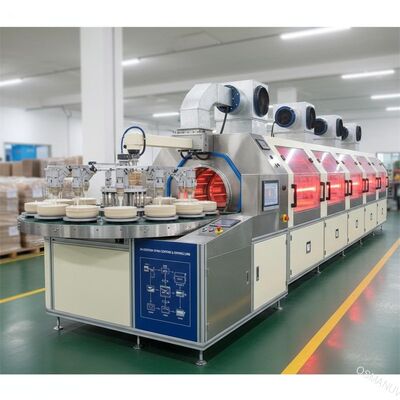

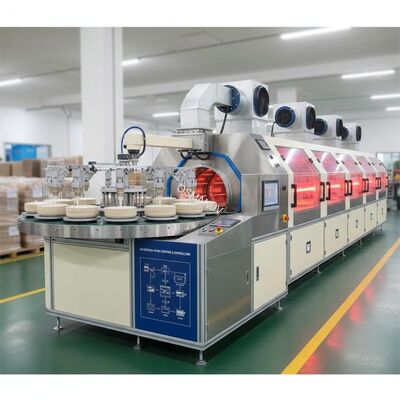

24-Station Spin Coating Line for Pulp Molded Waterproofing with High-Efficiency Drying System for Bagasse and Bamboo Tableware
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-XT-3200T |
| Document: | Version 2.0 of 24-station s...on.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | 24-station Spin Coating Line | Voltage: | 220V,380V,380V/220V,220V/380V,380V/50HZ |
|---|---|---|---|
| Condition: | New | Dimension(l*w*h): | Customized Size,3780mm L ×2140mm W × 1080mm H. |
| Warranty: | 1 Year,one Year,12 Months | Power: | 3KW,16KW,65.3kw,4.2kw,0.75KW/220V/50HZ |
| Coating Speed: | Adjustable,150-500m2/h,0-5 Meters/min,2.5m/min,can Be Set By Yourself | Coating Width: | 650mm,910mm Coating,440mm |
| Highlight: | 24-station spin coating line,pulp molding waterproofing machine,bagasse bamboo tableware drying system |
||
Product Description

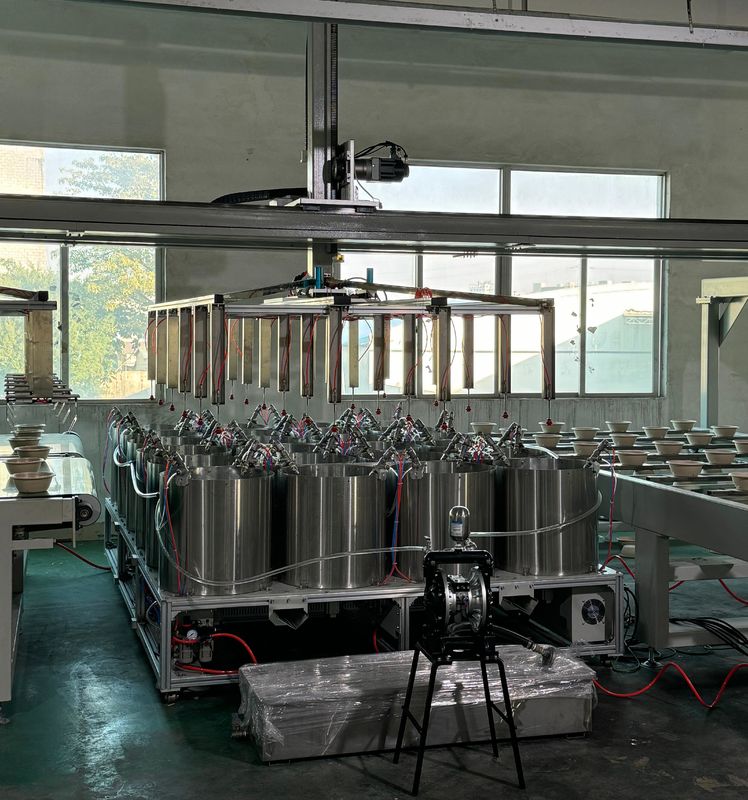

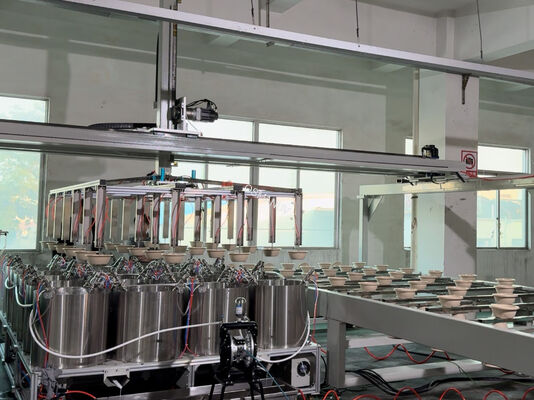

24-Station Spin Coating Line for Pulp Molded Waterproofing

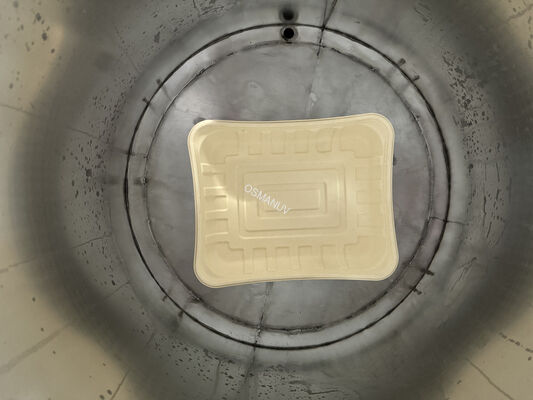

This 24-station automated spin coating line specializes in applying uniform waterproof coatings to pulp molded products made from bagasse, bamboo fiber, and straw materials. The system ensures complete coverage and excellent adhesion while maintaining high production efficiency of 800-1200 pieces per hour.
Production Line Composition
- Automatic loading conveyor

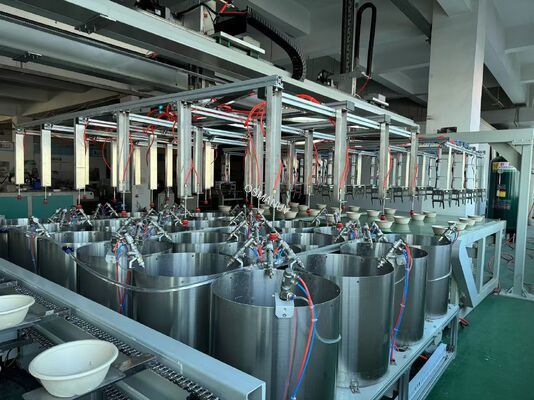

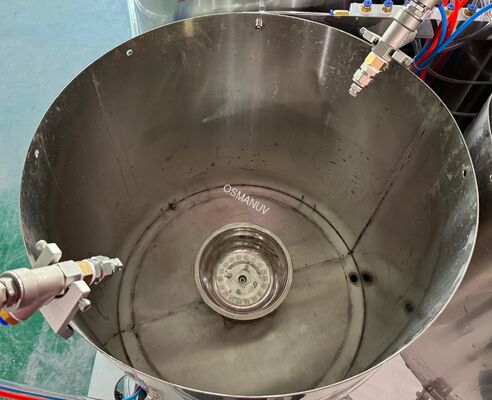

- 24-station rotary indexing table with vacuum chucks
- Multi-stage drying tunnel (IR pre-heating + hot air curing)
- Cooling section
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-XT-3200T |
| Suitable Materials | Bagasse, Bamboo, Straw, Wheat Fiber |
| Stations | 24 (Customizable to 16-32 stations) |
| Coating Type | Water-based barrier coatings |
| Drying System | 3-zone IR + Hot Air (Customizable) |
| Line Speed | 5-20 m/min |
| Power | 380V/50Hz/3Phase |
| Control | PLC + HMI Touch Screen |
Application
Waterproof coating application for disposable tableware, food containers, and packaging products made from plant fibers.
Customization Options
- Customizable station number and layout
- Customizable drying tunnel length and temperature zones
- Customizable coating application methods
Key Features
- High production capacity
- Excellent coating uniformity
- Energy-efficient drying system
- Minimal material waste
Support and Services
- Installation supervision
- Operator training
- 1-year warranty
- Remote technical support
Packing and Shipping
- Weatherproof wooden crates
- Professional export packaging
- Fumigation-free materials
Frequently Asked Questions
Q: What's the maximum production capacity?
A: Up to 1200 pieces per hour depending on product size and coating requirements.
