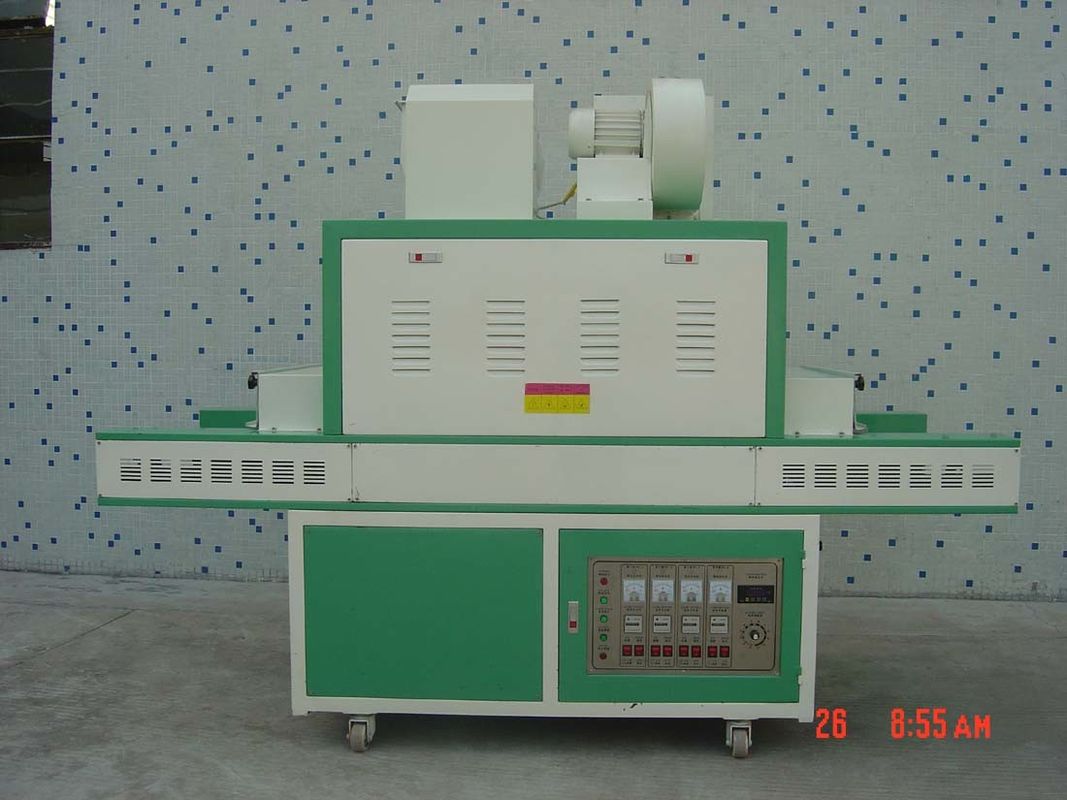

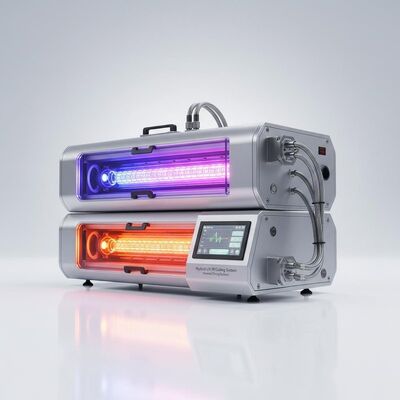

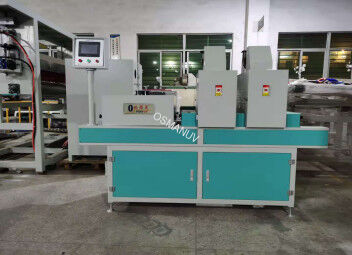

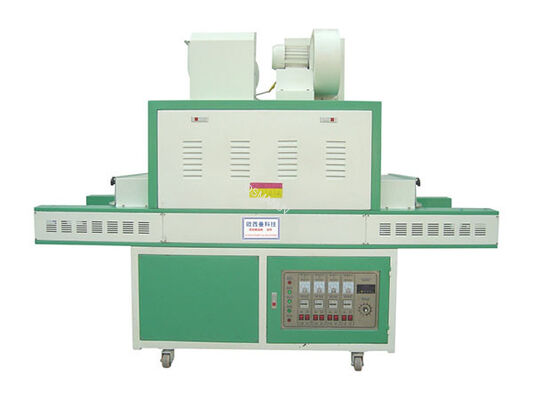

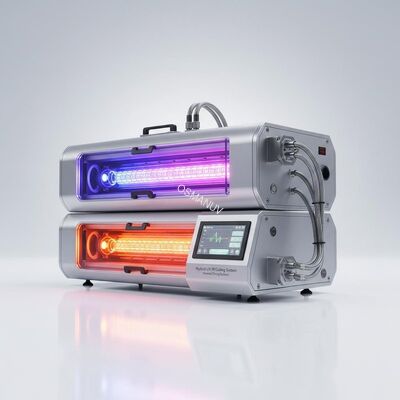

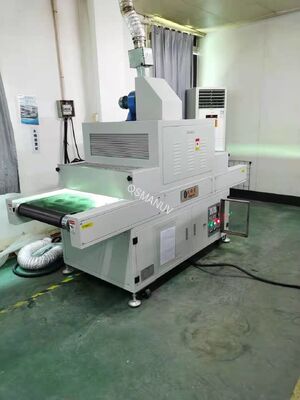

Hybrid UV/IR Curing System for Complex Coating Requirements - Versatile Drying Solution

Large Image : Hybrid UV/IR Curing System for Complex Coating Requirements - Versatile Drying Solution

Product Details:

Place of Origin:	China
Brand Name:	Osmanuv
Certification:	ISO9001
Model Number:	OSM-UV-620

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	30-45 Days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

Hybrid UV/IR Curing System for Complex Coating Requirements - Versatile Drying Solution

Description

Control System:	PLC	Coating Area:	Large Area
Overall Dimensions:	1900/1530/1410mm	Application:	Dry Surface Paint
Machinery Test Report:	Provided	Roller Type:	Stainless Steel Wire
Power Supply:	380V 50HZ	Dryer Type:	UV Drying
Highlight:	UV IR curing system for coatings , versatile UV curing machine , hybrid curing system with warranty

Hybrid UV/IR Curing System for Complex Coating Requirements - Versatile Drying Solution

Product Overview

This hybrid curing system combines IR and UV technologies to handle complex coating requirements on acrylic and PVC sheets, offering maximum process flexibility.

hybrid curing system UV IR combination complex coating drying versatile curing line customizable drying solution

Production Line Composition

IR pre-drying section, UV main curing unit, final IR post-curing zone, conveyor system, control cabinet

Technical Specifications

Parameter	Specification
UV Spectrum	320-420nm (customizable)
IR Temperature	50-180°C (adjustable)
Line Speed	3-20 m/min (customizable)
Total Power	50-300 kW (configurable)

Applications

Multi-layer coatings, special effect finishes, high-performance surfaces

Customization Options

Customizable UV/IR ratio, curing sequence, and process parameters

Key Features

Flexible process configuration
Optimal for difficult coatings
Energy-efficient operation
Intelligent control system

Support & Services

Process optimization, technical training, spare parts supply

Packaging & Shipping

Customized packaging, door-to-door delivery

Frequently Asked Questions

Q: Can we adjust the curing sequence?

A: Yes, the curing process is fully customizable.
