Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
pulp molding coating machine for straw fiber
,bio-based coating machine for bamboo products
,eco-centric pulp mold coating equipment

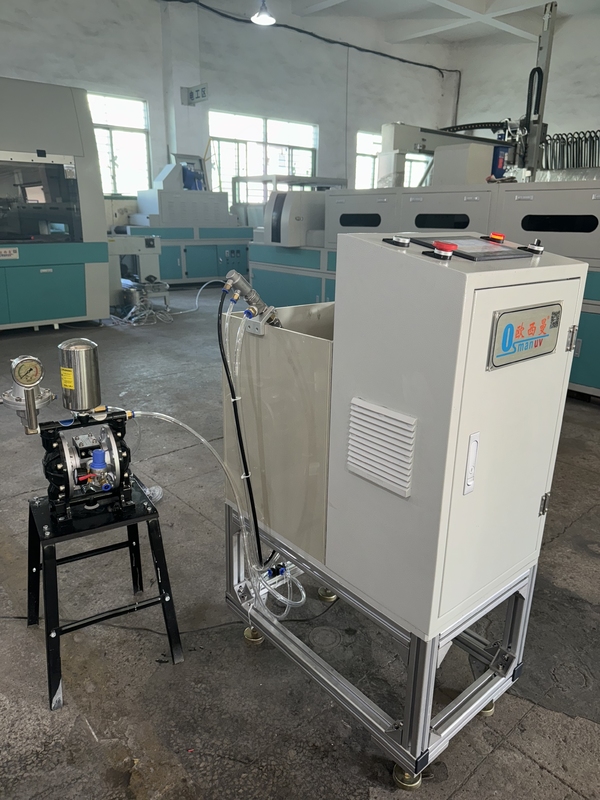

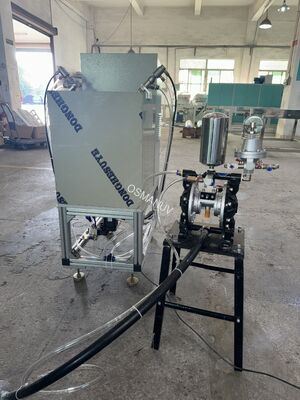

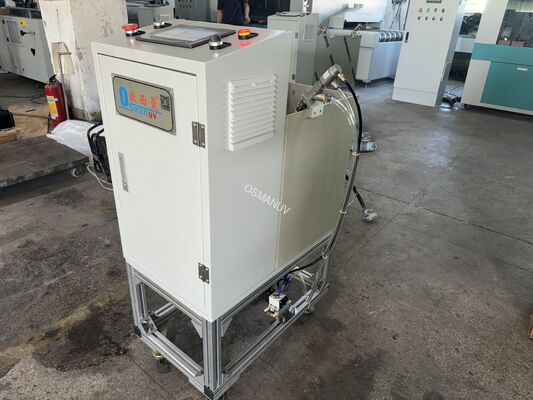

This eco-centric single-station coating machine is specifically designed for applying bio-based coatings to sustainable pulp molds from straw, bamboo, and sugarcane bagasse. It supports the production of 100% compostable and biodegradable packaging by ensuring an even, effective barrier layer without compromising environmental credentials. The system is highly customizable for various bio-coating viscosities and curing requirements.
| Parameter | Specification |
|---|---|
| Model | OSM-SXT-450T |
| Power Supply | 380V/50Hz |
| Power Consumption | 2.2 kW (Energy Efficient) |
| Heating Option | Customizable IR pre-drying module available |
| Coating Capacity | 100-400 pieces/hour |
| Rotation Speed Range | 50-1200 RPM (optimized for bio-coatings) |
| Control System | Microprocessor with simple interface |

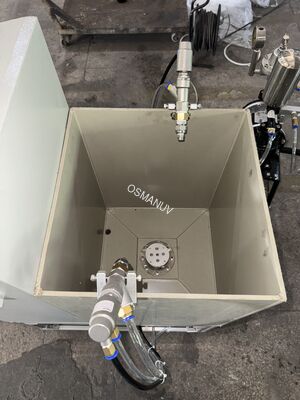

| Coating Reservoir | Easy-clean, corrosion-resistant tank |
| Dimensions (LxWxH) | 1400mm x 1200mm x 1500mm |
- Perfect for applying PLA or other bio-polymer coatings to straw and bamboo pulp-based products
- Coating for fully compostable sugarcane bagasse tableware requiring certified coatings
- Bio-Coating Optimized: Designed for the specific flow characteristics of bio-based coatings
- Easy Cleaning: Simplified design with minimal parts for quick and easy cleaning between batches
- Low Energy Consumption: Focuses on reducing the overall carbon footprint of the coating process
- GreenTech Compliance: Ideal for manufacturers aiming for BPI or OK Compost INDUSTRIAL certifications
Key customizable features include:
- Drying Integration: Can be customized with integrated IR or hot air modules for in-line pre-drying
- Material Compatibility: Adjustable parameters for different bio-coating types and viscosities
- Safety Features: Enhanced safety interlocks can be added as per request
Dedicated support for sustainable packaging producers, including assistance with coating selection and process optimization for bio-materials.
All components are packed with recyclable and biodegradable materials where possible, aligned with our commitment to sustainability.
-
