High-Speed Spin Coating Production Line for Pulp Mold Waterproofing, Oilproofing,Stickproofing | Tailored Configuration
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | CE |
| Model Number: | OSM-XT-1024T |
| Document: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Features: | High Efficiency, Easy Operation, Low Maintenance | Voltage: | 220V 50HZ |
|---|---|---|---|
| Safety Features: | Overheat Protection | Total Power: | 170kw |
| Plate Type: | Gravure Plate | Coating Material: | UV Coating |
| Inverter Brand: | Schneider | Station: | 24 Station |
| Highlight: | high-speed pulp molding coating machine,spin coating production line waterproofing,custom pulp molding coating equipment |
||
Product Description

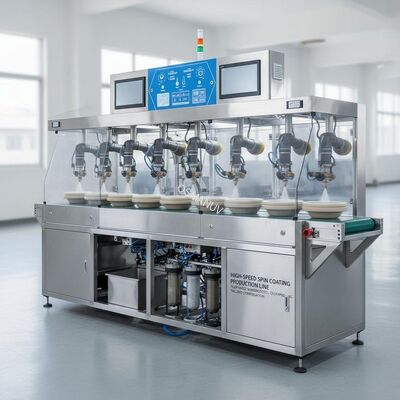

High-Speed Spin Coating Production Line for Pulp Mold Waterproofing, Oilproofing, Stickproofing | Tailored Configuration
Production Line Composition

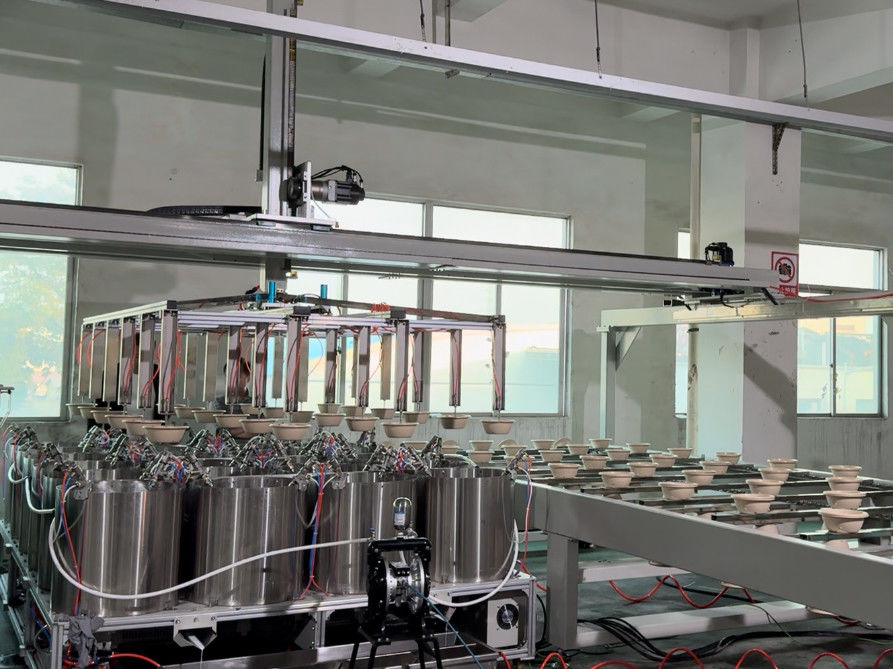

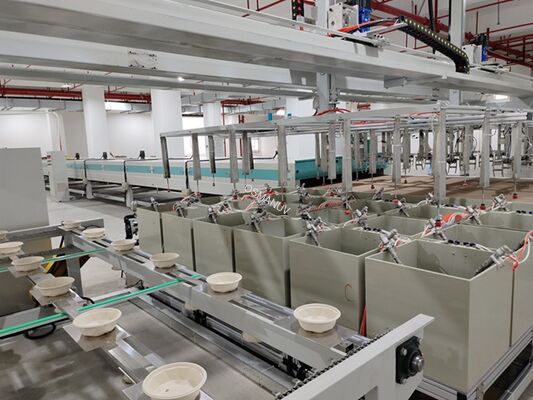

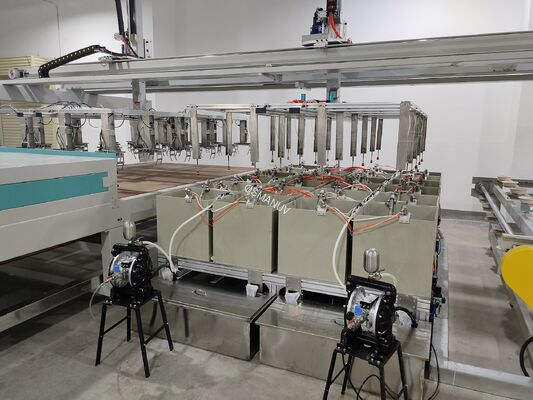

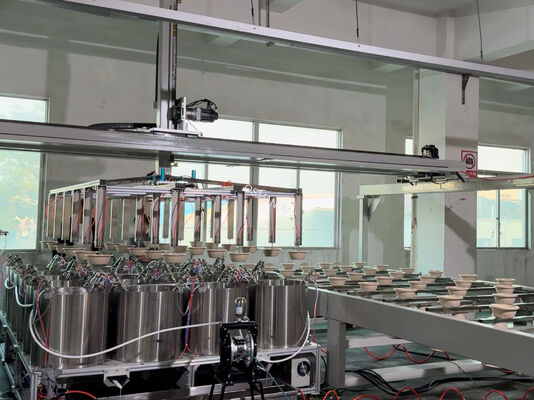

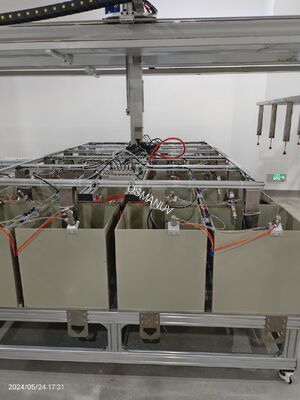

This advanced spin coating system features an automated feeding conveyor, precision rotary coating stations with servo-driven rotation, infrared pre-heating zone, high-speed spinning units, UV curing tunnel, quality inspection system, and automated stacking output. The line can be fully customized with additional coating layers or special drying requirements.
Product Description
Our high-speed spin coating production line specializes in applying perfect internal waterproof coatings for pulp molded products. Utilizing centrifugal force technology, it ensures uniform distribution of barrier coatings with precise thickness control, making it ideal for food packaging and liquid containers requiring exceptional leakage protection.
Technical Parameters
| Parameter | Specification | Notes |
|---|---|---|
| Model | HSC-800W | HSC-1200W | Custom sizes available |
| Production Speed | 40-60 pcs/min | 60-80 pcs/min | Adjustable based on product size |
| Coating Thickness | 10-100 μm | Precision control ±2 μm |
| Rotation Speed | 500-5000 RPM | Digital servo control |
| Curing Method | UV or Thermal | Customizable based on coating material |
| Power Requirements | 380V/50Hz/3Phase | Voltage customization available |
| Coating Waste | <3% | Closed-loop recycling system |
| Control System | Industrial PC + Touch屏 | Recipe storage for 100+ products |
| Air Pressure | 0.6-0.8 MPa | Built-in pressure stabilization |
Applications

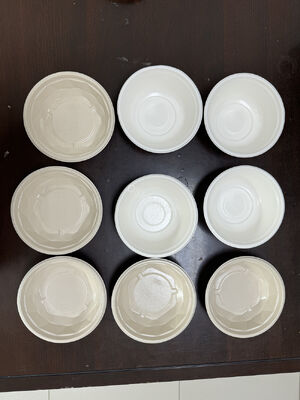

- Disposable food containers (soup bowls, takeaway boxes)
- Beverage cups and liquid packaging
- Medical and laboratory disposable products
- Flower pots and agricultural containers
- Electronic equipment packaging
Customization Options
We provide completely tailored solutions including:
- Customized coating thickness for specific waterproof requirements
- Additional coating layers for enhanced barrier properties
- Specialized curing systems for different coating materials
- Integration with existing production facilities
- Automated quality inspection and sorting systems
- Multi-language interface and control systems
Key Features
- Waterproof Excellence: Achieves IP67 rating for liquid protection
- High-Speed Operation: Maximizes production efficiency
- Energy Saving: 30% less energy consumption than conventional methods
- Quick Changeover: <5 minutes for product size changes
- Intelligent Monitoring: Real-time coating thickness detection
- Minimal Maintenance: Self-cleaning system reduces downtime
Support and Services
- Free sample testing and process development
- On-site installation and operator training
- 24-month warranty on main components
- Remote troubleshooting and maintenance support
- Regular software updates and technical improvements
- Spare parts supply guarantee
Packing and Shipping
- Heavy-duty export packaging with waterproof protection
- Customized crating for sensitive components
- Complete shipping documentation handled professionally
- Worldwide delivery with tracking information
- On-time delivery guarantee
Frequently Asked Questions
Q: What is the minimum waterproof standard you can achieve?
A: Our standard systems achieve IP67 protection, with higher levels available through customization.
Q: How do you handle different product shapes?
A: Our programmable rotation algorithms automatically adapt to various product geometries.
Q: Can the system handle plant-based waterproof coatings?
A: Yes, we have extensive experience with both synthetic and bio-based coating materials.
Q: What is your typical lead time for custom systems?
A: Usually 10-12 weeks after final design confirmation.
Q: Do you provide technical support for coating material selection?
A: Yes, we offer comprehensive material testing and recommendation services.
Q: How often does the system require maintenance?
A: Recommended quarterly preventive maintenance, with remote monitoring available.
Q: Can the line be upgraded after installation?
A: Yes, our modular design allows for future upgrades and capacity expansion.
