LED UV Curing System for Pulp Molding - Eco-Friendly & Cold Cure Solution

Large Image : LED UV Curing System for Pulp Molding - Eco-Friendly & Cold Cure Solution

Product Details:

Place of Origin:	CHINA
Brand Name:	OSMANUV
Certification:	ISO9001
Model Number:	OSM-UV-1320

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	WOOD PACKAGING
Delivery Time:	40 days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

LED UV Curing System for Pulp Molding - Eco-Friendly & Cold Cure Solution

Description

Product Name:	Three Lamp UV Curing Machine	Power Supply:	380V/50HZ
Condition:	New	Dimension(lwh):	Customized Size,230022301410MM
Warranty:	1 Year	Feeding Speed:	Adjustable, 5-20m/min
Coating Width:	Customizable,1320mm
Highlight:	LED UV curing system for pulp molding , eco-friendly UV curing machine , cold cure UV curing solution

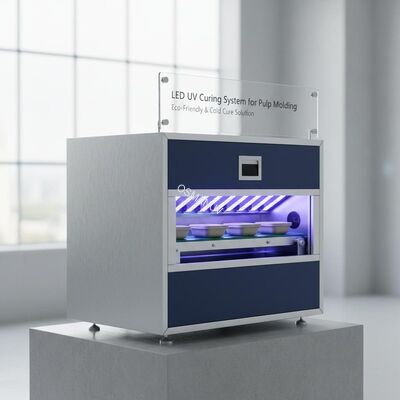

LED UV Curing System for Pulp Molding - Eco-Friendly & Cold Cure Solution

This advanced UV curing system utilizes the latest LED technology to provide an energy-efficient and environmentally friendly curing solution. It emits a precise wavelength of UV light, resulting in minimal heat generation ("cold cure"), drastically lower energy consumption, and zero ozone production. It is ideal for heat-sensitive pulp substrates and sustainable manufacturing initiatives.

Technical Parameters

Parameter Category	Specification	Notes
UV Source	LED Array	Wavelength customizable (365nm, 385nm, 395nm, 405nm)
Peak Irradiance	Up to 20 W/cm²	High intensity for fast curing
Lamp Life	> 20,000 hours	Massive reduction in maintenance and consumable costs
Power Consumption	~70% less than arc lamp	Drastically lowers operational costs (OPEX)
Curing Temperature	< 40°C (104°F)	"Cold Cure" prevents warping of delicate pulp products
Instant On/Off	Yes	No warm-up or cool-down, saves energy
Control System	PLC with Ethernet/IP	Energy monitoring dashboard

Application

Perfect for curing coatings on heat-sensitive and thin-walled pulp molded products, such as egg trays, premium packaging, and delicate consumer goods. Suits manufacturers aiming to reduce their carbon footprint and energy costs.

Customization

The system is highly customizable. The LED wavelength can be specified to match your photoinitiator package. The array size, shape, and irradiance can be scaled to your product's geometry and line speed.

Key Features

Ultra-Low Energy Use: consumes a fraction of the power of traditional arc lamp systems
Cold Cure Process: Eliminates thermal damage to delicate pulp substrates
Minimal Maintenance: No bulbs, reflectors, or shutters to replace for years
Sustainable Choice: No mercury and lower energy demand align with green manufacturing principles
Precision Curing: Targeted wavelength ensures efficient and consistent curing

Support and Services

Extended warranty on LED arrays, lifetime remote support, and detailed energy saving reports.

Packing and Shipping

The LED-UV module is shock-mounted and shipped in a custom foam-insulated crate to protect the sensitive optics. Clearly marked for easy installation.

Frequently Asked Questions

Q: Is LED-UV performance as good as traditional UV?

A: For coatings formulated with matching photoinitiators, yes. It provides a superior cold cure process. We can assist in customizing the solution, including coating recommendations.

Q: What is the total cost of ownership (TCO)?

A: While the initial investment may be higher, the TCO is significantly lower due to massive energy savings, zero lamp replacements, and reduced cooling needs.
