25KW 50HZ Durable Two Lamps UV Light Curing Machine Green And White
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-UV-1320Ⅱ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Two-lamp UV Dryer | Size: | L:1900mm × W:2230mm × H:1410mm |
|---|---|---|---|
| Color: | White And Green | Voltage: | 50 HZ |
| Power: | 25 KW | Feature: | This Machina Adpots UV Light.so That UV Coating Ink Fast Curing. |
| Effective Processing Size: | 1320mm | Speed: | 5-20 M/min |
| Highlight: | 50HZ UV Light Curing Machine,25KW UV Light Curing Machine |
||
Product Description

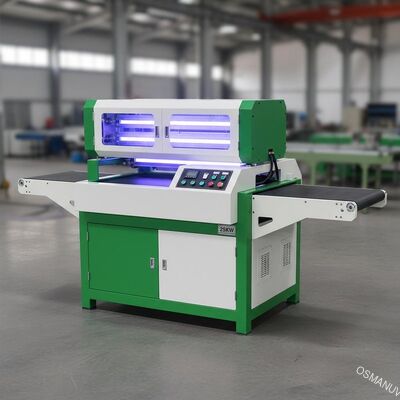

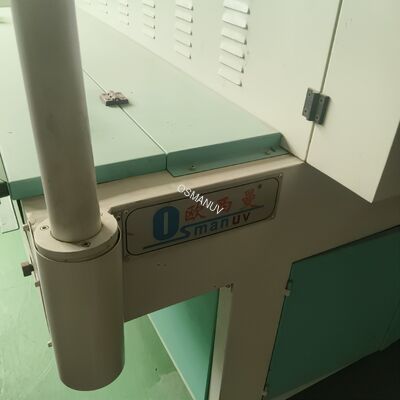

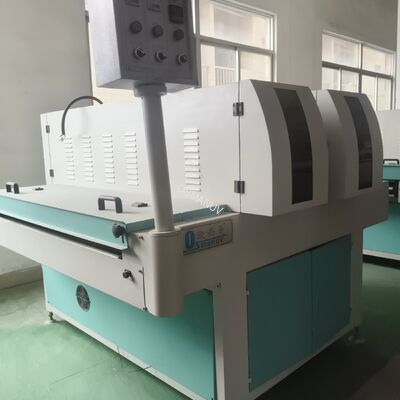

25KW 50HZ Durable Two Lamps UV Light Curing Machine Green And White
Description:
Introducing the UV Coating Curing Machine, a highly efficient, energy-saving, and environmentally friendly solution for curing UV coatings rapidly. This machine utilizes UV energy to achieve quick and effective curing, providing mechanized operations that significantly enhance production efficiency while remaining unaffected by external conditions. Its versatile application makes it suitable for drying and curing various materials such as wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.
Machine Specifications:
Mechanical Dimensions: 1800mm (L) x 2230mm (W) x 1680mm (H) (Actual size may vary)
Effective Processing Size:
Effective Width: 1320mm
Lamps:
2 imported lamps (synthetic mercury) designed for ultraviolet light curing of diverse products
Curing Speed: 5-20m/min
Power Supply Voltage: 380V 50HZ, three-phase five-wire system
Material:
Outer Shell: Cold-rolled plate with a thickness of 1.5mm, surface treated with liquid paint for wear and corrosion resistance
UV Section: Insulated with double-layer steel plates, effectively reducing cooling effects
Reflector:
Made of aluminum and integrated with imported alanod reflective lenses
Enhances UV reflection efficiency by 38%
Transmission System:
Stainless steel string rod transmission, resistant to high temperatures and UV exposure
1HP Taiwan Wanxin decelerating motor and Delta inverter control
Adjustable speed range: 1 to 15 meters per minute
Cooling System:
Forced air cooling with a split design chassis
Independent lamp group cooling channel for optimal heat dissipation
Light Source Control System:
Independent control for each lamp group with strong and weak light settings
Dimmable light intensity: 70% to 100%
LCD usage time recorder for each lamp, resettable to zero
Electrical Part:
OMRON relay, CHNT or Tianzheng contactor, Delta inverter
Taiwan Wanxin motor
CKC brand delay time components
Switches produced by Japanese Izumi company
All components comply with CE standards
Working Height:
Adjustable from 850-900mm (ground to conveyor belt height)
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer that owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines and make a video for you to watch the testing. Factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
