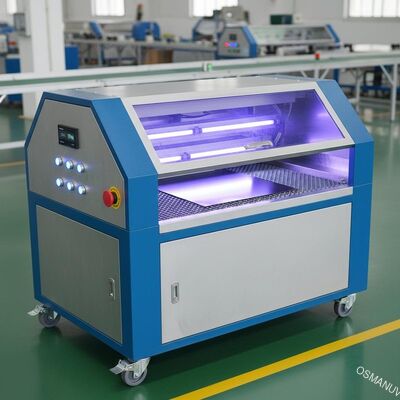

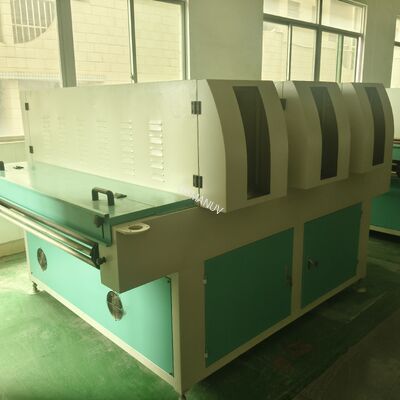

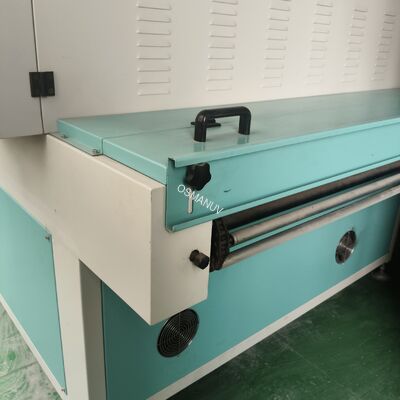

Energy Saving Three Lamps UV Curing Machine 5-20m Per Min Metal Sheet UV Led Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | osm-uv-1320Ⅲ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Three- Lamps UV Dryer | Color: | Computer White / Green |
|---|---|---|---|
| Feature: | UV Coating Can Be Cured In A Short Time | Supply Voltage: | 380V 50HZ |
| Thickness: | 2-80mm | Mechanical Dimension: | 2300 Mm Long X 2230 Mm Wide X 1410 Mm High |
| Effective Processive Size: | 1320 Mm | Speed: | 5-20 M/min |
| Highlight: | Energy Saving UV Curing Machine,Green UV Led Machine |
||
Product Description
Energy Saving Three Lamps UV Curing Machine 5-20m Per Min Metal Sheet UV Led Machine
Product Overview
This UV curing machine efficiently transfers UV light energy to cure UV coatings in minimal time, offering high efficiency, energy savings, and environmental friendliness. Mechanization significantly enhances production efficiency while remaining unaffected by external conditions. Widely used for drying and curing various materials including wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.
Technical Specifications
| 1 | Mechanical Dimensions | 2400mm long × 2230mm wide × 1680mm high (According to actual size) |
| 2 | Effective Processing Size | Effective width: 1320mm |
| 3 | Lamps | 3 imported lamps (synthetic iron mercury), suitable for ultraviolet light curing of various products. Speed: 5-20m/min |
| 4 | Material Construction | Outer shell made of 1.5mm thick cold-rolled plate with liquid paint surface treatment for wear and corrosion resistance. UV section insulated with double-layer steel plates to effectively reduce cooling effect |
| 5 | Lamp Details | 3 British PRIMARC 9.7KW 1387mm mercury lamps with adjustable height and angle in UV furnace, suitable for various product curing applications |
| 6 | Reflector System | Aluminum construction with integrally formed Alanod imported reflective lenses, increasing UV reflection efficiency by 38% |
| 7 | Cooling System | Forced air cooling with split-type chassis design. Light box features independent lamp group cooling channels for sufficient heat dissipation and optimal performance |
| 8 | Light Source Control | Independent control for each lamp group with strong/weak light settings (70%, 100% dimmable). Equipped with LCD usage time recorder to monitor lamp lifespan with reset capability |
| 9 | Electrical Components | OMRON relay, CHNT contactor, Delta frequency converter, Wanxin reducer, motor, CKC brand delay timer, Japanese Izumi company switches - all compliant with CE standards |
| 10 | Safety Devices | Leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses - all comply with international safety standards |
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I verify your machine quality?
A: We conduct sample trials on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production complies with GMP & ISO standards, and our products have passed CE certification for export.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
