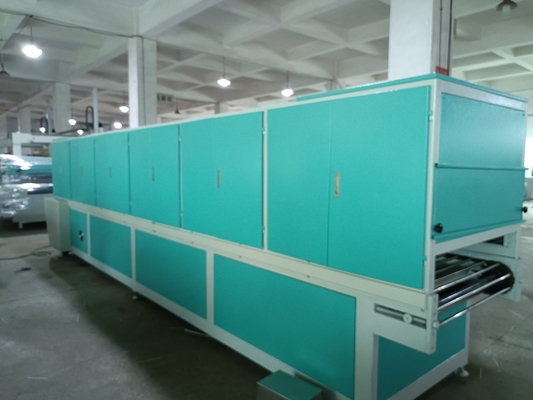

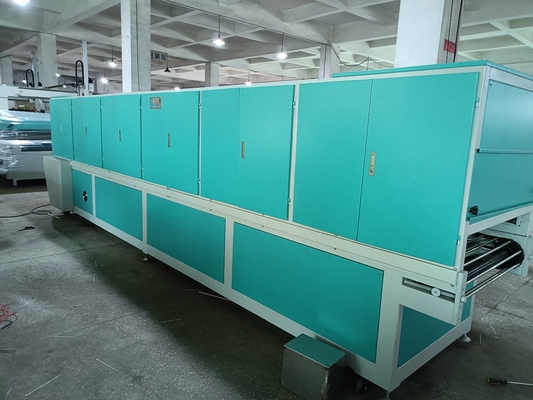

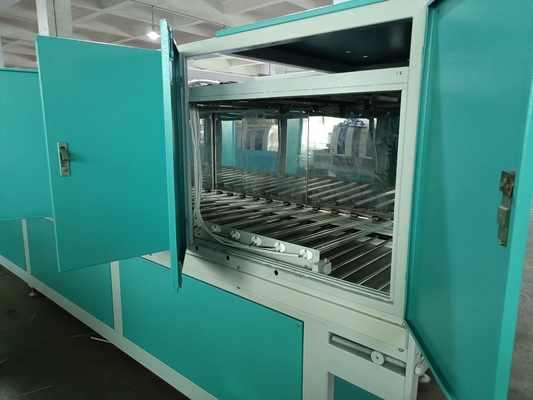

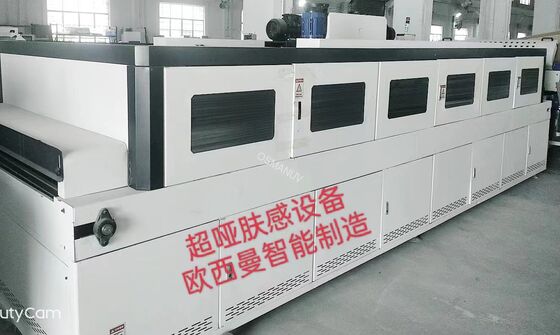

Microstructure Excimer Skin Sensing Equipment Optical Surface

Microstructure Excimer Skin Sensing Equipment Optical Surface

Product Details:

Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-ZFZ-1300FB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 30 work days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Cutting Thickness: Depends,0-20mm,1~25mm Cnc Or Not: Yes
Cooling Mode: Water Cooling Warranty: 1 Year
Cutting Area: 6000mm-8000mm×1650mm×1680mm Power Supply: 220V/50HZ
High Light:

Microstructure Excimer Skin Sensing Equipment

,

Excimer Skin Sensing Equipment

,

Optical Surface Uv Led Curing Equipment

Product Description

Excimer Skin Sensing Equipment,Treatment Of Excimer UV Optical Surface Microstructure-Introduction



准分子机参数(Parameters of the quasimolecular machine):

序号Number

名称

Name

参数

Parameter

1 UV-LED: 5kw(395nm)✖1支
2 准分子灯:Comolecular lamp: 320w 48支,有效发光:1300mm.
3 机器尺寸:Machine size:

6000mm-8000mm长×1650mm宽×1680mm高|(依实际尺寸为准)

6000mm-8000mm length 1650mm wide 1680mm height | (subject to actual size)

4 有效宽:Effective width:

有效宽:1300mm.

Valid width: 1,300 m m.

5 材质:material quality:

发热区外壳采用A3板制作而成,中间加保温棉保温.

The heating area shell is made of A3 board, and the insulation cotton is added in the middle.

6 输送带:conveyor:

采用不锈钢输送带传送.

Transfer with a stainless steel conveyor belt

7

传动系统:

Drive system:

传动马达采用台湾齿轮减速机

The transmission motor adopts the Taiwan gear gear reducer

8 控制系统:Navar:

采用台湾台达变频器,速度可调1-10米分钟,并有速度数字显示器.采用BKC温控器控制工作所需温度,温度:常温-80℃可调.

Using Taiwan Delta frequency converter, the speed can be adjusted for 1-10 meters minutes, and the speed digital display. Use the BKC thermostat to control the required working temperature, temperature: room temperature-80℃ adjustable.

9 电器部分:Electrical parts:

BKC温控器,CHNT接触器,台湾台达变频器,开关采用日本和泉开关等均符合国际标准之进口电器.

BKC thermostat, CHNT contactor, Taiwan Delta frequency converter, switch using Japan and spring switch and other imported electrical appliances in line with international standards.

10 安全系统:Security system:

超温防止器,马达过载保护,控制线路保险,紧急停止开关等……所有电器符合国际标准之一级产品.

Ultra-temperature protector, motor overload protection, control line insurance, emergency stop switch, etc......... All electrical appliances meet the international standard of class I products.

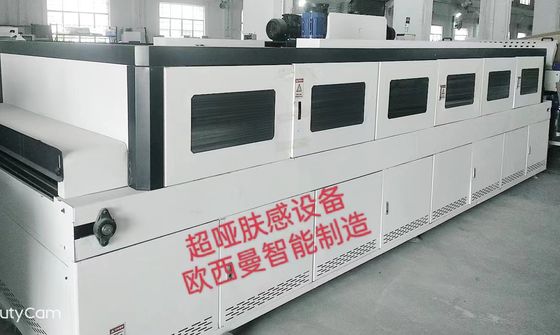

准分子UV光表面微结构处理--超哑设备介绍

Treatment of excimer UV optical surface microstructure-Introduction

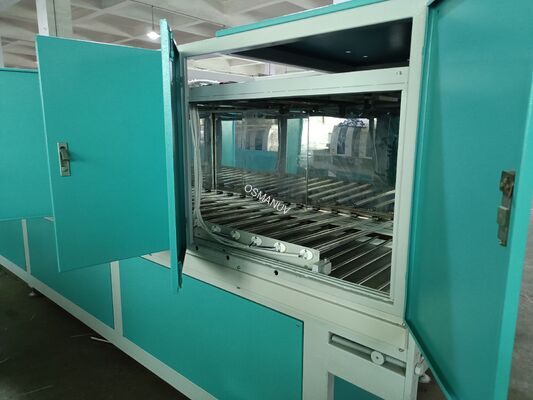

Microstructure Excimer Skin Sensing Equipment Optical Surface 0





Microstructure Excimer Skin Sensing Equipment Optical Surface 1

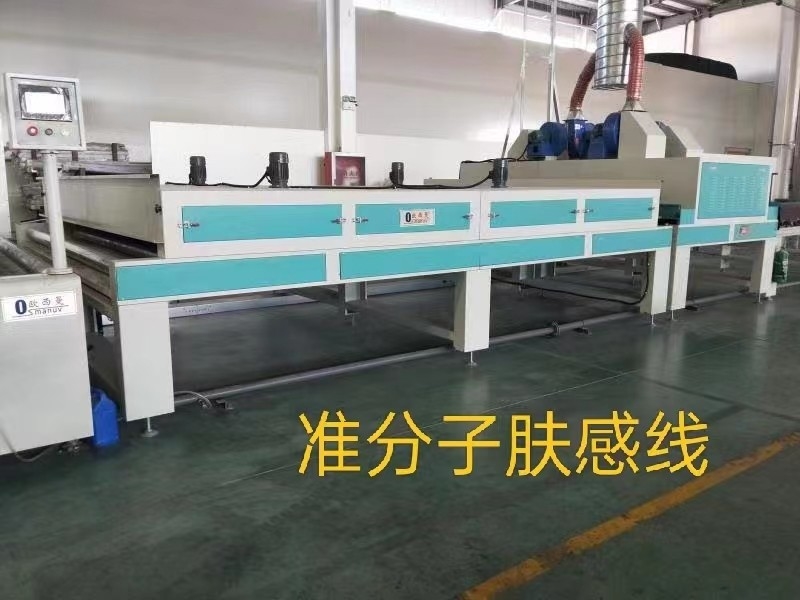

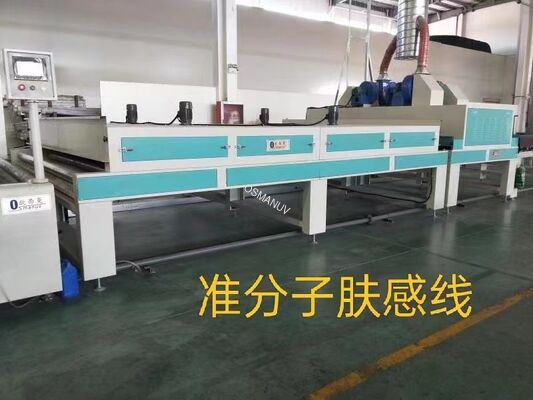

准分子设备

Quasi-molecular equipment



Microstructure Excimer Skin Sensing Equipment Optical Surface 2Microstructure Excimer Skin Sensing Equipment Optical Surface 3Microstructure Excimer Skin Sensing Equipment Optical Surface 3Microstructure Excimer Skin Sensing Equipment Optical Surface 0





准分子UV光 超哑技术的优势

Advantages of the excimer UV optical super-matte technology



Microstructure Excimer Skin Sensing Equipment Optical Surface 6





准分子UV光超哑技术与其他技术对比

Crucimer UV light is compared with other techniques



Microstructure Excimer Skin Sensing Equipment Optical Surface 7











图片仅供参考

Pictures for reference only
