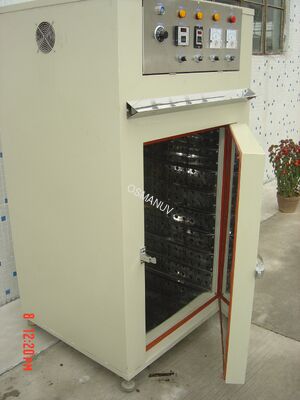

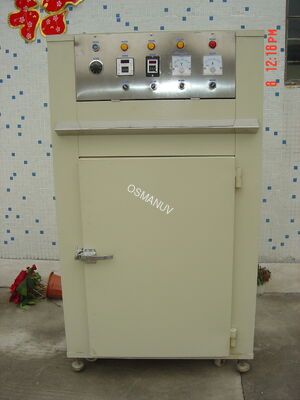

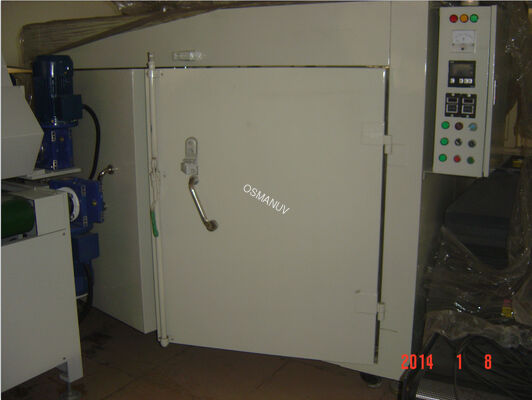

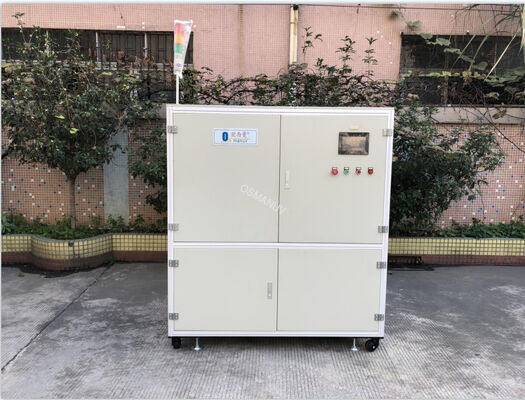

Alarm Industial Automatic Temperature Control Oven Door Buckle
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | GX-RK-23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T,Western Union |
|
Detail Information |
|||
| Product Named: | The Two-door Oven | Color: | Computer White / Green |
|---|---|---|---|
| Size: | 900 Mm X 1300 Mm X 1650mm | Voltage: | 380V 50HZ |
| Warranty: | 1 Year | Weight: | 900kg |
| Highlight: | 50HZ Temperature Control Oven,Constant Temperature Oven AC380V,Door Buckle Constant Temperature Oven |
||
Product Description
The hot air circulation system of the industrial oven is designed to improve air temperature uniformity. During the process of opening and closing the oven door for material transport, temperature values may fluctuate. The hot air circulation system facilitates rapid recovery to optimal working temperature conditions.
| Equipment Name | GX-RK-23 Precision Constant Temperature Oven |
|---|---|
| Power Supply | AC380V 50HZ |
| Internal Dimensions | 900mm (width) × 1300mm (depth) × 1650mm (height) 2 layers total Screen version: minimum width 790mm, maximum width 880mm |
| External Dimensions | 1400mm (width) × 1550mm (depth) × 1900mm (height) |
| Temperature Range | Room temperature to 150°C, adjustable Japanese OMRON E5AN automatic temperature controller Temperature uniformity: ±3% (empty furnace test) |

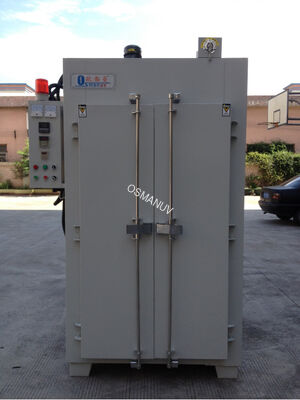

| Construction Features | Double door design with explosion-proof door buckle Temperature-resistant silicon glue assembly American-made durable buttons for safety Horizontal air intake for even baking across all mesh plate layers |
| Material Construction | SUS 304# mirror stainless steel 1.5mm cold rolled plate 5.0mm thickness bottom plate with high-temperature paint Computer white finish |
| Insulation | Advanced insulation cotton Six-sided insulation and heat relay 100mm insulation thickness Low surface temperature for energy efficiency |

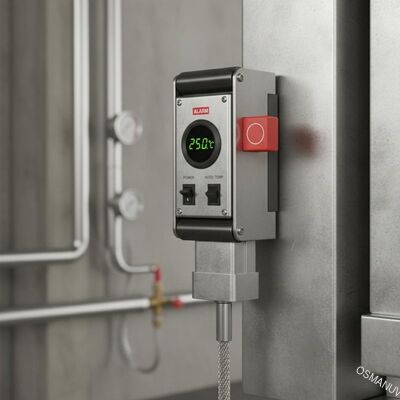

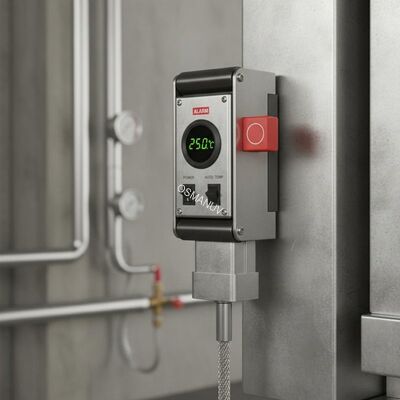

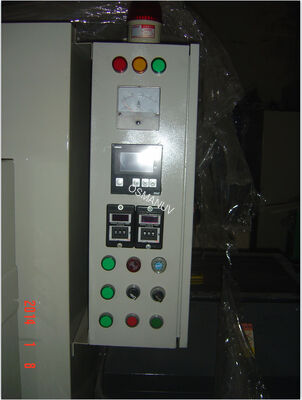

| Control System | Digital 999min timer with buzzer alarm and blinking light Automatic electric heating cutoff and continued ventilation when time expires Taiwan Yin-Ming brand solid state relay and temperature control head Over-temperature alarm protection |
| Air Supply System | Maintains furnace temperature between 20°C and 150°C Taiwan Dongyuan high-temperature hot air oven long shaft motor 1HP with 9-inch air blade |
| Safety Protection | Over-temperature protector Motor overload current protection Control line insurance Electric heating over-current protection No fuse switch All electrical accessories meet national first-grade product standards |
| Additional Features | Equipped with air inlet, air outlet 5M long power cord |
Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a professional manufacturer specializing in UV equipment, coating systems, infrared IR equipment, automation equipment, and environmental equipment. We implement whole plant export operations.
Our comprehensive product line is widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing, and numerous other industrial fields, earning consistent customer praise.
Since our establishment, we have maintained a modern strategy focused on "high-tech, high investment, high-quality, high-management" to provide optimal solutions and service excellence. We are committed to creating high-quality products through cooperation and contributing to a better future for all sectors of society.
Company Certification: ISO9001:2015 Quality Management System Certification
