380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven

380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven
380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven 380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven

Large Image :  380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven

Product Details:
Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: GX-RK-23
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T,Western Union
Contact Now

380V 50HZ Two Door Constant Temperature Oven , W1300Mm Blast Drying Oven

Description
Product Named: The Two-door Oven Color: Computer White / Green
Size: 900 Mm X 1300 Mm X 1650mm Voltage: 380V 50HZ
Warranty: 1 Year Weight: 900kg
Highlight:

380V constant temperature oven

,

W1300Mm constant temperature oven

,

380V blast drying oven

380V 50HZ Two Door Constant Temperature Oven, W1300mm Blast Drying Oven
Product Specifications
Equipment Name GX-RK-23 Precision Constant Temperature Oven
Power Supply AC380V 50HZ
Internal Dimensions 900mm (width) × 1300mm (depth) × 1650mm (height)
2 layers total
Screen version: 790mm (min width) - 880mm (max width)
External Dimensions 1400mm (width) × 1550mm (depth) × 1900mm (height)
Key Features
  • Temperature Range: Room temperature to 150°C (adjustable)
  • Temperature Controller: Japanese OMRON E5AN automatic temperature controller
  • Temperature Uniformity: ±3% (empty furnace test)
  • Double door design with explosion-proof door buckle
  • Temperature resistant silicon glue assembly for strong, compact construction
  • American-made buttons for durability and safety
  • Horizontal air intake for even baking across all mesh plate layers
  • Construction: SUS 304# mirror stainless steel, 1.5mm cold rolled plate
  • 5.0mm thick bottom plate with high temperature paint, computer white finish
  • Advanced insulation cotton with 100mm thickness on all six sides
  • Low surface temperature, energy efficient and environmentally friendly
  • Digital 999-minute timer with buzzer alarm and indicator light
  • Taiwan Yin-Ming brand solid state relay and temperature control head
  • Over-temperature alarm protection system
  • Air supply system maintains temperature between 20°C and 150°C
  • Taiwan Dongyuan high temperature hot air oven long shaft motor (1HP with 9-inch air blade)
  • Comprehensive safety protection: over-temperature protector, motor overload current protection, control line insurance, electric heating over-current protection, no fuse switch
  • Equipped with air inlet, air outlet, and 5M power cord
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
Product Images

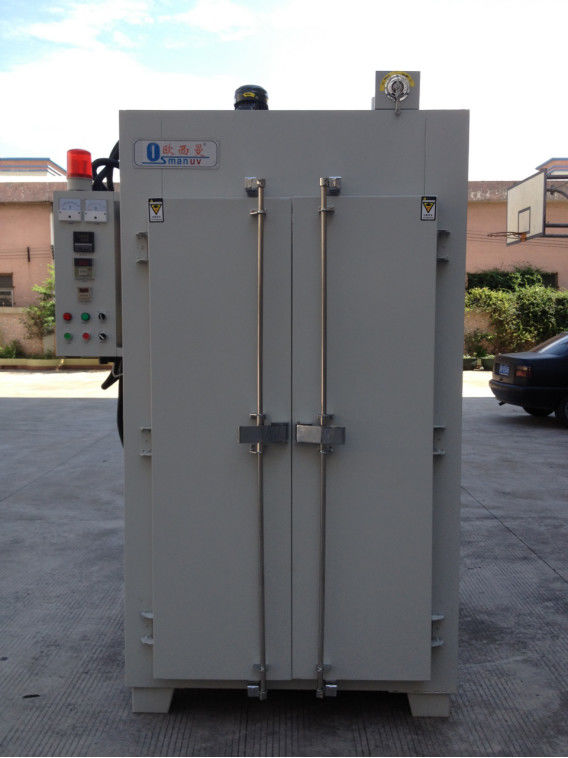

GX-RK-23 Precision Constant Temperature Oven front view
GX-RK-23 Precision Constant Temperature Oven side view

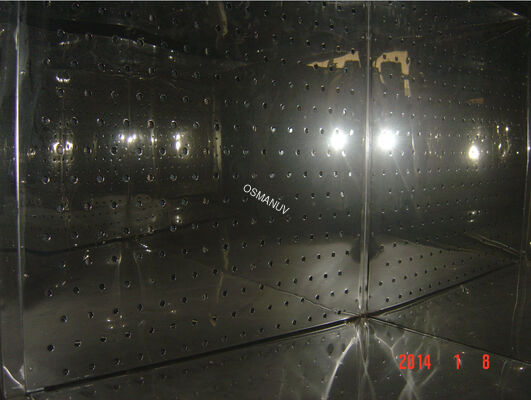

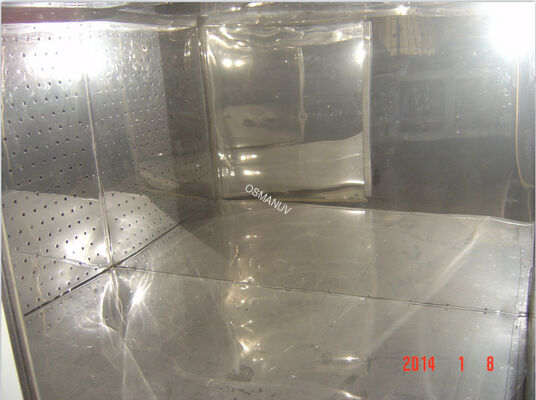

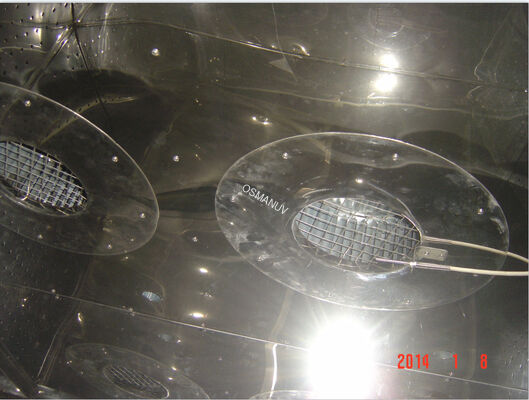

GX-RK-23 Precision Constant Temperature Oven interior view

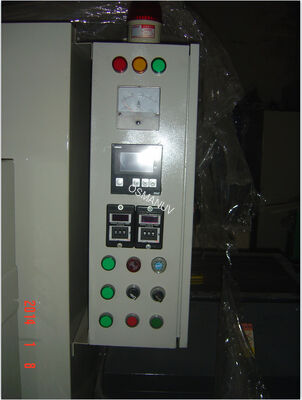

GX-RK-23 Precision Constant Temperature Oven control panel

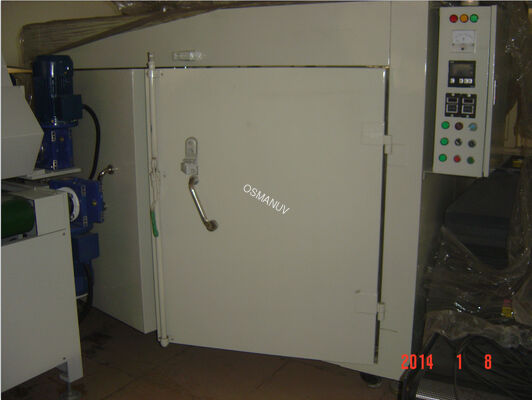

GX-RK-23 Precision Constant Temperature Oven door mechanism
GX-RK-23 Precision Constant Temperature Oven overall view
