380V Constant Temperature Oven , l900mm Industrial Drying Oven
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | GX-RK-21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T,Western Union |
|
Detail Information |
|||
| Product Named: | Single Side Oven | Color: | Computer White / Green |
|---|---|---|---|
| Size: | 900 Mm X 1300 Mm X 1650mm | Voltage: | 380V 50HZ |
| Warranty: | 1 Year | Weight: | 900kg |
| Highlight: | 380V Constant Temperature Oven,L900mm Industrial Drying Oven,380V Industrial Drying Oven |
||
Product Description
380V Constant Temperature Oven, 900mm Industrial Drying Oven
Product Specifications
| Equipment Name | GX-RK-21 Precision Constant Temperature Oven |
|---|---|
| Power Supply | AC380V 50HZ |
| Internal Dimensions | 900mm (width) × 1300mm (depth) × 1650mm (height) 2 layers total Screen version: 790mm (min width) - 880mm (max width) |
| External Dimensions | 1400mm (width) × 1550mm (depth) × 1900mm (height) |
| Temperature Range | Room temperature to 150°C Japanese OMRON E5AN automatic temperature controller Temperature uniformity: ±3% (empty furnace test) |
Design Features
- Double door design with explosion-proof door buckle
- Temperature resistant silicon glue forced assembly
- American-made buttons for durability and safety
- Horizontal air intake for even baking across all mesh plate layers
- SUS 304# mirror stainless steel construction
- 1.5mm cold rolled plate with 5.0mm thick bottom plate
- High temperature paint welding with computer white finish
Technical Specifications
- Advanced insulation cotton with 100mm thickness
- Six-sided insulation and heat relay system
- Digital 999-minute timer with buzzer alarm and indicator light
- Taiwan Yin-Ming brand solid state relay and temperature control head
- Over temperature alarm protection
- Air supply system maintains temperature between 20°C and 150°C
- Taiwan Dongyuan high temperature hot air oven long shaft motor (1HP with 9-inch air blade)
Safety Features
- Over temperature protector
- Motor overload current protection
- Control line insurance
- Electric heating over current protection
- No fuse switch
- All electrical accessories meet national first-grade product standards
- Equipped with air inlet, air outlet, and 5M power cord
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our products are manufactured according to GMP & ISO standards and have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.

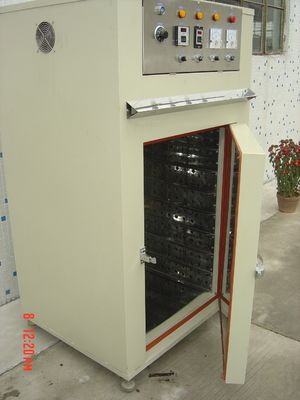

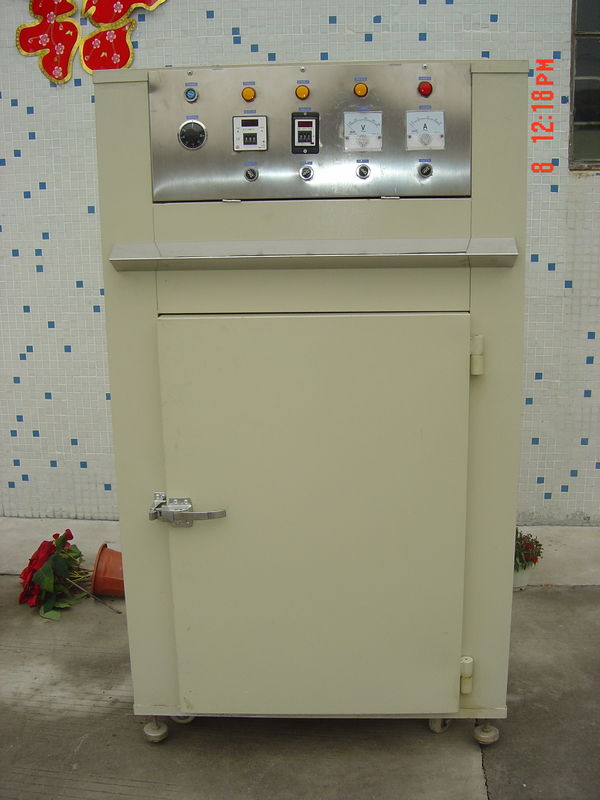

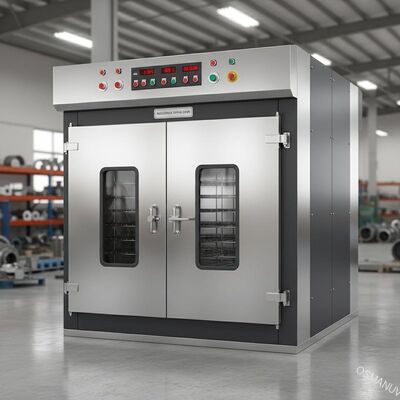

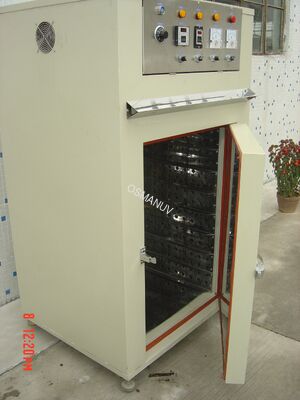

Product Images
