ISO9001 150Celsius Constant Temperature Oven / Electric Drying Oven
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-JRKX-(300~2000)DZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 20 WORK DAYS |
| Payment Terms: | T/T,Western Union |
|
Detail Information |
|||
| Product Name: | Constant Temperature Oven | Power: | 380V/ 50Hz |
|---|---|---|---|
| Colour: | Computer White | Light Tube: | IR Quartz Tube |
| Warranty: | 1 Year | Installation: | On-site Installation |
| Highlight: | ISO9001 Constant Temperature Oven,ISO9001 Electric Drying Oven,150Celsius Constant Temperature Oven |
||
Product Description
ISO9001 150°C Constant Temperature Oven / Electric Drying Oven
Product Specifications
| Equipment Name | OSM-JRKX-(300~2000)DZ Precision Constant Temperature Oven |
| Power Supply | AC380V 50HZ |
| Internal Dimensions | 900mm (width) × 1300mm (depth) × 1650mm (height) 2 layers total Screen version: 790mm (min width) - 880mm (max width) |
| External Dimensions | 1400mm (width) × 1550mm (depth) × 1900mm (height) |
Key Features
- Temperature range: Room temperature to 150°C with Japanese OMRON E5AN automatic temperature controller
- Temperature uniformity: ±3% (empty furnace test)
- Double door design with explosion-proof door buckle and temperature-resistant silicon glue assembly
- Horizontal air intake system for even baking across all mesh plate layers
- Construction: SUS 304# mirror stainless steel, 1.5mm cold rolled plate, 5.0mm thick bottom plate with high-temperature paint
- Advanced insulation cotton with 100mm thickness for energy efficiency and low surface temperature
- Digital 999-minute timer with buzzer alarm and indicator light
- Taiwan Yin-Ming brand solid state relay and temperature control head with over-temperature alarm protection
- Air supply system maintains temperature between 20°C and 150°C
- Taiwan Dongyuan high-temperature hot air oven long shaft motor, 1HP with 9-inch air blade
- Comprehensive safety protection systems including over-temperature protector, motor overload protection, and electrical safety features
- Equipped with air inlet, air outlet, and 5-meter power cord

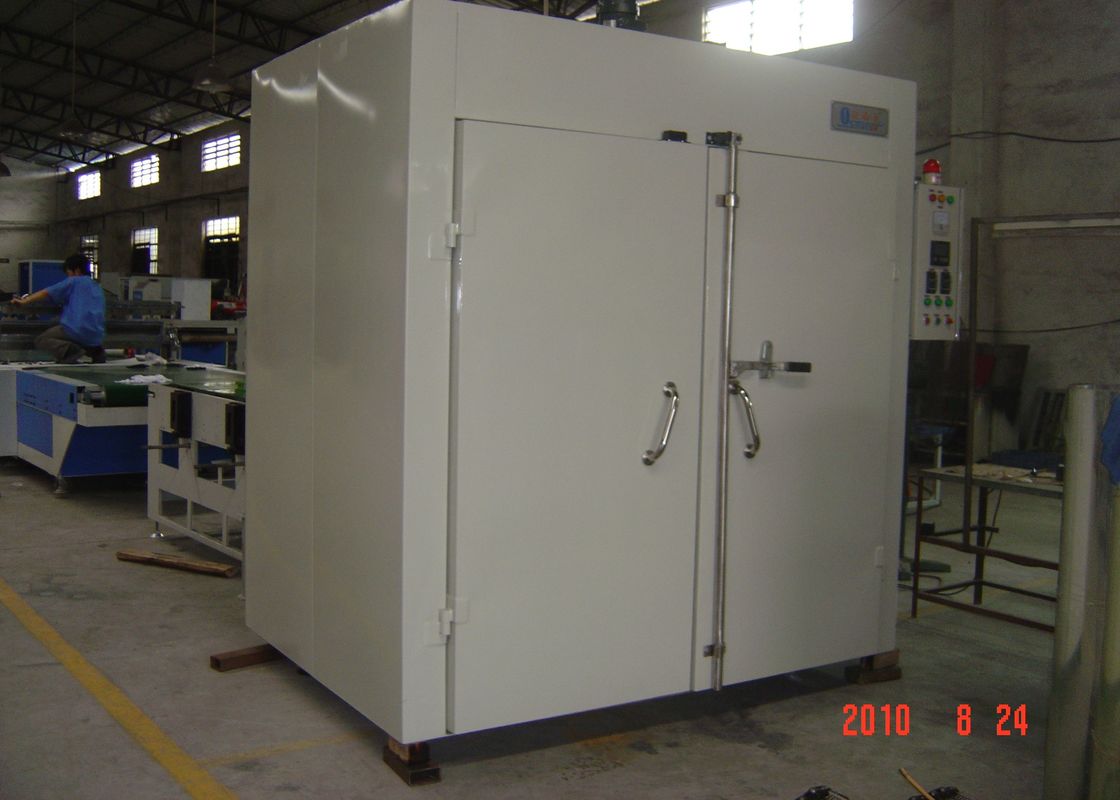

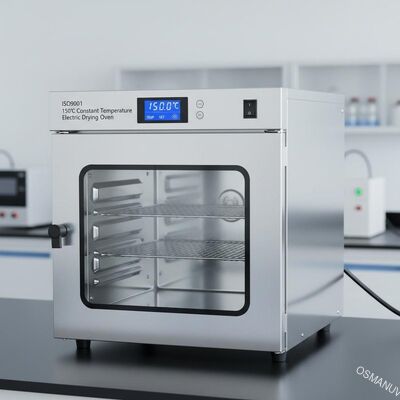

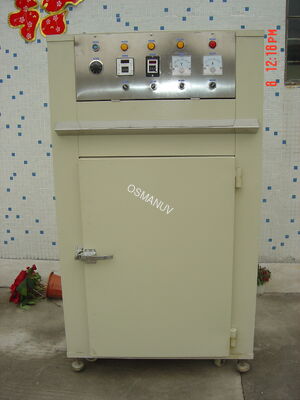

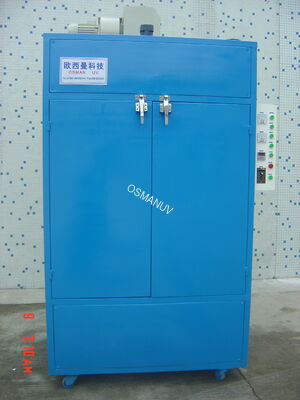

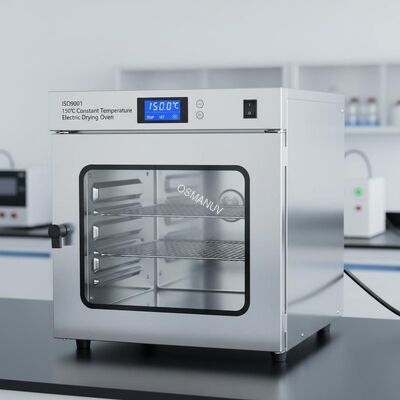

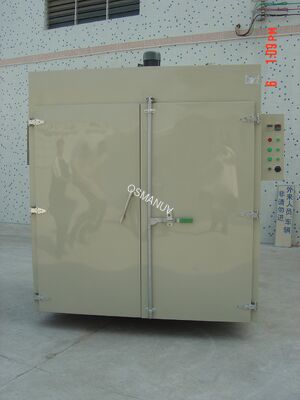

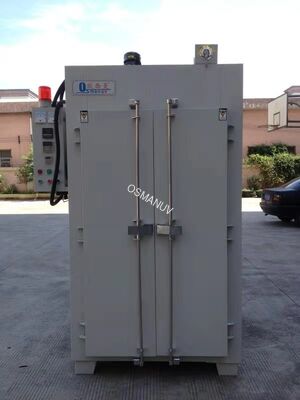

Product Images
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing with video documentation, factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Fully compliant with GMP & ISO standards with CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
