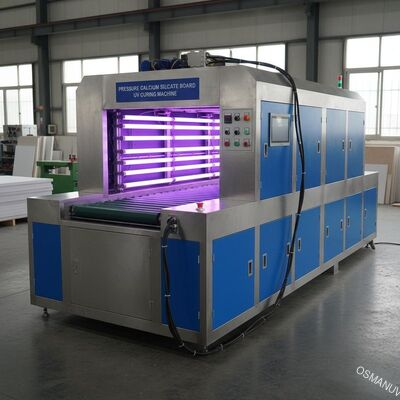

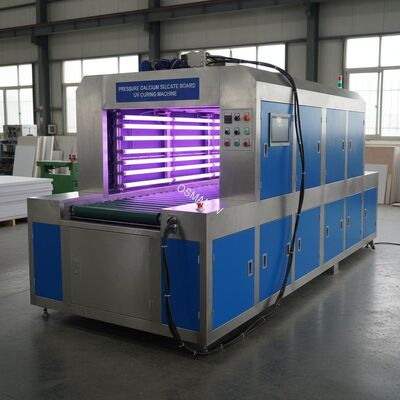

Pressure Calcium Silicate Board UV Curing Machine 410V 50HZ Supply Voltage
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-FY-1300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | UV Film Pressure Curing Machine | Size: | L:4000mm×W:2340mm×H:1850mm |
|---|---|---|---|
| Supply Voltage: | 360-410V 50HZ | Speed: | 3-10m/min |

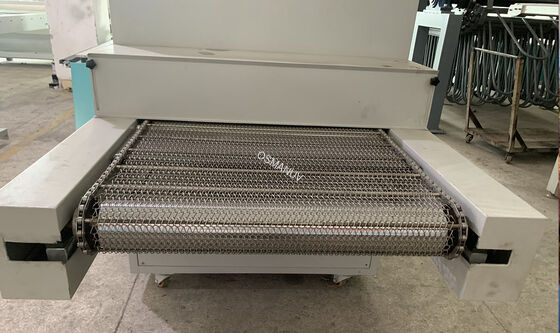

| Color: | Computer White / Green | Transmission Mode: | Roller And Belt For Transmission, Smooth Transmission And Long Service Life |
| Highlight: | 10m/min Speed UV Curing Machine,410V UV Curing Machine,CaSiO3 Board UV Curing Equipment |
||
Product Description
Pressure Calcium Silicate Board UV Curing Machine 410V 50HZ Supply Voltage
1.UV Curing Machine Description:
| 1 | Features: | Suitable for coating PC, acrylic, plastic, ceramic, calcium silicate board, metal and other planes with transparent UV varnish to make the surface coating of the board flatter and smoother. |
| 2 | Mechanical dimensions: |
4000mm long × 2340mm wide × 1850mm high. (According to the actual size). |
| 3 | Effective working size: | a, effective width: 1300mm; b, thickness: 2-80mmc, length (shortest): 250mm. |
| 4 | Power supply voltage | 360-410V 50HZ. |
| 5 | Material: | The shell is made by bending and welding 1.5mm cold-rolled plates, the surface is treated with liquid paint, the frame is made of 63*30mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material). |

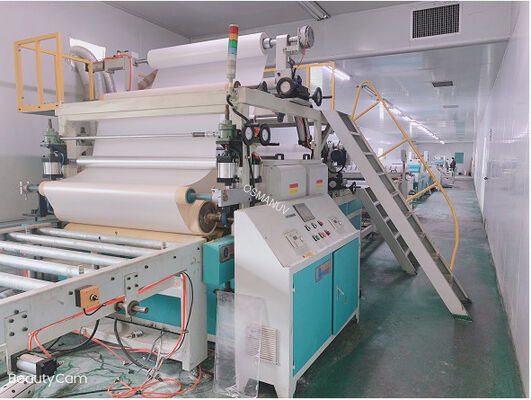

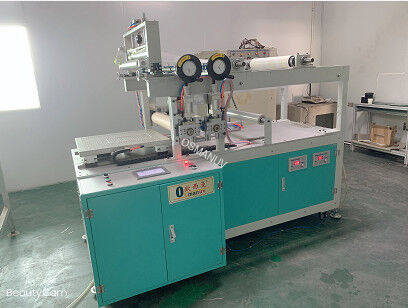

| 6 | Laminating part | Double rollers are used to squeeze at the same time, so that the transfer film is evenly attached to the substrate, and the automatic entanglement device is used to prevent the film from wrinkling. |
| 7 | Laminated rubber roller: diameter: | ￠80mm, length: 1400mm, made of high-quality Japanese rubber, wear-resistant, good elasticity, hardness can be customized according to customer requirements (between 30 degrees-50 degrees), and can withstand various solvents It adopts high-quality coupling transmission, the bearing adopts NSK bearing, and Taiwan Delta servo controller controls the speed of the rubber roller. |
| 8 | UV part: | Two sets of independent light boxes are used, equipped with 2 British PRIMARC mercury lamps, and the height and angle of the tube can be adjusted. |
| 9 | UV lampshade: | using professional reflective material (German alanod reflector) to reflect ultraviolet light, durable and greatly improve the use rate of ultraviolet light (more than 30%). |

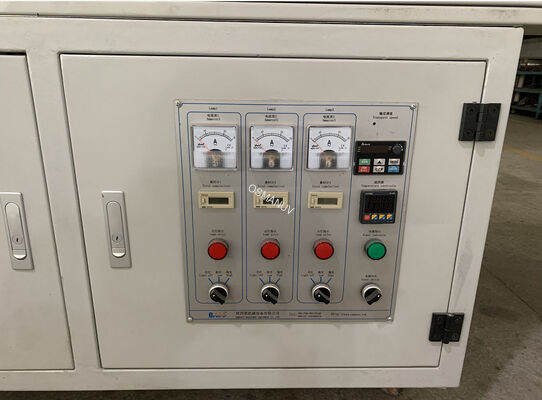

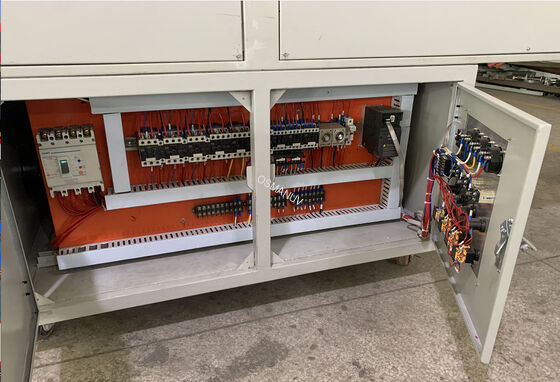

| 10 | Control system: |
a. The lamp has an independent control system, and has strong and weak light conversion. The light intensity is divided into 75% and 100% adjustable. b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero. |
| 11 | Conveying speed: | 3-10m/min. |
| 12 | Working height: | 0～850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator. |
2.FAQ:
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
